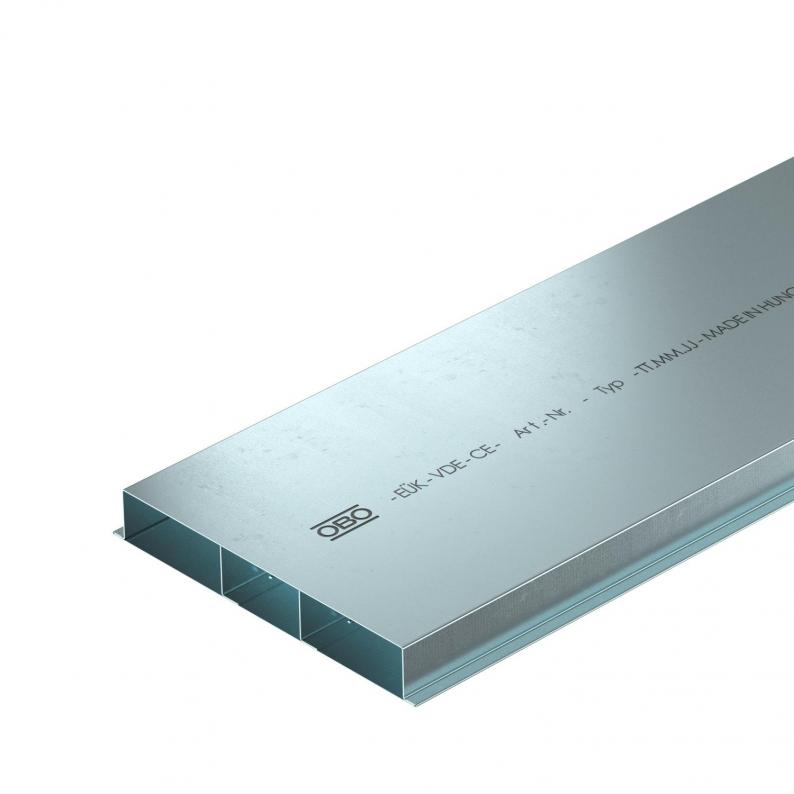

Underfloor installation duct, 3-compartment, trunking height 38 mm
Type S3 25038 | Item no. 7400328 | EAN 4012195089346
Item no. / Type
Length
Width
Number of compartments
This item is a discontinued product!
Smallest selling unit: 2 m
2m
Description
Underfloor installation duct for laying cables under the floor.
Technical data

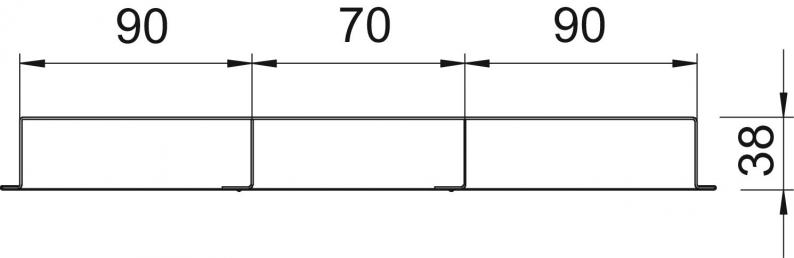

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 250 mm |
| Height | 38 mm |
| Dimension b | 70 mm |
| Dimension a | 90 mm |
| Dimension h | 38 mm |
Technical data
| Usable cross-section | 8820 mm² |
|---|---|
| Number of compartments | 3 St. |
| Number of fixed partitions | 2 |
| Cross-section, draw a | 3168 mm² |
| Cross-section, draw b | 2484 mm² |
| Decouplable | no |
| Floor plate | yes |
| Application area | Screed-covered |
| Removable cover | no |
| Duct height, min. | 38 mm |
| Dimension | 2000x250x38 |
| Surface | Strip galvanized |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 9,845 kg CO₂e / 1 Meter |
Downloads
0 selected
Data sheet (1)
Declarations (4)
Certificates (1)
Instructions and Aid (1)
Product images (4)
3D data downloads (2)
Tender specifications (2)
Accessories
System accessories
Article
Type
Item no.
Amount
Item no. 7400648
Vertical bend, three-compartment, height 38 mmType
KV3 25038
Smallest selling unit: 1 piece
1piece
Variants
Type
Length
Width
Number of compartments
Item no.
S3 25038
2000
250
3
7400328
S3 35038
2000
350
3
7400340
