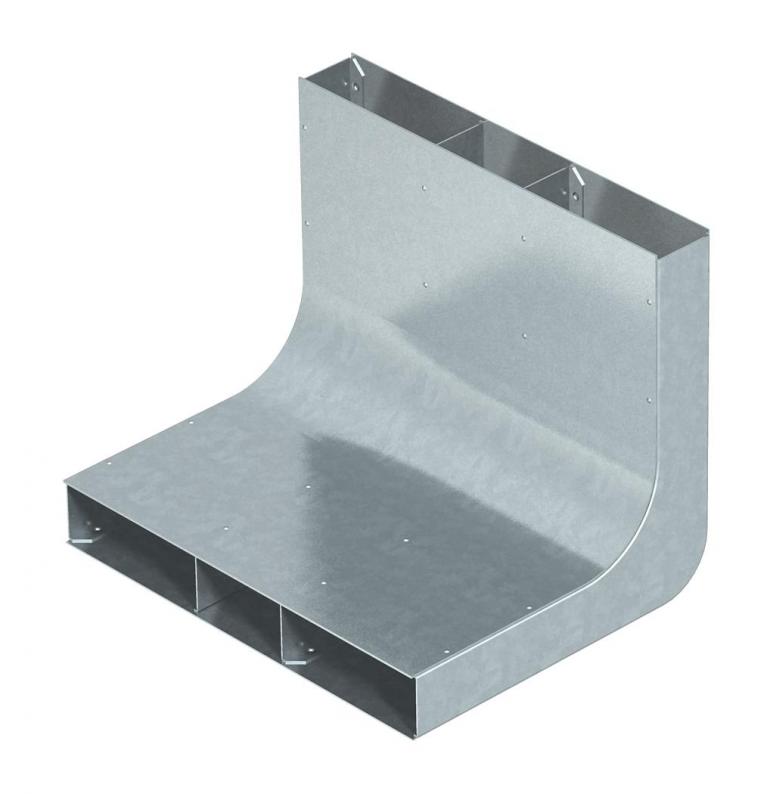

Vertical bend, three-compartment, height 38 mm
Type KV3 25038 | Item no. 7400648 | EAN 4012195090410
Item no. / Type
Width
Number of compartments
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description
For vertical direction changes of screed-covered underfloor installation ducts (wall connections, supplies).
An important precondition for correct underfloor installation is the screed structure.
In the case of a screed-covered system, it is important that the screed thickness of the duct is at least 35 mm, to avoid the formation of cracks (DIN 18560).
Screed height: 60 mm only for on-floor connection technology (Telitank), 70 mm or more for underfloor connection technology.
Technical data
Dimensions
| Length | 200 mm |
|---|---|
| Width | 250 mm |
| Height | 38 mm |
| Dimension b | 70 mm |
| Dimension a | 90 mm |
| Dimension h | 38 mm |
Technical data
| Number of compartments | 3 St. |
|---|---|
| Number of fixed partitions | 2 |
| Cross-section, draw a | 3168 mm² |
| Cross-section, draw b | 2484 mm² |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, min. | 250 mm |
| Duct height, min. | 38 mm |
| Surface | Strip galvanized |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Declarations (4)
Certificates (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Type
Width
Number of compartments
Item no.
KV3 25038
250
3
7400648
KV3 35038
350
3
7400660
Width
KV3 25038
Item no.
7400648
Width
250
Number of compartments
3
KV3 35038
Item no.
7400660
Width
350
Number of compartments
3
