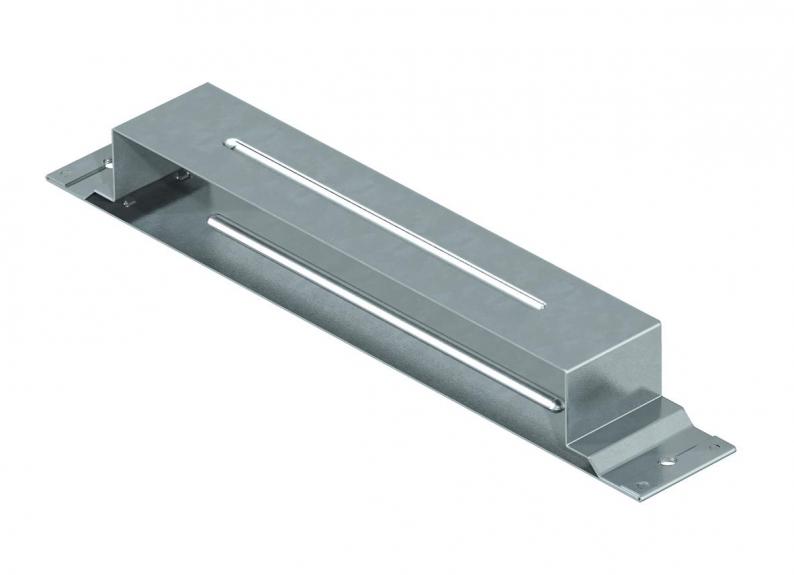

Connection shackle, height 38 mm

Connection shackle, height 38 mm

Type VL 25038E | Item no. 7400968 | EAN 4012195432944

Show all variants
Item no. / Type
Width
Duct height, min.

This item is a discontinued product!

You can find the successor product here.

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Duct connectors for conductive mounting of screed-covered underfloor installation duct.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • gas-/battery-actuated setting tool

Technical data

Dimensions

Width250 mm
Height38 mm
Dimension a250 mm
Dimension h38 mm

Technical data

Seal installation optionno
Floor plateyes
With equipotential bondingyes
Suitable for expansion jointyes
Version forStrap
Duct height, min.38 mm
Dimension50x250x38
SurfaceStrip galvanized
MaterialSteel

Downloads

0 selected

Data sheet (1)
Declarations (4)
Certificates (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

Width
VL 19038E
Item no.
7400962
Width
190
Duct height, min.
38
VL 25038E
Item no.
7400968
Width
250
Duct height, min.
38
VL 35038E
Item no.
7400974
Width
350
Duct height, min.
38
