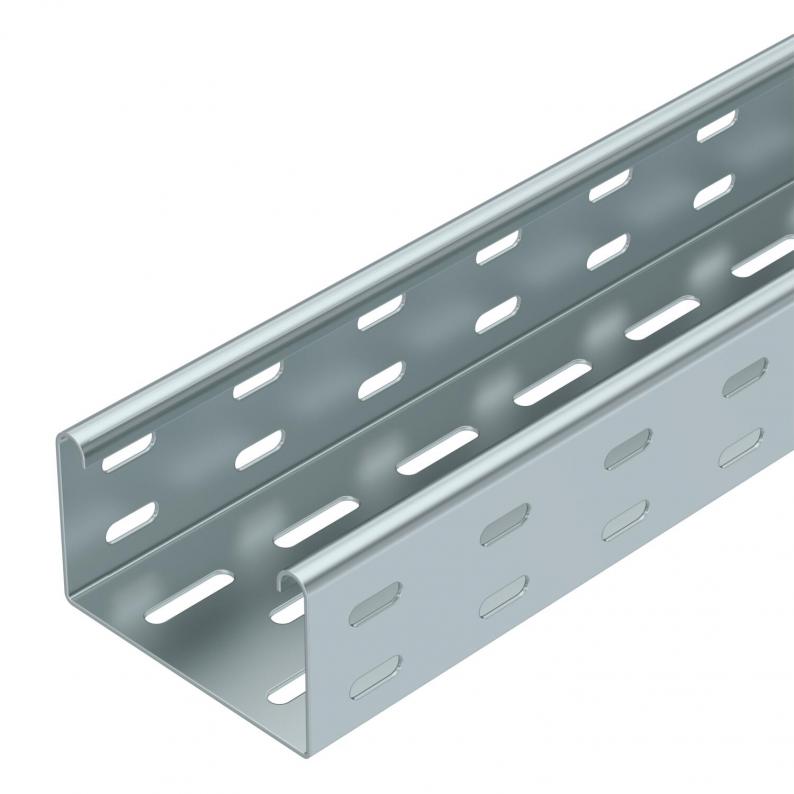

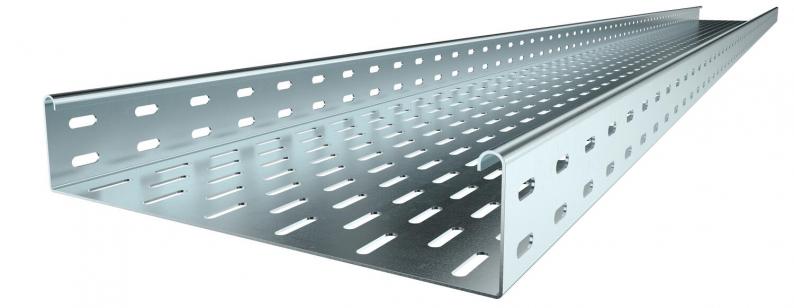

Cable tray SKS 60 FS

Cable tray SKS 60 FS

Type SKS 610 FS | Item no. 6056105 | EAN 4012196060191

Show all variants
Item no. / Type
Length
Width
Maintain electrical functions
Plate thickness
Surface
Strip galvanized
Material
Steel

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

SKS 60 = heavy-duty cable tray system with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

The cable tray, type SKS, should also be used for the maintenance of electrical function. For additional data, please refer to BSS fire protection systems.

  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length3000 mm
Width100 mm
Height60 mm
Dimension B100 mm
Maß W100 mm

Technical data

Maintain electrical functionsyes
Side perforationyes
Connector versionSupplied connectors
Wide-span versionno
Usable cross-section58 cm²
Rustproof steel, pickledno
Plate thickness1,5 mm
Mounting perforation in baseyes
NATO hole patternno
Usable cross-section5800 mm²
With coverno
Dimension60 x 100
Base perforation7 x 32
Dimension60x100x3000
SurfaceStrip galvanized
MaterialSteel
Colourzinc
Fire protectionMaintenance of electrical function of standard support structure
Load test type according to IEC 61537Type II
Type of connector, cable support systemScrewed
CO2 Footprint (GWP) Cradle-to-Gate6,6327 kg CO2e / 1 Meter

Loads

Support spacing 2.0 m1,8 kN/m
Support spacing 2.5 m1,15 kN/m
Support spacing 3.0 m0,5 kN/m
Support spacing 1.5 m2,65 kN/m
Load diagram, cable tray, type SKS 60

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width
