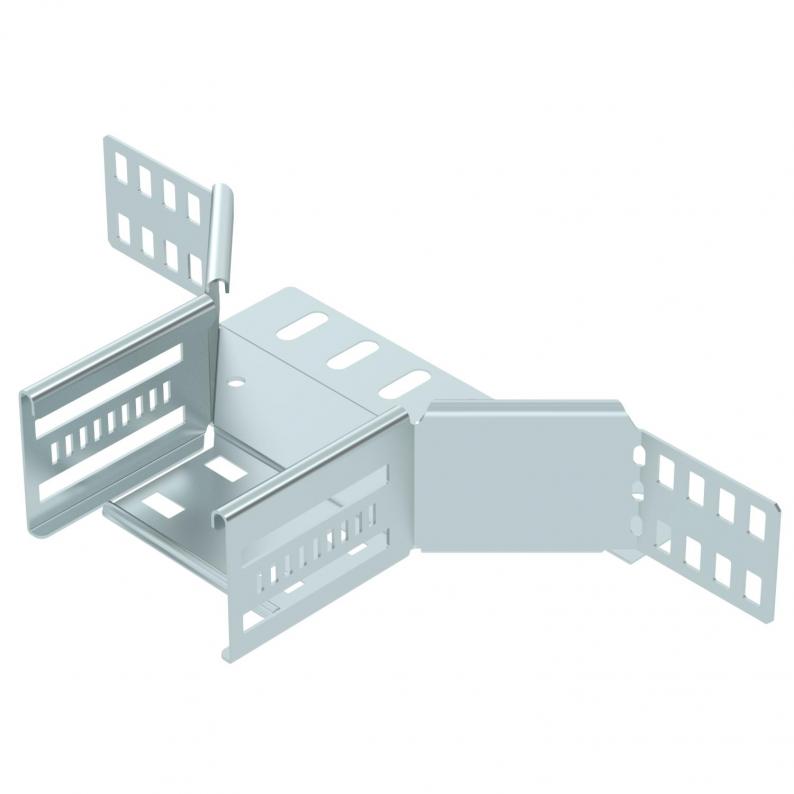

Add-on tee 60 FS

Add-on tee 60 FS

Type RAA 610 FS | Item no. 6042111 | EAN 4012197337162

Show all variants
Item no. / Type
Width
Colour
zinc

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

Mounting/branch piece for the creation of a horizontal branch or cross-over, fitting for lock and screw-on cable trays of side height 60 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width100 mm
Height60 mm
Dimension B100 mm

Technical data

Maintain electrical functionsyes
Connector versionIntegrated connector
Wide-span versionno
Rustproof steel, pickledno
Plate thickness0,8 mm
NATO hole patternno
Material thickness, floor plate0,8 mm
Departing width100 mm
Rail thickness1,25 mm
Permitted temperature range, max.120 °C
Permitted temperature range, min.-20 °C
Dimension60x100
SurfaceStrip galvanized
MaterialSteel
Colourzinc
Type of connector, cable support systemscrewed/clamped
Recommended quantity of bolts10 St.
CO2 Footprint (GWP) Cradle-to-Gate1,2281 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Instructions and Aid (5)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Accessories

Mounting accessories
Type
DOP A2

Smallest selling unit: 10 piece

Variants

Width
RAA 610 FS
Item no.
6042111
Width
100
Colour
zinc
RAA 615 FS
Item no.
6042113
Width
150
Colour
zinc
RAA 620 FS
Item no.
6042115
Width
200
Colour
zinc
RAA 630 FS
Item no.
6042117
Width
300
Colour
zinc
RAA 640 FS
Item no.
6042119
Width
400
Colour
zinc
RAA 650 FS
Item no.
6042121
Width
500
Colour
zinc
RAA 660 FS
Item no.
6042123
Width
600
Colour
zinc
