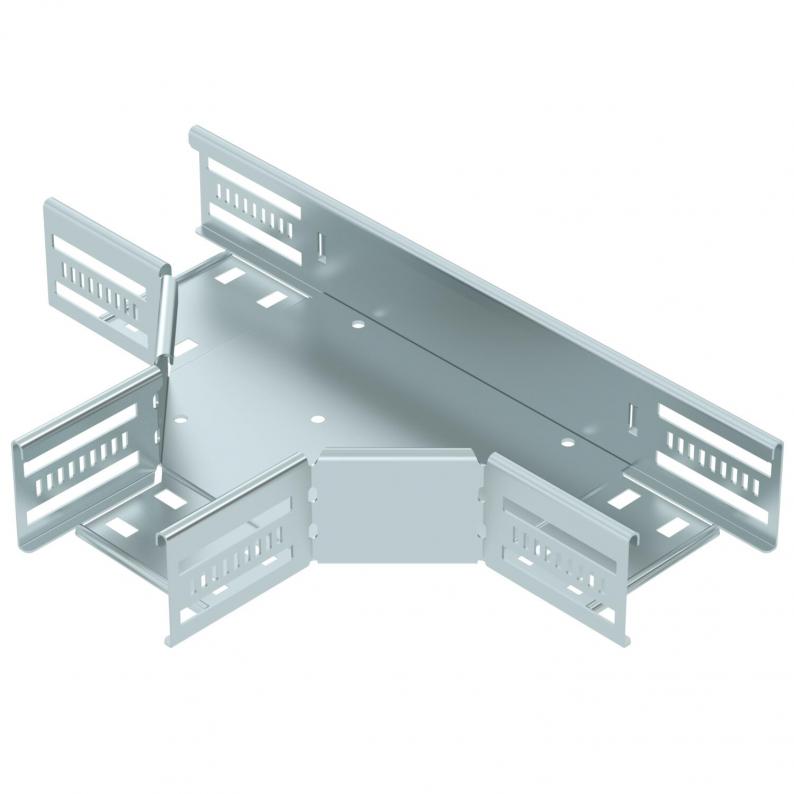

T piece 60 FS
Type RT 610 FS | Item no. 6038100 | EAN 4012197346621
Item no. / Type
Width
Surface
Strip galvanized
Material
Steel
Smallest selling unit: 1 piece
1piece
Description
T piece for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 60 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.
Technical data
Dimensions
| Width | 100 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Connector version | Integrated connector |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 0,8 mm |
| NATO hole pattern | no |
| Width of the branch | 100 mm |
| Type | T piece horizontal |
| Rail thickness | 1,25 mm |
| Permitted temperature range, max. | 120 °C |
| Permitted temperature range, min. | -20 °C |
| Dimension | 60x100 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | screwed/clamped |
| Recommended quantity of bolts | 15 St. |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,5853 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (5)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Accessories
Mounting accessories
Article
Type
Item no.
Amount
Variants
Type
Width
Surface
Material
Item no.
RT 610 FS
100
Strip galvanized
Steel
6038100
RT 615 FS
150
Strip galvanized
Steel
6038102
RT 620 FS
200
Strip galvanized
Steel
6038104
RT 630 FS
300
Strip galvanized
Steel
6038106
RT 640 FS
400
Strip galvanized
Steel
6038108
RT 650 FS
500
Strip galvanized
Steel
6038110
RT 660 FS
600
Strip galvanized
Steel
6038112
