Cable tray MKS-Magic® 60 FS

Cable tray MKS-Magic® 60 FS

Type MKSM 610 FS | Item no. 6059000 | EAN 4012195829553

Show all variants
Item no. / Type
Length
Width
Height
Plate thickness
Maintain electrical functions
no
Surface
Strip galvanized
Material
Steel
Colour
zinc

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

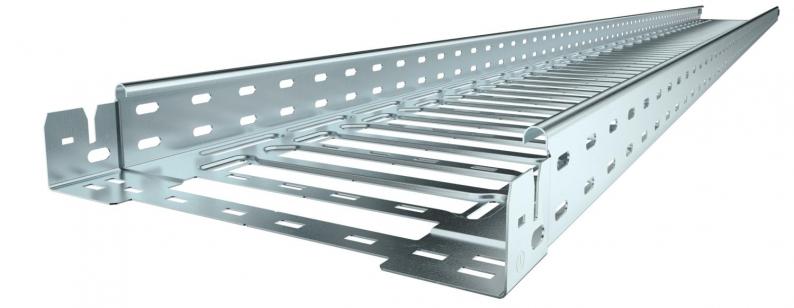

Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.

The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.

From a cable tray width of 200 mm with 30% hole surface, suitable for use under sprinkler systems according to VdS guideline 2092.

Continuous equipotential bonding is guaranteed without additional components.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length3050 mm
Width100 mm
Height60 mm
Dimension y62 mm
Dimension L30 mm
Dimension B100 mm

Technical data

Maintain electrical functionsno
Side perforationyes
Connector versionIntegrated connector
Wide-span versionno
Usable cross-section58 cm²
Rustproof steel, pickledno
Plate thickness1 mm
Mounting perforation in baseyes
NATO hole patternno
Usable cross-section5800 mm²
With coverno
Dimension60x100x3050
SurfaceStrip galvanized
MaterialSteel
Colourzinc
Magnetic shield insulation with cover50 dB
Magnetic shield insulation without cover20 dB
Load test type according to IEC 61537Type II
Usable length3000 mm
Type of connector, cable support systemClick fastening
CO2 Footprint (GWP) Cradle-to-Gate4,4106 kg CO2e / 1 Meter

Loads

Support spacing 2.0 m1,1 kN/m
Support spacing 2.5 m0,7 kN/m
Support spacing 1.5 m1,6 kN/m
NEMA load class8A
Load diagram, cable tray, type MKSM 60

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width
