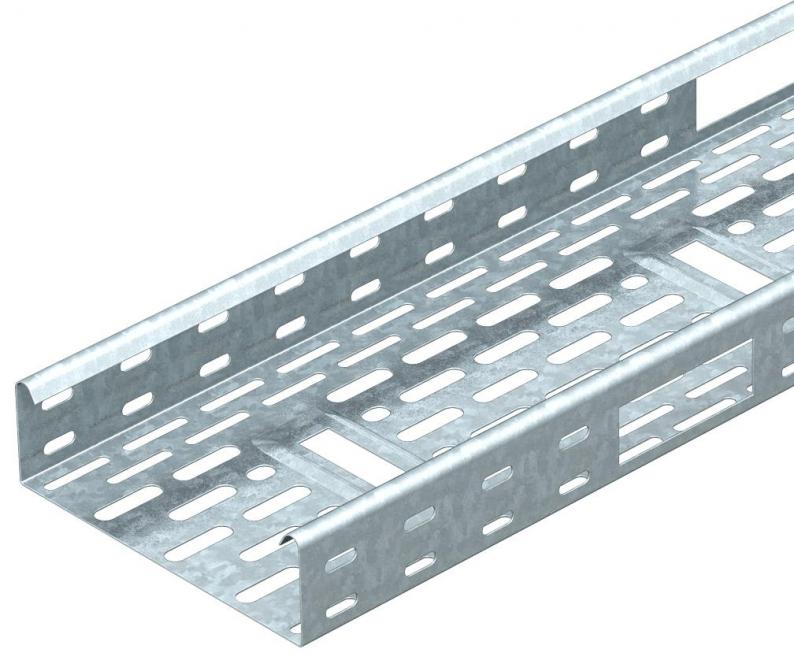

Cable tray IKS 60 FS

Type IKS 620 FS | Item no. 6087132 | EAN 4012196335053

Item no. / Type

6087132 / IKS 620 FS

Maintain electrical functions

Surface

Strip galvanized

Material

Steel

Smallest selling unit: 3 m

Description

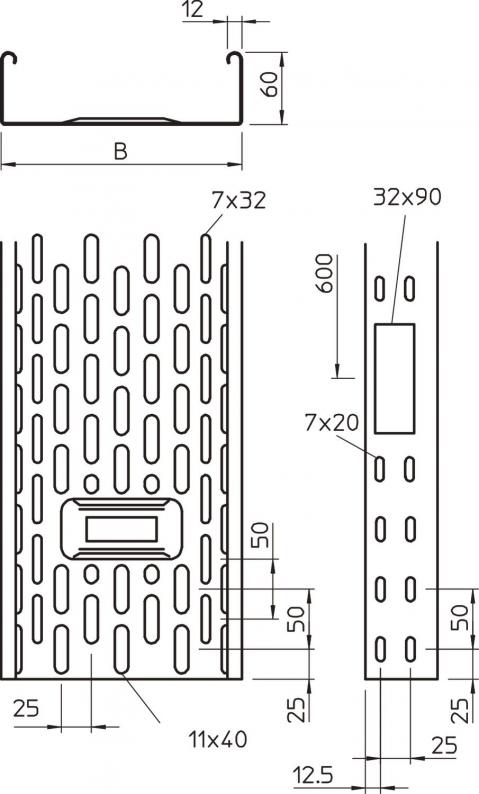

IKS 60 = installation cable tray system with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Permeable cable tray system to VdS guideline 2092 with 30% hole surface for use under sprinkler systems.

Bottom penetration from width 200 mm. Offset side holes every 300 mm.

Connecting parts should be ordered in the appropriate quantity.

Maintain electrical functions	no
Side perforation	yes
Connector version	Without connectors
Wide-span version	no
Usable cross-section	118 cm²
Rustproof steel, pickled	no
Plate thickness	1 mm
Mounting perforation in base	yes
NATO hole pattern	no
Usable cross-section	11800 mm²
With cover	no
Dimension	60 x 200
Dimension	60x200x3000
Surface	Strip galvanized
Material	Steel
Colour	zinc
Sprinkler system use	yes
Load test type according to IEC 61537	Type II
Type of connector, cable support system	Screwed
CO2 Footprint (GWP) Cradle-to-Gate	6,0838 kg CO2e / 1 Meter
