Straight connector FT

Straight connector FT

Type RLVK 60 FT | Item no. 6067603 | EAN 4012196065899

Show all variants
Item no. / Type
6067603 / RLVK 60 FT
Colour
zinc

Smallest selling unit: 10 piece

DescriptionTechnical dataDownloadsVariants

Description

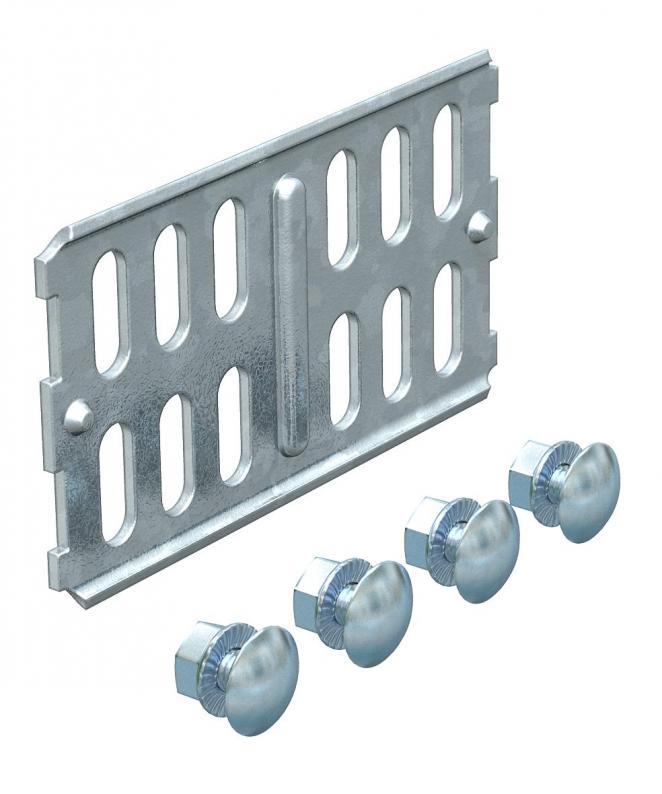

For straight connections of cable trays, fittings and barrier strips (FT) with a side height of 60 mm.

Including appropriate fastening material.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

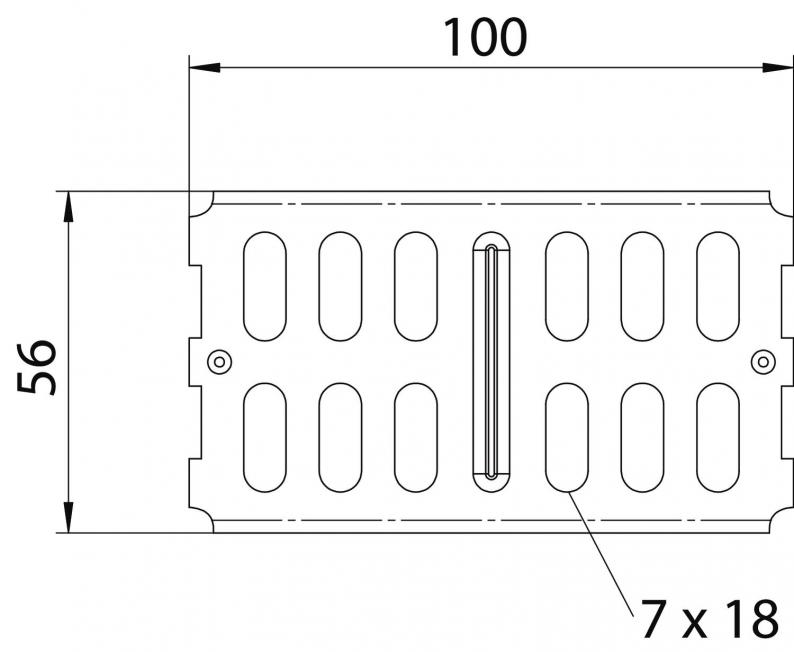

Dimensions

Length100 mm
Width3,5 mm
Height56 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
Plate thickness2 mm
Suitable for mesh cable trayno
Suitable for cable ladderno
Suitable for cable trayyes
Adjustable connector, horizontalno
Articulated connector, verticalno
Dimension200 x 56
Suitable for cable tray system height60 mm
Version forStraight connector
Connection typeScrew connector
Dimension60x100
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
CO2 Footprint (GWP) Cradle-to-Gate0,2598 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (2)
Instructions and Aid (5)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

RLVK 60 FT
Item no.
6067603
Width
3,5
Height
56
Plate thickness
2
Colour
zinc
