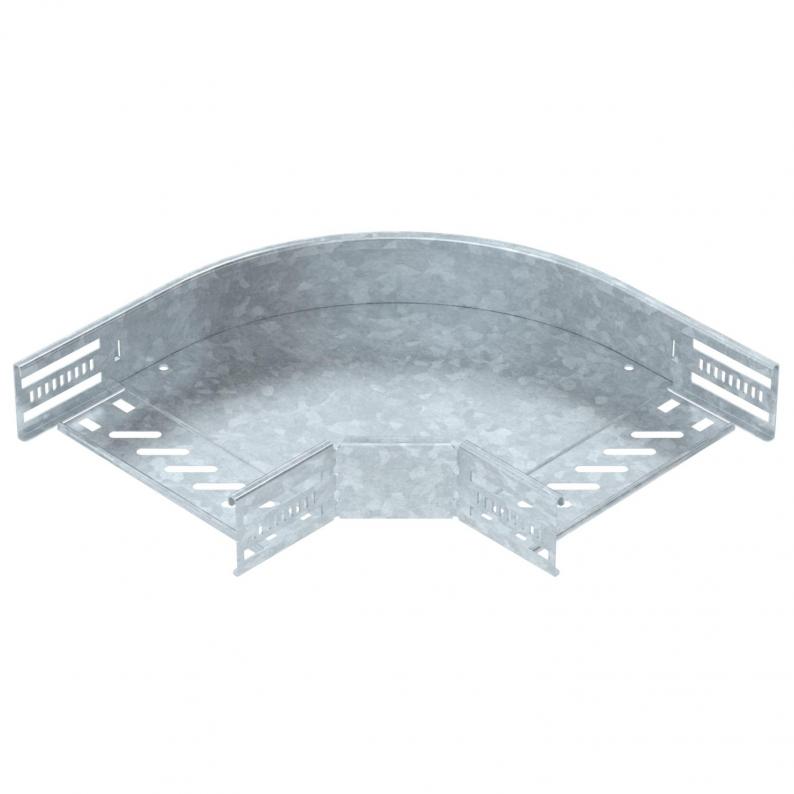

90° bend 60 FT
Type RB 90 620 FT
|Item no. 6036594
|EAN 4012197344498
Item no. / Type
Width
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
Smallest selling unit: 1 piece
1piece
piece
Description
90° bend for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 60 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.
Technical data
Dimensions
| Width | 200 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 200 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Side perforation | yes |
| Connector version | Integrated connector |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 0,8 mm |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Material thickness, floor plate | 0,8 mm |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| With cover | no |
| Type | Bend, rigid |
| Rail thickness | 1,25 mm |
| Permitted temperature range, min. | -20 °C |
| Permitted temperature range, max. | 120 °C |
| Dimension | 60x200 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | screwed/clamped |
| Recommended quantity of bolts | 12 St. |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,7082 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Instructions and Aid (5)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Accessories
Mounting accessories
Article
Type
Item no.
Amount
Item no. 6035998
Double clamp, fitting mounting A2Type
DOP A2
Smallest selling unit: 10 piece
10piece
piece
Item no. 6406122
Truss-head bolt with flange nut FType
FRSB 6x12 F
Smallest selling unit: 100 piece
100piece
piece
Variants
Type
Width
Surface
Material
Colour
Item no.
RB 90 610 FT
100
Hot-dip galvanised
Steel
zinc
6036590
RB 90 615 FT
150
Hot-dip galvanised
Steel
zinc
6036592
RB 90 620 FT
200
Hot-dip galvanised
Steel
zinc
6036594
RB 90 630 FT
300
Hot-dip galvanised
Steel
zinc
6036596
RB 90 640 FT
400
Hot-dip galvanised
Steel
zinc
6036598
RB 90 650 FT
500
Hot-dip galvanised
Steel
zinc
6036600
RB 90 660 FT
600
Hot-dip galvanised
Steel
zinc
6036602
