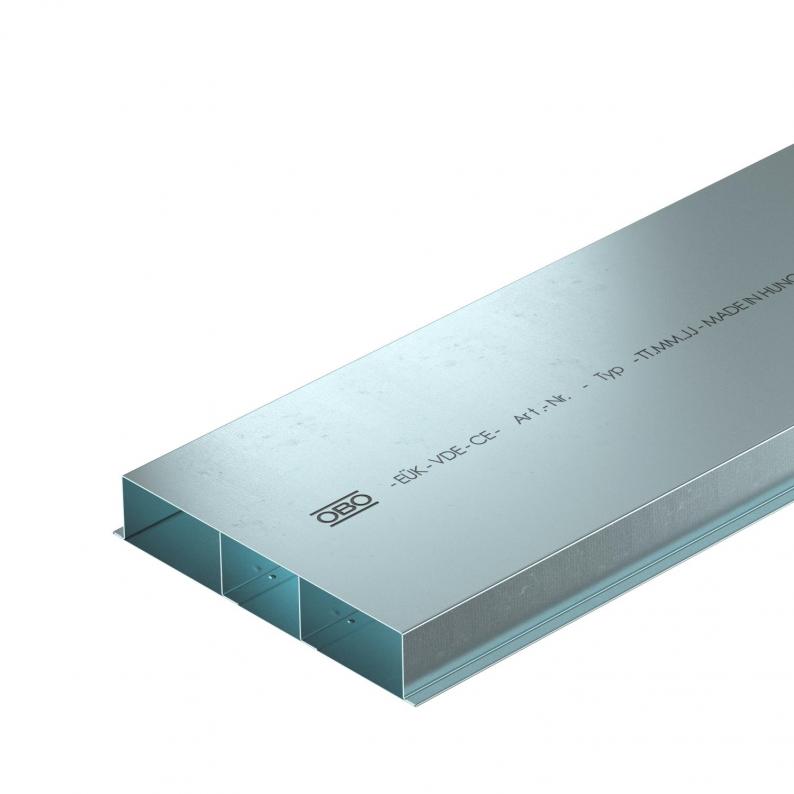

Underfloor installation duct, 3-compartment , Kanalhöhe 48 mm
Type S3 25048 | Item no. 7400332 | EAN 4012195089377
Item no. / Type
Length
Width
Number of compartments
This item is a discontinued product!
Smallest selling unit: 2 m
2m
Description
Underfloor installation duct for laying cables under the floor.
Technical data
Dimensions
| Length | 2000 mm |
|---|---|
| Width | 250 mm |
| Height | 48 mm |

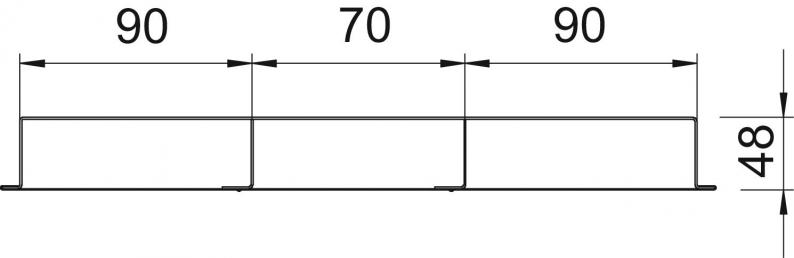

| Dimension b | 70 mm |
| Dimension a | 90 mm |
| Dimension h | 48 mm |
Technical data
| Usable cross-section | 11270 mm² |
|---|---|
| Number of compartments | 3 St. |
| Number of fixed partitions | 2 |
| Cross-section, draw a | 4048 mm² |
| Cross-section, draw b | 3174 mm² |
| Decouplable | no |
| Floor plate | yes |
| Application area | Screed-covered |
| Removable cover | no |
| Duct height, min. | 48 mm |
| Dimension | 2000x250x48 |
| Surface | Strip galvanized |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 11,8742 kg CO₂e / 1 Meter |
Downloads
0 selected
Data sheet (1)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (3)
3D data downloads (2)
Tender specifications (2)
Accessories
System accessories
Article
Type
Item no.
Amount
Item no. 7400652
Vertical bend, three-compartment, height 48 mmType
KV3 25048
Smallest selling unit: 1 piece
1piece
Variants
Type
Length
Width
Number of compartments
Item no.
S3 25048
2000
250
3
7400332
S3 35048
2000
350
3
7400344
Width
S3 25048
Item no.
7400332
Length
2000
Width
250
Number of compartments
3
S3 35048
Item no.
7400344
Length
2000
Width
350
Number of compartments
3
