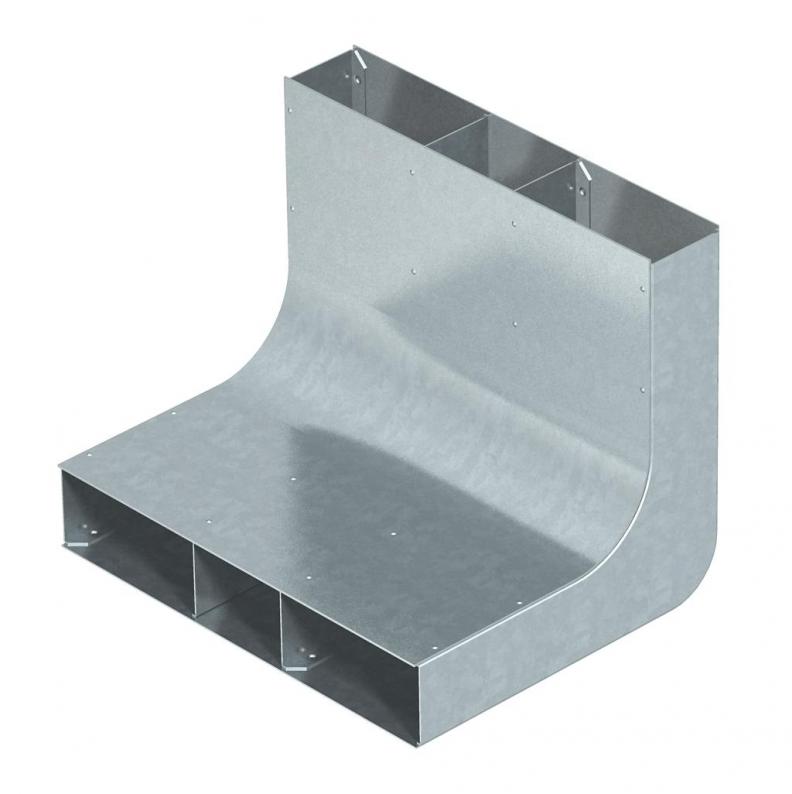

Vertical bend, three-compartment, height 48 mm
Type KV3 25048 | Item no. 7400652 | EAN 4012195090427
Item no. / Type
Width
Number of compartments
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description
For vertical direction changes of screed-covered underfloor installation ducts (wall connections, supplies).
An important precondition for correct underfloor installation is the screed structure.
In the case of a screed-covered system, it is important that the screed thickness of the duct is at least 35 mm, to avoid the formation of cracks (DIN 18560).
Screed height: 60 mm only for on-floor connection technology (Telitank), 70 mm or more for underfloor connection technology.
Technical data
Dimensions
| Length | 200 mm |
|---|---|
| Width | 250 mm |
| Height | 48 mm |
| Dimension b | 70 mm |
| Dimension a | 90 mm |
| Dimension h | 48 mm |
Technical data
| Number of compartments | 3 St. |
|---|---|
| Number of fixed partitions | 2 |
| Cross-section, draw a | 4048 mm² |
| Cross-section, draw b | 3174 mm² |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, min. | 250 mm |
| Duct height, min. | 48 mm |
| Surface | Strip galvanized |
| Material | Steel |
