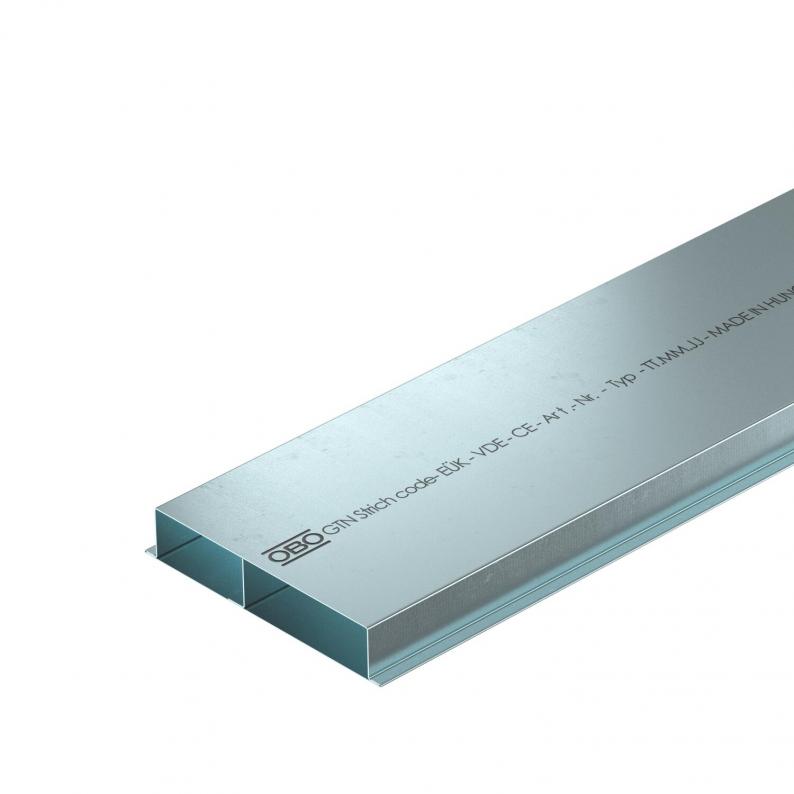

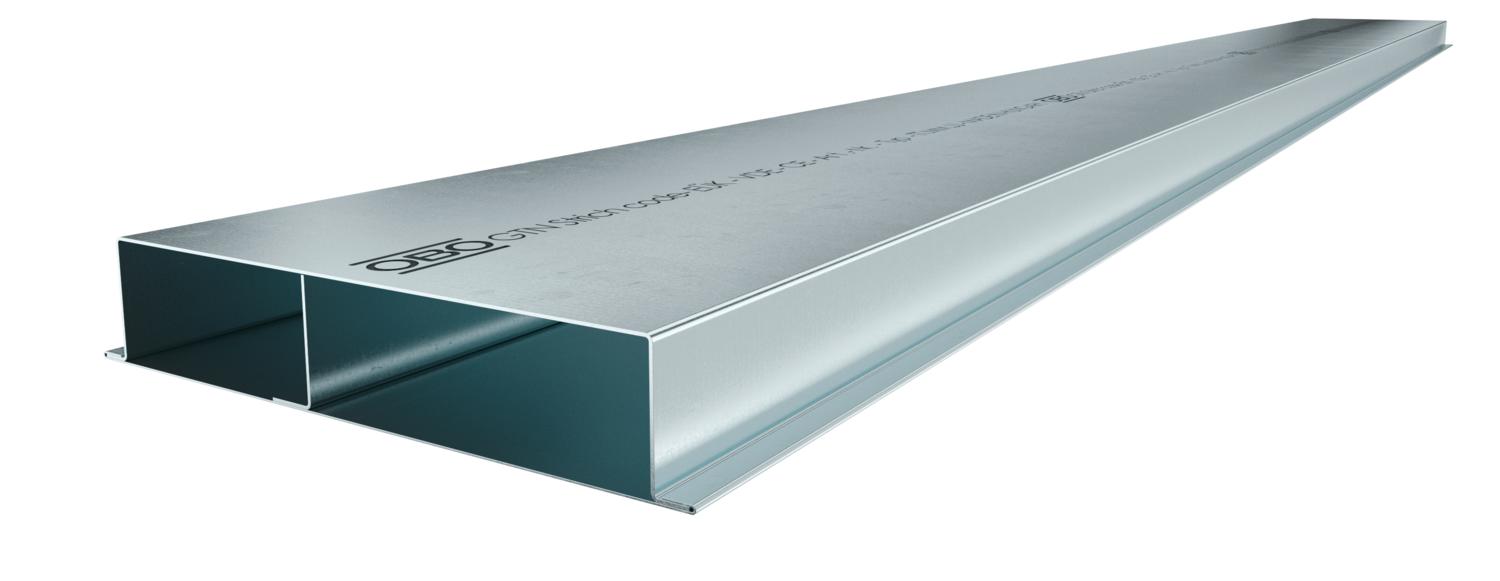

Underfloor installation duct, 2-compartment, trunking height 38 mm
Type S2 19038
|Item no. 7400304
|EAN 4012195089261
Item no. / Type
Length
Width
Number of compartments
This item is a discontinued product!
Smallest selling unit: 2 m
2m
m
Description
Underfloor installation duct for laying cables under the floor.
Technical data

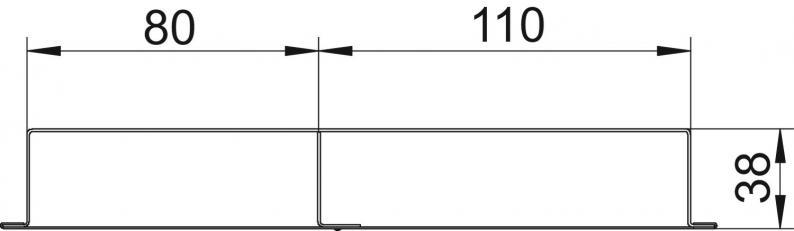

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 190 mm |
| Height | 38 mm |
| Dimension b | 110 mm |
| Dimension a | 80 mm |
| Dimension h | 38 mm |
Technical data
| Usable cross-section | 6696 cm² |
|---|---|
| Number of compartments | 2 St. |
| Number of fixed partitions | 1 |
| Cross-section, draw a | 2808 mm² |
| Cross-section, draw b | 3888 mm² |
| Decouplable | no |
| Floor plate | yes |
| Application area | Screed-covered |
| Removable cover | no |
| Duct height, min. | 38 mm |
| Dimension | 2000x190x38 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
8,1422 kg CO₂e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 8,1422 kg CO₂e / 1 Meter |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
KV2 19038
7400624
Smallest selling unit: 1 piece
1piece
piece
Item no. 7400624
Vertical bend, two-compartment, height 38 mmType
KV2 19038
Smallest selling unit: 1 piece
1piece
piece
Item no. 7400962
Connection shackle, height 38 mmType
VL 19038E
Smallest selling unit: 1 piece
1piece
piece
Downloads
0 selected
Data sheet (1)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (3)
3D data downloads (2)
Tender specifications (1)
Variants
Type
Length
Width
Number of compartments
Item no.
S2 19038
2000
190
2
7400304
S2 25038
2000
250
2
7400316
Width
S2 19038
Item no.
7400304
Length
2000
Width
190
Number of compartments
2
S2 25038
Item no.
7400316
Length
2000
Width
250
Number of compartments
2
