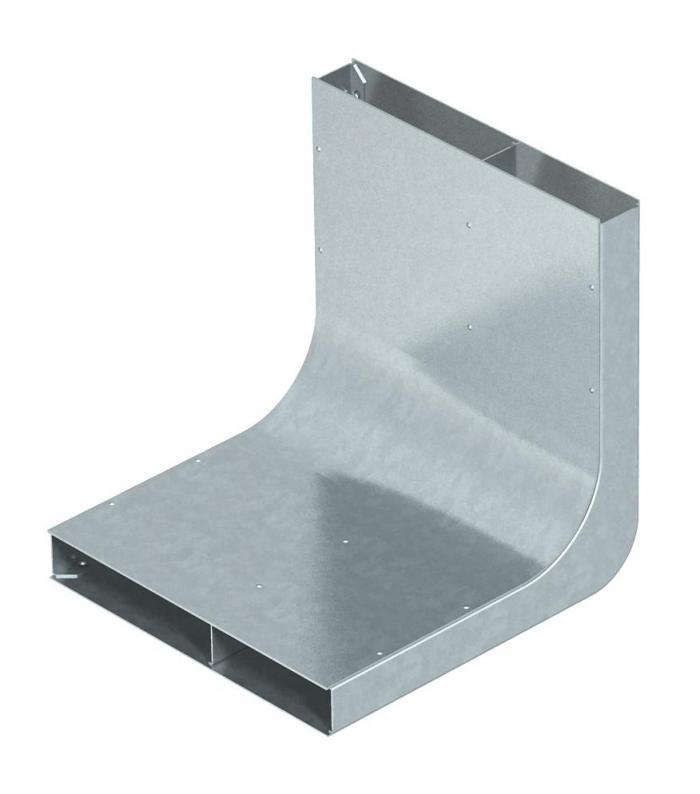

Vertical bend, two-compartment, height 38 mm
Type KV2 19038
|Item no. 7400624
|EAN 4012195090335
Item no. / Type
Width
Number of compartments
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description
For vertical direction changes of screed-covered underfloor installation ducts (wall connections, supplies).
Technical data

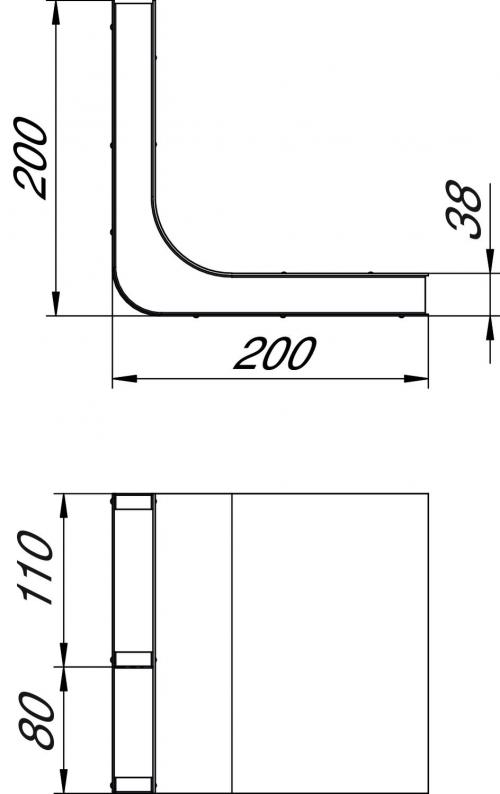

Dimensions
| Length | 200 mm |
|---|---|
| Width | 190 mm |
| Height | 38 mm |
| Dimension b | 110 mm |
| Dimension a | 80 mm |
| Dimension h | 38 mm |
Technical data
| Number of compartments | 2 St. |
|---|---|
| Number of fixed partitions | 1 |
| Cross-section, draw a | 2808 mm² |
| Cross-section, draw b | 3888 mm² |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, min. | 190 mm |
| Duct height, min. | 38 mm |
| Surface | Strip galvanized |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Number of compartments
Item no.
KV2 19038
190
2
7400624
KV2 25038
250
2
7400636
Width
KV2 19038
Item no.
7400624
Width
190
Number of compartments
2
KV2 25038
Item no.
7400636
Width
250
Number of compartments
2
