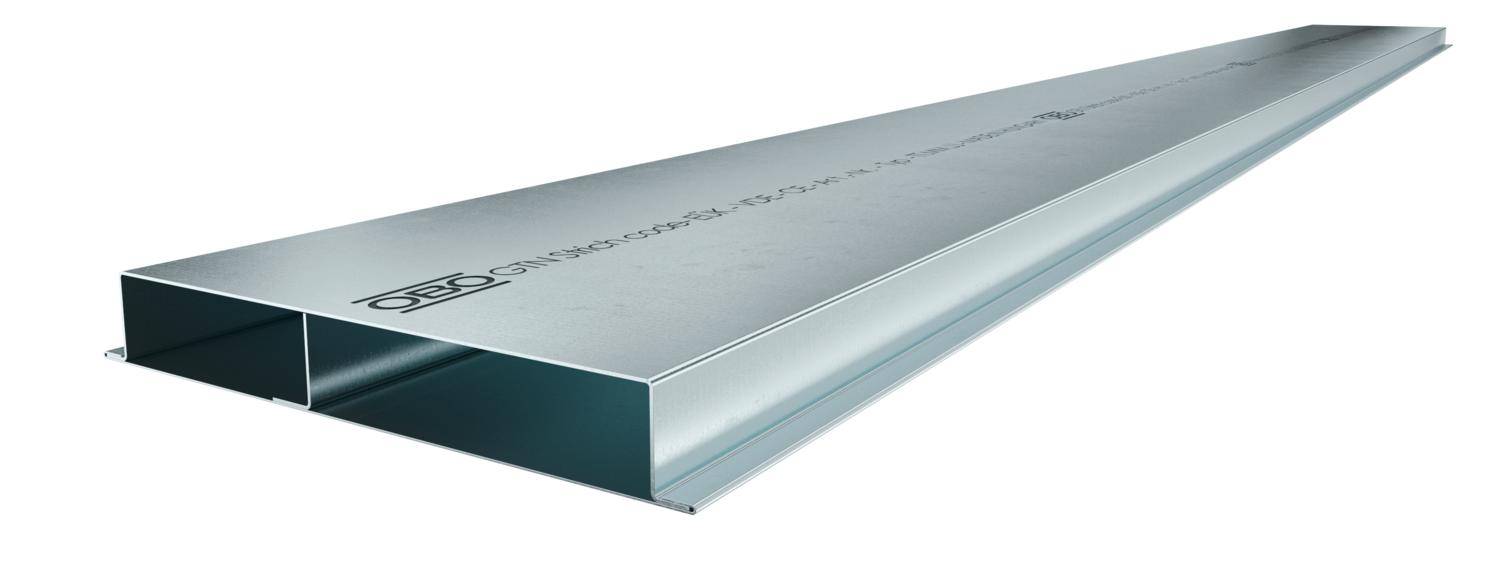

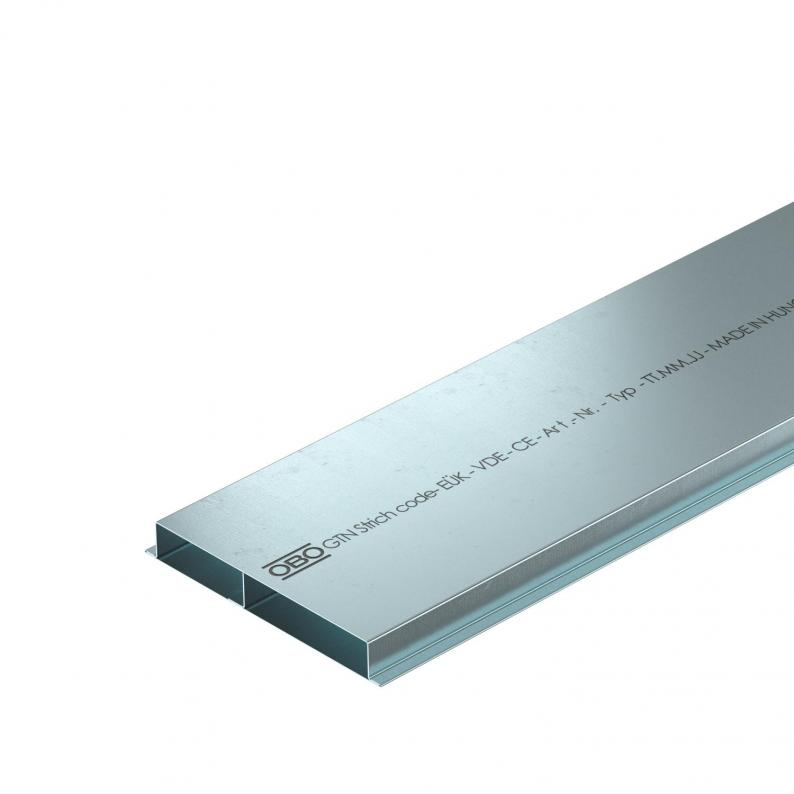

Underfloor installation duct, 2-compartment, trunking height 28 mm
Type S2 19028
|Item no. 7400300
|EAN 4012195089254
Item no. / Type
Length
Width
Number of compartments
This item is a discontinued product!
Smallest selling unit: 2 m
2m
m
Description
Underfloor installation duct for laying cables under the floor.
Technical data

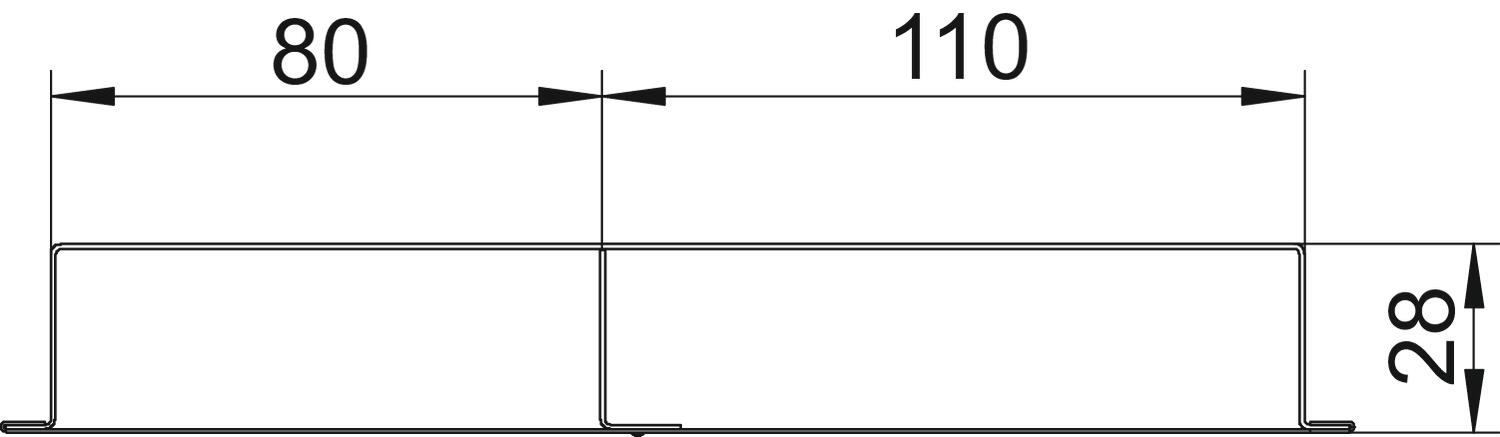

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 190 mm |
| Height | 28 mm |
| Dimension b | 110 mm |
| Dimension a | 80 mm |
| Dimension h | 28 mm |
Technical data
| Usable cross-section | 4836 mm² |
|---|---|
| Number of compartments | 2 St. |
| Number of fixed partitions | 1 |
| Cross-section, draw a | 2028 mm² |
| Cross-section, draw b | 2808 mm² |
| Decouplable | no |
| Floor plate | yes |
| Application area | Screed-covered |
| Removable cover | no |
| Dimension | 2000x190x28 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
7,6064 kg CO₂e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 7,6064 kg CO₂e / 1 Meter |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
KV2 19028
7400620
Smallest selling unit: 1 piece
1piece
piece
Item no. 7400620
Vertical bend, two-compartment, height 28 mmType
KV2 19028
Smallest selling unit: 1 piece
1piece
piece
Downloads
0 selected
Data sheet (1)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (3)
3D data downloads (2)
Tender specifications (1)
