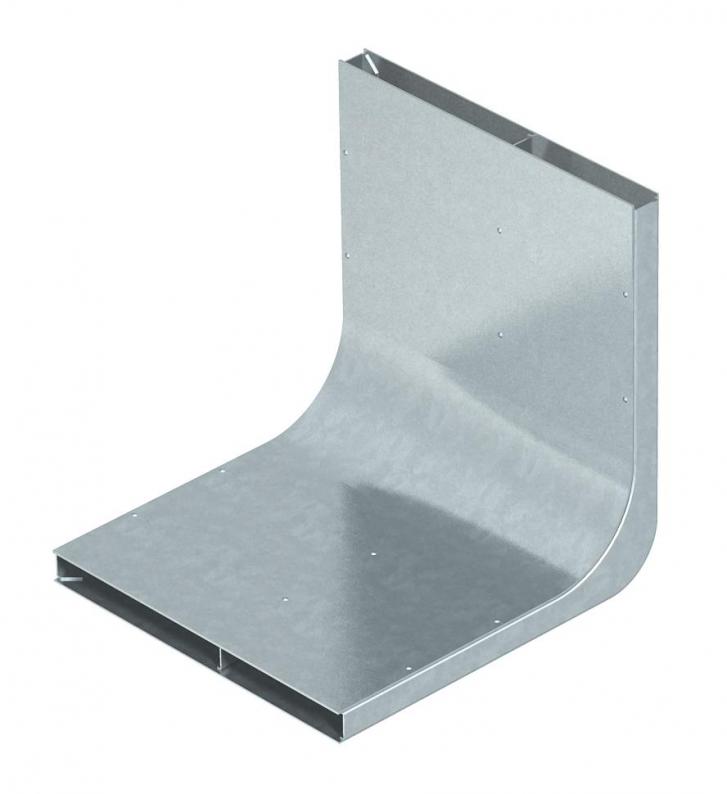

Vertical bend, two-compartment, height 28 mm
Type KV2 19028
|Item no. 7400620
|EAN 4012195090304
Item no. / Type
7400620 / KV2 19028
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description
For vertical direction changes of screed-covered underfloor installation ducts (wall connections, supplies).
Technical data

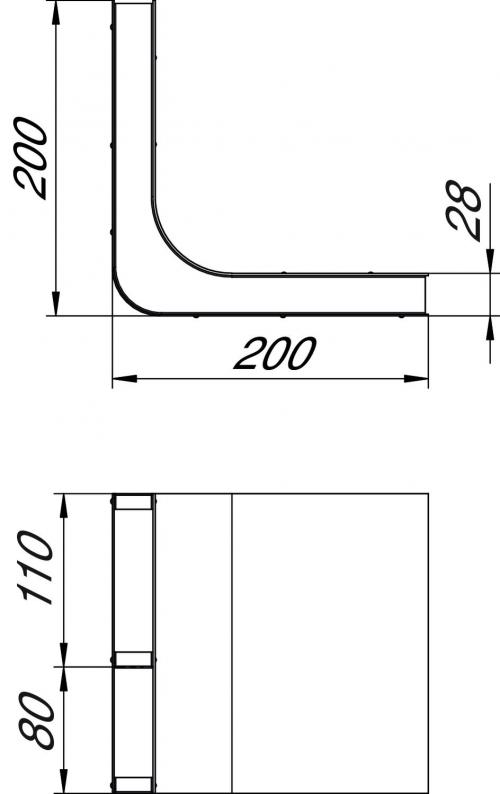

Dimensions
| Length | 200 mm |
|---|---|
| Width | 190 mm |
| Height | 28 mm |
| Dimension b | 110 mm |
| Dimension a | 80 mm |
| Dimension h | 28 mm |
Technical data
| Number of compartments | 2 St. |
|---|---|
| Number of fixed partitions | 1 |
| Cross-section, draw a | 2028 mm² |
| Cross-section, draw b | 2808 mm² |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, min. | 190 mm |
| Duct height, min. | 28 mm |
| Surface | Strip galvanized |
| Material | Steel |
