Trunking, type WDKH 15030

Trunking, type WDKH 15030

Type WDKH-15030RW
|
Item no. 6175390
|
EAN 4012195933953
Show all variants
Item no. / Type
6175390 / WDKH-15030RW
Colour
Pure white; RAL 9010

Smallest selling unit: 48 m

m

Description

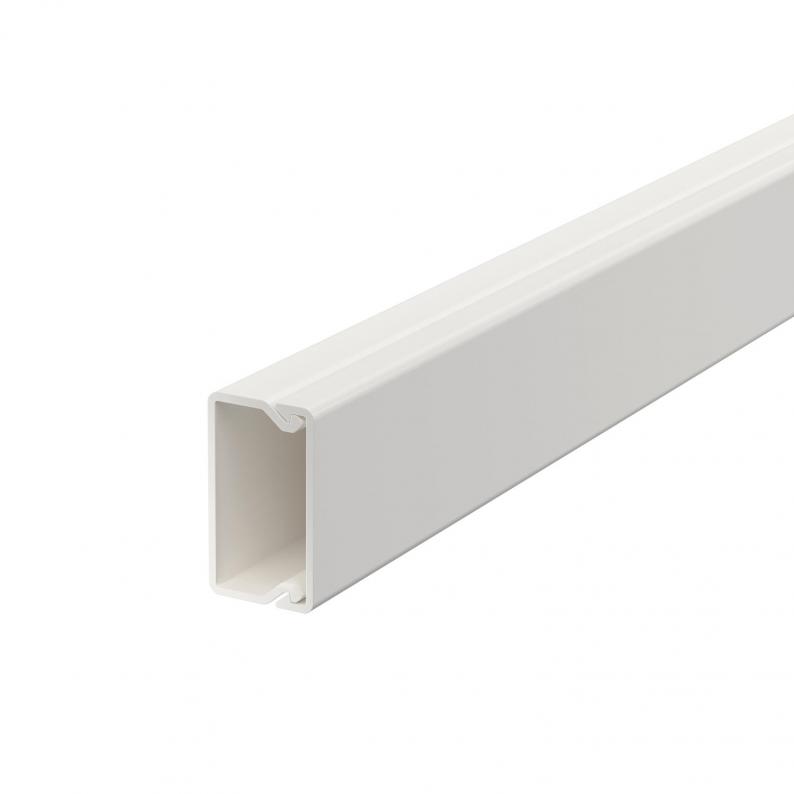

Trunking cover and base with base perforation made of halogen-free plastic.

During installation, ensure that only halogen-free accessories and fastening materials are used.

  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

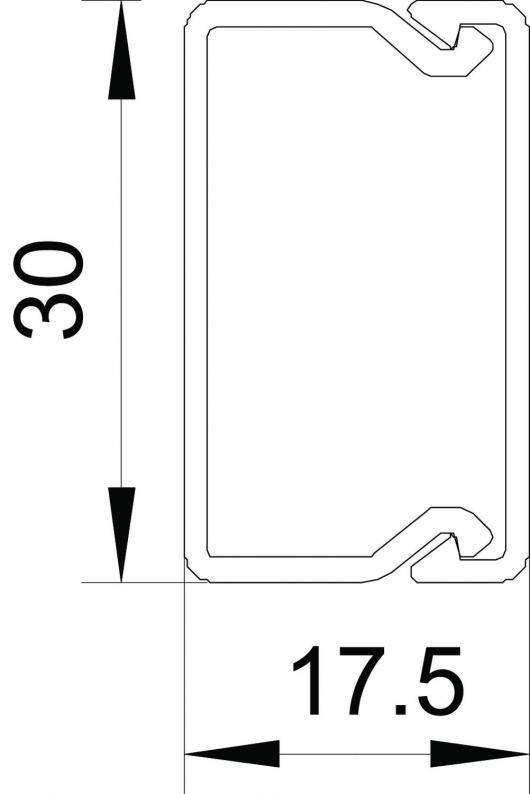

Dimensions

Length2000 mm
Width30 mm
Height17,5 mm

Technical data

Usable cross-section375 mm²
Halogen-freeyes
Number of fixed partitions0
Number of insertable partitions0
Cable retaining clipno
Protective filmno
Duct connectorno
Protection ratingIP30
Protection rating IK codeIK07.
Fastening typeBase perforation
Version, cable trunking coverLoose
Base perforationwith base perforation
Permitted temperature range, min.-5 °C
Permitted temperature range, max.90 °C
Dimension15x30x2000
MaterialPolycarbonate/Acrylnitrile-butadiene-styrene
ColourPure white; RAL 9010
Antibacterial treatmentno

Environmental Data

0,8232 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,8232 kg CO2e / 1 Meter

Accessories

System accessories
Type
WDKH-E15030RW

Smallest selling unit: 10 piece

piece

Type
WDKH-I15030RW

Smallest selling unit: 4 piece

piece

Type
WDKH-A15030RW

Smallest selling unit: 4 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Certificates (2)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

WDKH-15030RW
Item no.
6175390
Length
2000
Width
30
Height
17,5
Colour
Pure white; RAL 9010
