Flat angle cover, trunking type WDKH 15030
Type WDKH-F15030RW | Item no. 6175654 | EAN 4012195934158
Item no. / Type
6175654 / WDKH-F15030RW
Colour
Pure white; RAL 9010
Smallest selling unit: 0 translation missing
0translation missing
Description
Flat angle hood for changing the direction of the halogen-free WDKH trunking.
Technical data
Dimensions
| Length | 53 mm |
|---|---|
| Width | 30 mm |
| Height | 17,5 mm |

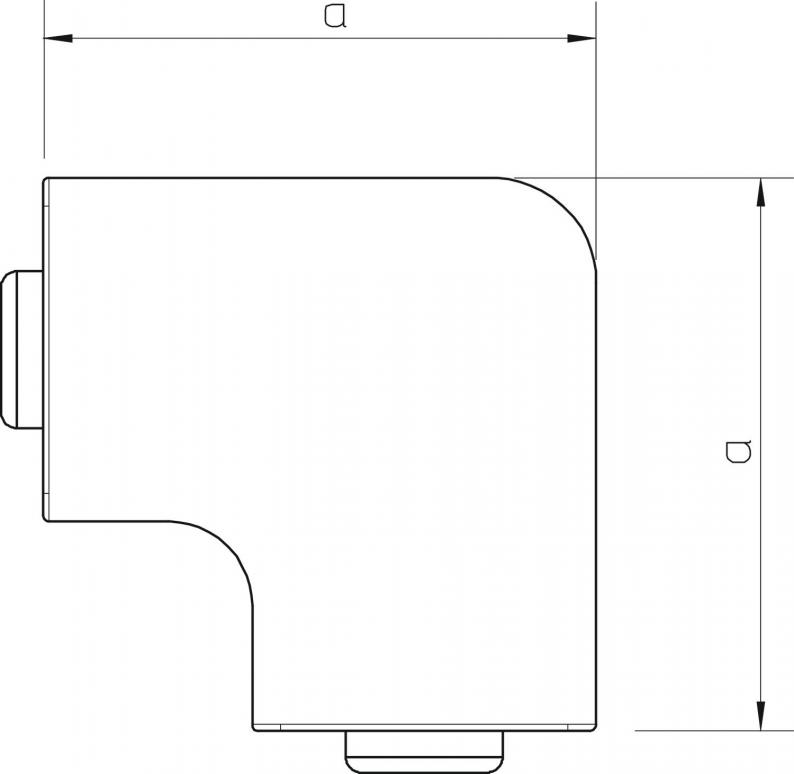

| Dimension a | 53 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| for duct dimension | 15 x 30 |
| Halogen-free | yes |
| Self-extinguishing | yes |
| Protective film | no |
| Angle range, max. | 90 mm |
| Angle range, min. | 90 mm |
| Protection rating | IP30 |
| Protection rating IK code | IK07. |
| Version for | Hood fitting |
| Fastening type | Lockable |
| Trunking depth | 15 mm |
| Permitted temperature range, max. | 90 °C |
| Permitted temperature range, min. | -5 °C |
| Dimension | 15x30mm |
| Material | Polycarbonate/Acrylnitrile-butadiene-styrene |
| Colour | Pure white; RAL 9010 |
| Antibacterial treatment | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0687 kg CO2e / 1 Piece |
