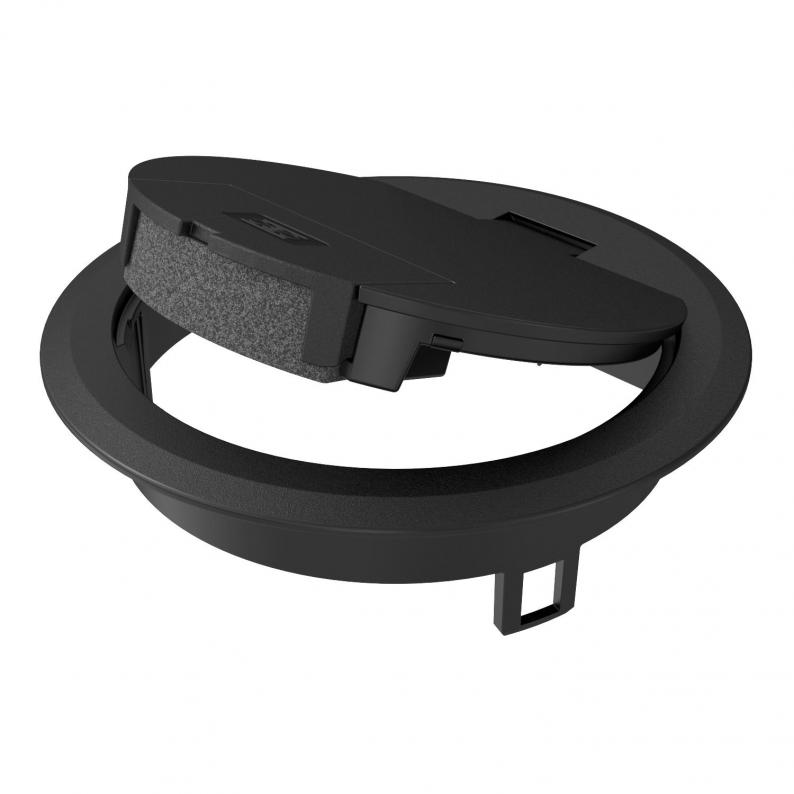

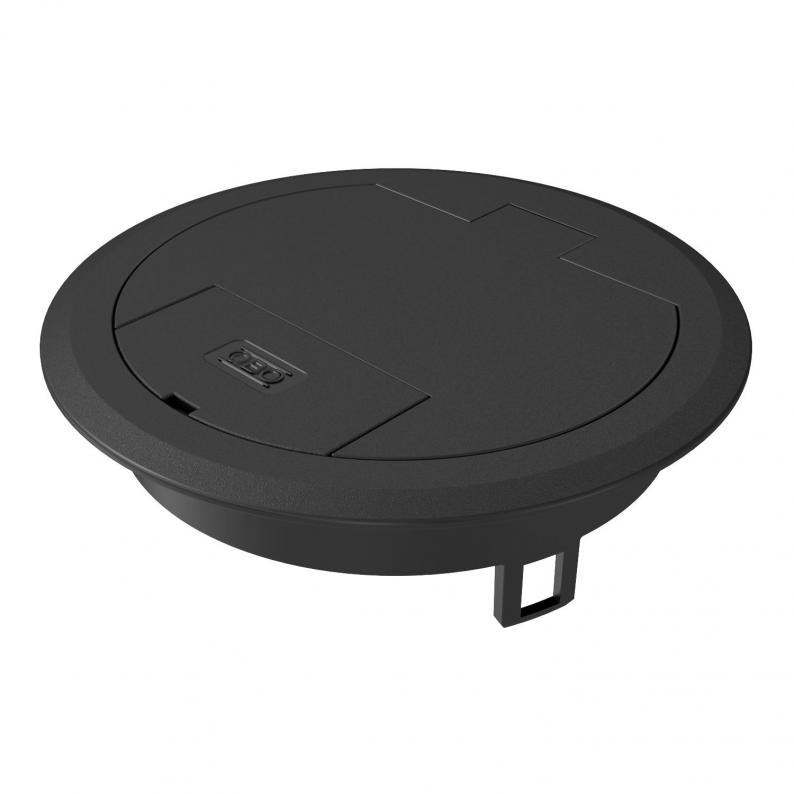

Service outlet with hinged cover and cord outlet, GES R2

Service outlet with hinged cover and cord outlet, GES R2

Type GES R2 9011
|
Item no. 7405084
|
EAN 4012196459599
Show all variants
Item no. / Type
Floor care
Protection rating (IP) when unused
Vertical load, small area
Opening mechanism
Material
Colour

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

Service outlet with hinged cover and cord outlet for GES R2 floor socket for direct installation in the MT R2 installation socket.

For use in dry-cleaned floors for indoor use.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Materials and Packaging

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes

Technical data

Suitable for underfloor ductsno
Suitable for cavity floor installationyes
Suitable for raised floor installationyes
Floor careDry
Suitable for wet careno
External diameter140 mm
With floor covering recessno
Floor covering protection frameyes
Cable outlet versionSwivellable cord outlet
Protection rating IK codeIK10
ApprovalsVDE
Protection rating (IP) when usedIP20
Protection rating (IP) when unusedIP40
Vertical load, small areato 500 N
Version forRound
Opening mechanismTool

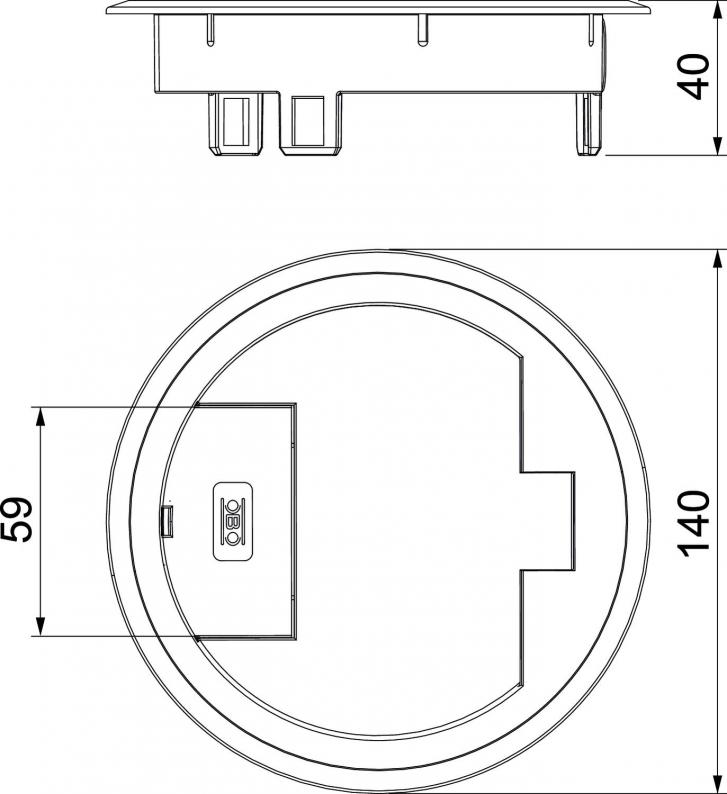

Dimension140x140x40
MaterialPolyamide
ColourGraphite black; RAL 9011

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate1,282 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (5)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (3)
3D data downloads (2)
Tender specifications (1)

Accessories

System accessories
Type
MP R2 2C

Smallest selling unit: 1 piece

piece

Type
MT R2 V

Smallest selling unit: 1 piece

piece

Item no. 7428526

Screed box for GES R2
Type
UD GES R2

Smallest selling unit: 1 piece

piece

Variants

Floor care
Protection rating
 (IP) when unused
Vertical load, small area
Opening mechanism
Material
Colour
GES R2 9011
Item no.
7405084
Floor care
Dry
Protection rating (IP) when unused
IP40
Vertical load, small area
to 500 N
Opening mechanism
Tool
Material
Polyamide
Colour
Graphite black; RAL 9011
GES R2 KP
Item no.
7408847
Floor care
Wet
Protection rating (IP) when unused
IP66
Vertical load, small area
to 3,000 N
Opening mechanism
Locking slider
Material
Die-cast zinc
Colour
Jet black; RAL 9005
