Installation socket, double, protective contact sockets
Type MT R2 V
|Item no. 7408832
|EAN 4012196460601
Item no. / Type
Equipment
Smallest selling unit: 1 piece
1piece
piece
Description

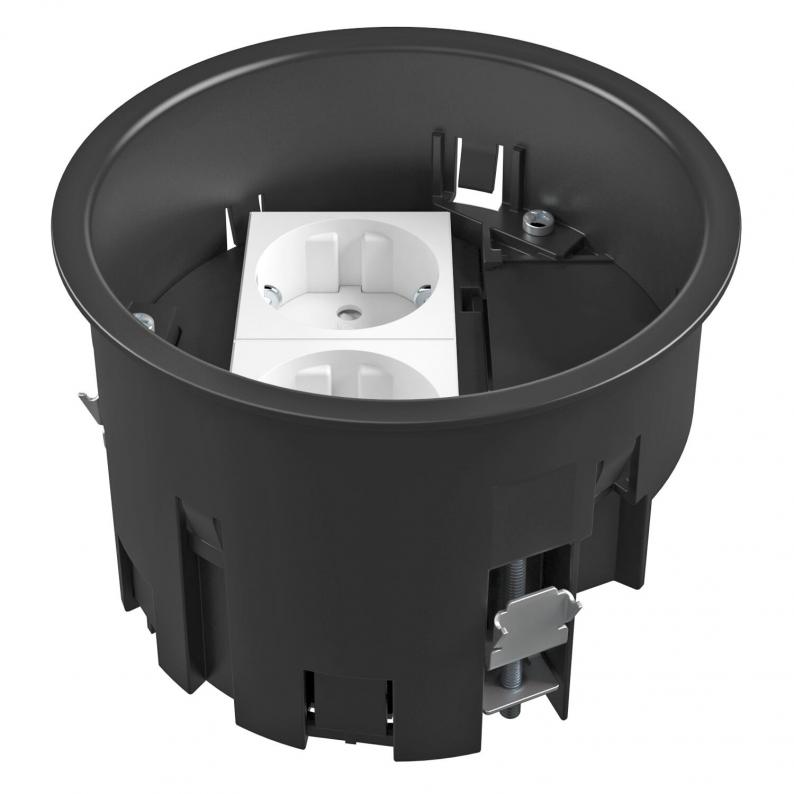

Installation socket for GES R2 floor socket for mounting in UD GES R2 screed box and in raised floor plates with an installation opening diameter of 122 mm.
The scope of delivery contains a double Schuko socket. Up to two modular data sockets (Keystones) can be installed with optional mounting plate.
Technical data
Technical data
| Cover version | Round |
|---|---|
| Device type | Grid M45 |
| Strain relief option | yes |
| Number of installable devices | 2 |
| Seal installation option | yes |

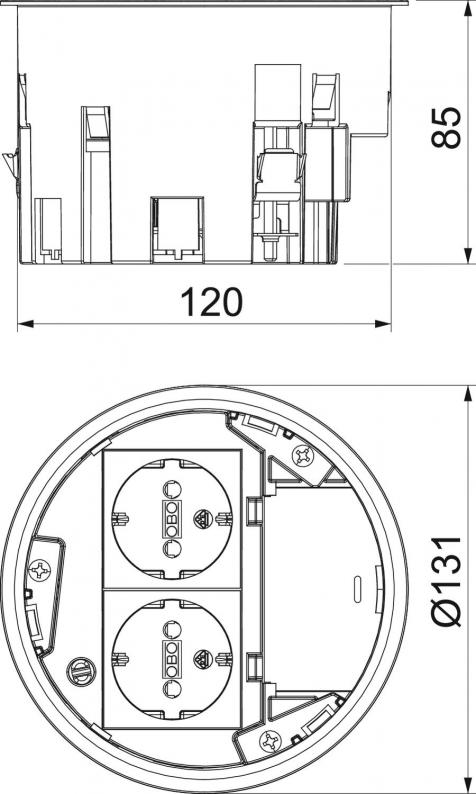

| Installation diameter | 122 |
| Suitable for underfloor ducts | no |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Suitable for wet care | no |
| Installation depth | 85 mm |
| Installation technology | Grid M45 |
| External diameter | 131 mm |
| With floor covering recess | no |
| Floor covering protection frame | no |
| Device support to accept mounting boxes | no |
| Number of strain reliefs | 1 |
| Equipment | Double VDE socket |
| Clamping range D, min. | 25 mm |
| Clamping range D, max. | 50 mm |
| Material | Polyamide |
| Colour | Graphite black; RAL 9011 |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 3,125 kg CO2e / 1 Piece |
|---|
