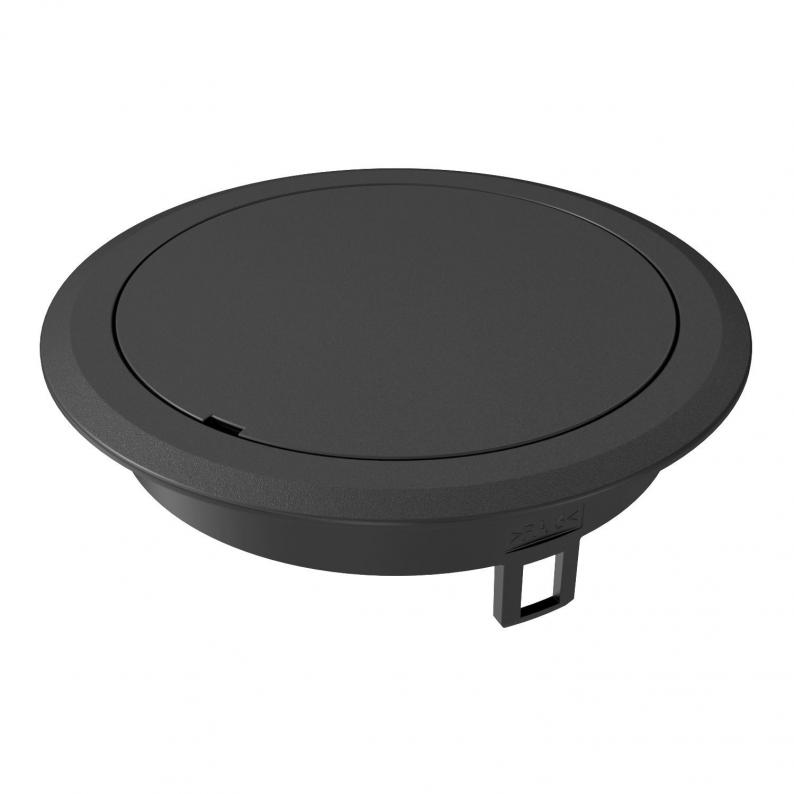

Service outlet with blanking cover and opening contour, GES R2
Type GES R2B 9011
|Item no. 7405088
|EAN 4012196459643
Item no. / Type
7405088 / GES R2B 9011
Smallest selling unit: 1 piece
1piece
piece
Description
Service outlet with blanking cover and opening contour for GES R2 floor socket for direct installation in the MT R2 installation socket.
For use in dry-cleaned floors for indoor use.
For use in dry-cleaned floors for indoor use.
Technical data
Materials and Packaging
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
Technical data
| Suitable for underfloor ducts | no |
|---|---|
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Dry |
| Suitable for wet care | no |
| External diameter | 140 mm |
| With floor covering recess | no |
| Floor covering protection frame | yes |
| Cable outlet version | No cable outlet |
| Protection rating IK code | IK10 |
| Approvals | VDE |
| Standard | EN 50085-2-2 |
| Protection rating (IP) when unused | IP40 |
| Vertical load, small area | to 500 N |
| Version for | Round |
| Opening mechanism | Tool |

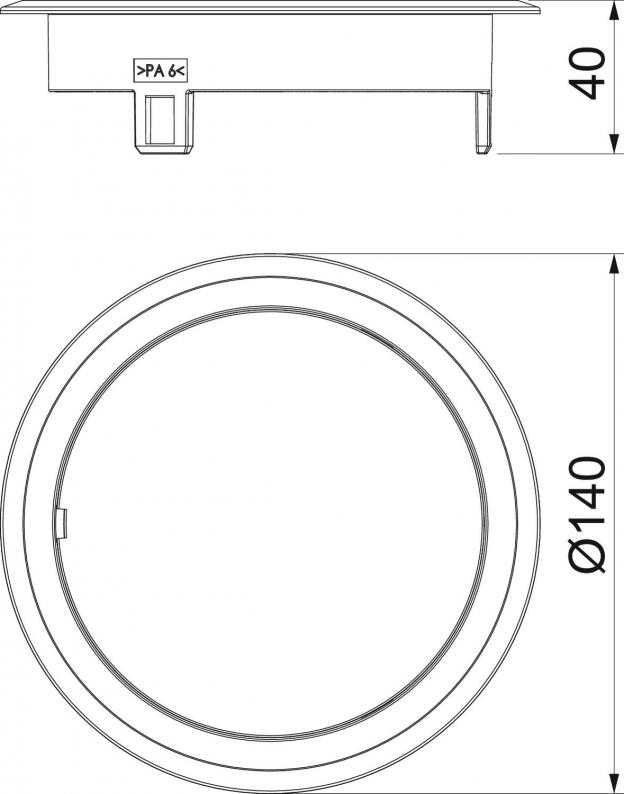

| Dimension | 140x140x40 |
| Material | Polyamide |
| Colour | Graphite black; RAL 9011 |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4053 kg CO2e / 1 Piece |
|---|
