Mesh cable tray GR-Magic® 55 A2

Mesh cable tray GR-Magic® 55 A2

Type GRM 55 50 A2 | Item no. 6001070 | EAN 4012195430933

Show all variants
Item no. / Type
Length
Width
Height
Usable cross-section
Wire diameter
Maintain electrical functions
yes

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

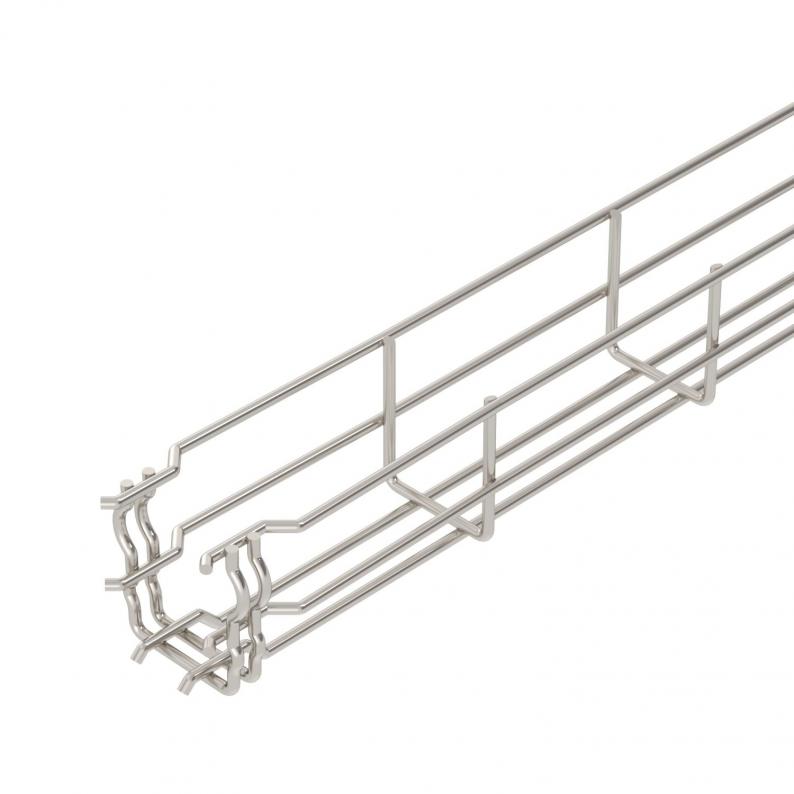

Mesh cable tray with shaped connector of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.

No additional connection components are required for the mesh cable tray, it is simply interlocked. The grid width is 50 x 100 mm (exception: GRM 55/50 = 20 x 100 mm).

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • RINA 1861, Ship Classification, Certification and Services
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Function maintenance class E30
  • Function maintenance class E60
  • Function maintenance class E90
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length3000 mm
Width50 mm
Height55 mm
Dimension B52 mm
Dimension H58 mm

Technical data

Maintain electrical functionsyes
Connector versionIntegrated connector
Usable cross-section16 cm²
Rustproof steel, pickledyes
Usable cross-section1600 mm²
Integrated partitionWithout
Screwless connectoryes
Profile shapeU-shaped
Wire diameter3,9 mm

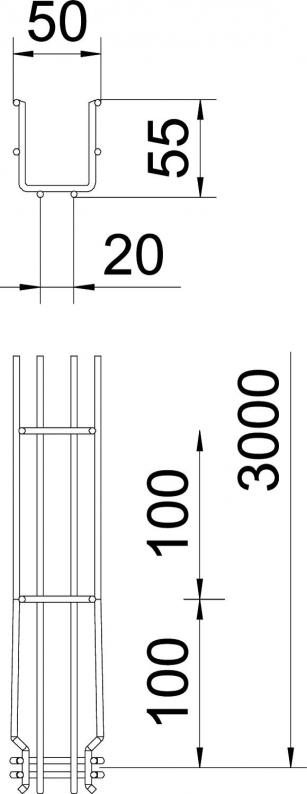

Dimension55x50x3000
SurfaceBright, treated
MaterialStainless steel 1.4301
Colourstainless steel
Fire protectionMaintenance of electrical function of cable-specific support structure
Load test type according to IEC 61537Type II
Type of connector, cable support systemClick fastening
CO2 Footprint (GWP) Cradle-to-Gate3,4068 kg CO2e / 1 Meter

Loads

Support spacing 2.0 m0,1 kN/m
Support spacing 2.5 m0,1 kN/m
Support spacing 1.0 m0,35 kN/m
Support spacing 1.5 m0,2 kN/m
Load diagram, mesh cable tray, type GRM 55 VA

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (10)
Declarations (4)
Certificates (4)
Instructions and Aid (4)
Product images (3)
3D data downloads (2)
Tender specifications (2)

Accessories

System accessories
Mounting accessories
Type
DGRR 50 A2

Smallest selling unit: 3 m

Item no. 6016731

Corner connector A2
Type
GEV 36 A2

Smallest selling unit: 20 piece

Variants

Width
Usable cross-section
Wire diameter
GRM 55 50 A2
Item no.
6001070
Length
3000
Width
50
Height
55
Maintain electrical functions
yes
Usable cross-section
16
Wire diameter
3,9
GRM 55 100 A2
Item no.
6001072
Length
3000
Width
100
Height
55
Maintain electrical functions
yes
Usable cross-section
40
Wire diameter
3,9
GRM 55 150 A2
Item no.
6001074
Length
3000
Width
150
Height
55
Maintain electrical functions
yes
Usable cross-section
63
Wire diameter
3,9
GRM 55 200 A2
Item no.
6001076
Length
3000
Width
200
Height
55
Maintain electrical functions
yes
Usable cross-section
87
Wire diameter
3,9
GRM 55 300 A2
Item no.
6001078
Length
3000
Width
300
Height
55
Maintain electrical functions
yes
Usable cross-section
129
Wire diameter
4,8
