Cover for mesh cable tray, latchable A2

Cover for mesh cable tray, latchable A2

Type DGRR 50 A2 | Item no. 6001860 | EAN 4012196687190

Show all variants
Item no. / Type
Length
Width
Plate thickness

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

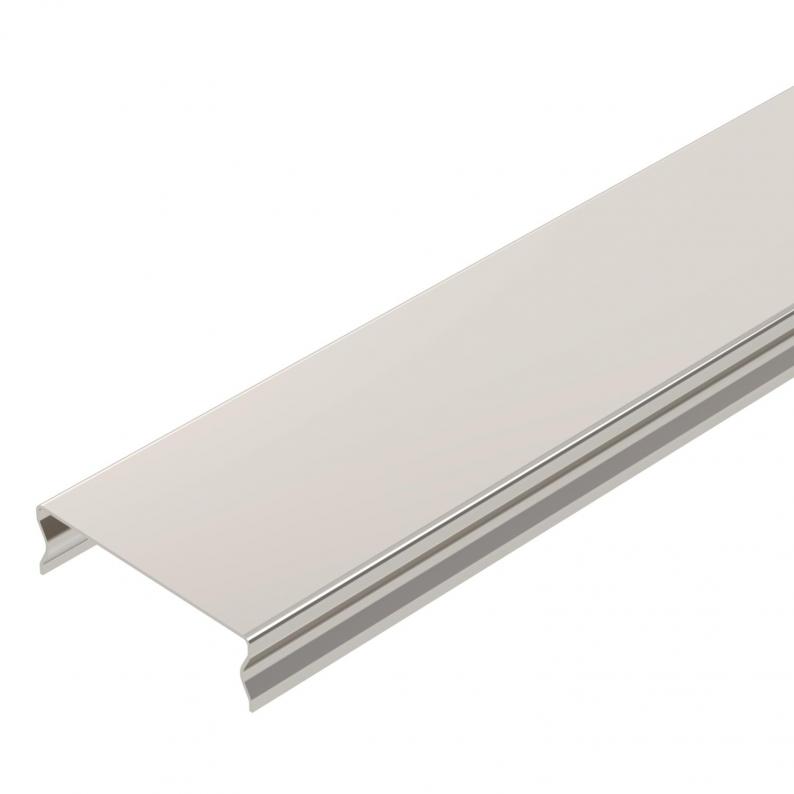

Lockable cover for mesh cable trays of type GR and GRM. Protects cables from damage, contamination and moisture from above. Suitable for the foodstuffs or chemicals industries.
When using covers outdoors, additional measures against the influence of wind may need to be taken.

With transverse bead from 400 mm width.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)

Technical data

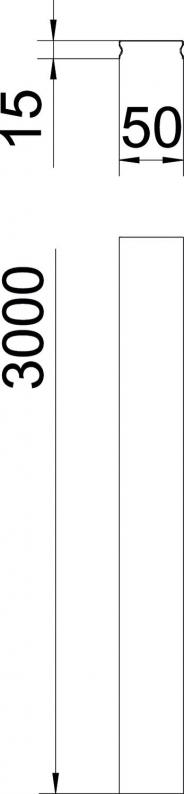

Dimensions

Length3000 mm
Width50 mm
Height15 mm
Dimension B50 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
Plate thickness0,8 mm
Suitable for mesh cable trayyes
Suitable for cable ladderno
Suitable for cable trayno
Fastening typeLocking
Dimension50x3000
SurfaceBright, treated
MaterialStainless steel 1.4301
Colourstainless steel
CO2 Footprint (GWP) Cradle-to-Gate3,2494 kg CO2e / 1 Meter

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (3)
Instructions and Aid (3)
Product images (2)
3D data downloads (2)
Tender specifications (2)

Accessories

Mounting accessories
Type
DKU A2

Smallest selling unit: 20 piece

Variants

Width
DGRR 50 A2
Item no.
6001860
Length
3000
Width
50
Plate thickness
0,8
DGRR 100 A2
Item no.
6001862
Length
3000
Width
98
Plate thickness
0,8
DGRR 150 A2
Item no.
6001864
Length
3000
Width
148
Plate thickness
0,8
DGRR 200 A2
Item no.
6001866
Length
3000
Width
198
Plate thickness
0,8
DGRR 300 A2
Item no.
6001868
Length
3000
Width
298
Plate thickness
0,8
DGRR 400 A2
Item no.
6001870
Length
3000
Width
398
Plate thickness
0,8
DGRR 500 A2
Item no.
6001872
Length
3000
Width
498
Plate thickness
0,8
DGRR 600 A2
Item no.
6001874
Length
3000
Width
598
Plate thickness
0,8
