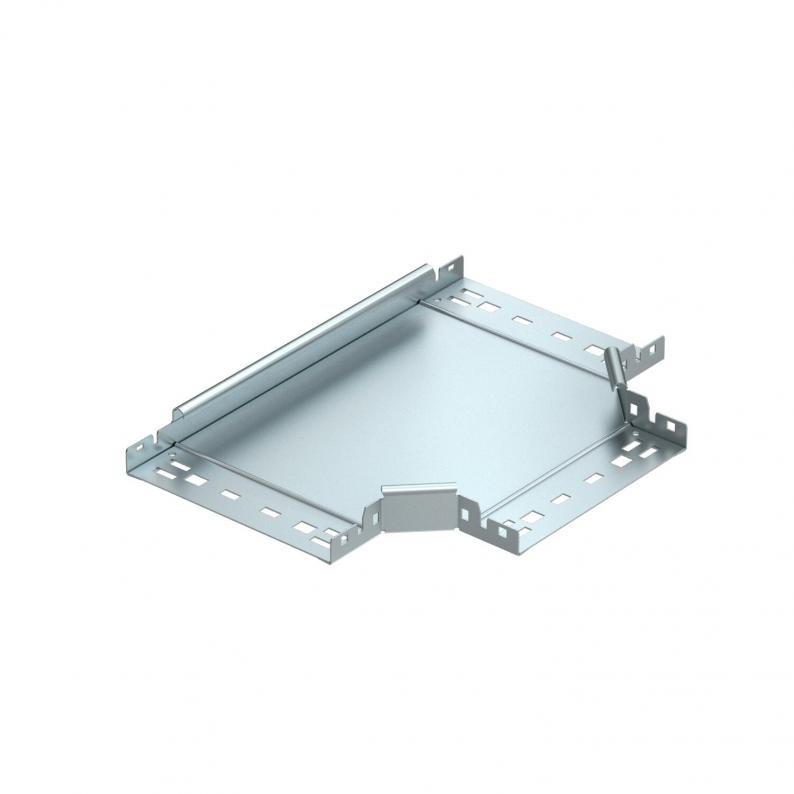

Magic T branch piece 35 FS
Type RTM 310 FS | Item no. 6041030 | EAN 4012195915386
Item no. / Type
Width
Surface
Strip galvanized
Material
Steel
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description
T branch piece with quick connector system. For all cable tray types of 35 mm side height.
Fitting in round version. The inner radius of the fitting is 150 mm.
Technical data
Dimensions
| Width | 100 mm |
|---|---|
| Height | 35 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Integrated connector |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1,25 mm |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Type | T piece horizontal |
| Rail thickness | 1,25 mm |
| Dimension | 35x100 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,6417 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Item no.
RTM 310 FS
100
Strip galvanized
Steel
6041030
RTM 320 FS
200
Strip galvanized
Steel
6041032
RTM 330 FS
300
Strip galvanized
Steel
6041034
Width
RTM 310 FS
Item no.
6041030
Width
100
Surface
Strip galvanized
Material
Steel
RTM 320 FS
Item no.
6041032
Width
200
Surface
Strip galvanized
Material
Steel
RTM 330 FS
Item no.
6041034
Width
300
Surface
Strip galvanized
Material
Steel
