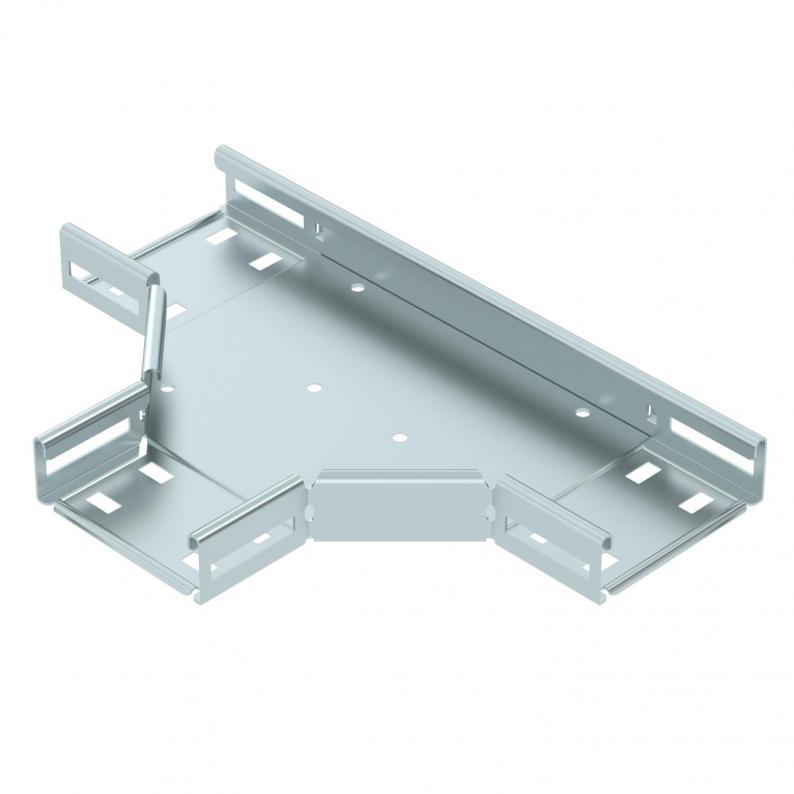

T piece 35 FS
Type RT 310 FS | Item no. 6038000 | EAN 4012197346539
Item no. / Type
Width
Surface
Strip galvanized
Material
Steel
Smallest selling unit: 1 piece
1piece
Description
T piece for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 35 mm. Screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.
Technical data
Dimensions
| Width | 100 mm |
|---|---|
| Height | 35 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Integrated connector |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 0,8 mm |
| NATO hole pattern | no |
| Width of the branch | 100 mm |
| Type | T piece horizontal |
| Rail thickness | 1,25 mm |
| Permitted temperature range, max. | 120 °C |
| Permitted temperature range, min. | -20 °C |
| Dimension | 35x100 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
| Recommended quantity of bolts | 9 St. |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,0396 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Item no.
RT 310 FS
100
Strip galvanized
Steel
6038000
RT 320 FS
200
Strip galvanized
Steel
6038002
RT 330 FS
300
Strip galvanized
Steel
6038004
Width
RT 310 FS
Item no.
6038000
Width
100
Surface
Strip galvanized
Material
Steel
RT 320 FS
Item no.
6038002
Width
200
Surface
Strip galvanized
Material
Steel
RT 330 FS
Item no.
6038004
Width
300
Surface
Strip galvanized
Material
Steel
