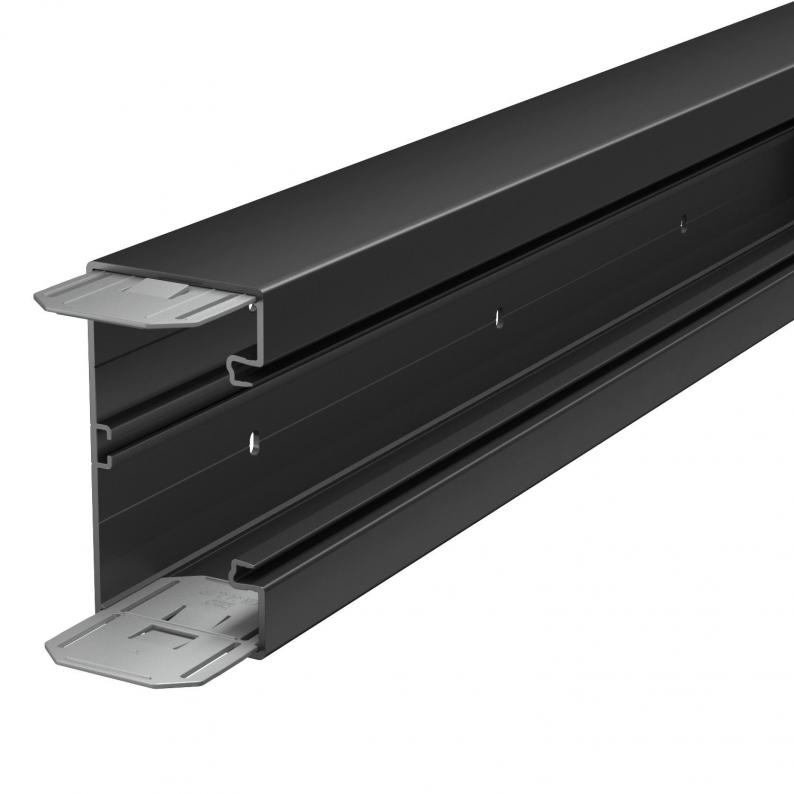

Device installation trunking Rapid 80, trunking width 130, trunking height 70

Type GK-70130SW

Item no. 6274504

EAN 4012197372118

Data sheet (PDF)

Declaration of conformity (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Show all variants

Item no. / Type

6274504 / GK-70130SW

Colour

Jet black; RAL 9005

Smallest selling unit: 2 m

Description Technical data Downloads Accessories Variants

Description

GK device installation trunking, made of lead-free PVC, suitable for installing directly on the wall or on wall panels. Fastening takes place using the perforation in the trunking. The GK device installation trunking possesses a C profile on the floor to accept a plastic partition. All the switch programmes with a support ring and support clamp design as well as Modul 45 installation devices can be installed in the accessory mounting boxes of series 71GD.... The system opening is 76.5 mm. On each trunking length, a coupling pair is pre-assembled on one side. The cover must be ordered separately.

Technical data

Dimensions

Length	2000 mm
Width	130 mm
Height	70 mm

Technical data

Mounting perforation in base	yes
Usable cross-section	7600 mm²
Halogen-free	no
Number of insertable partitions	1
Cable retaining clip	no
Protective film	yes
Duct connector	yes
Symmetrical	yes
Rectangular shape	yes
Number of covers	1
Cover width 2	0 mm
Cover width 3	0 mm
Rear panel version (inner side)	Continuous C profile
Cover mounting type	Internal
Cover supplied	no
Base perforation	With base perforation
Cover width	76,5 mm
Permitted temperature range, min.	-5 °C
Permitted temperature range, max.	60 °C
Dimension	2000x130x70
Material	Polyvinylchloride
Colour	Jet black; RAL 9005
CO2 Footprint (GWP) Cradle-to-Gate	3,0559 kg CO2e / 1 Meter
