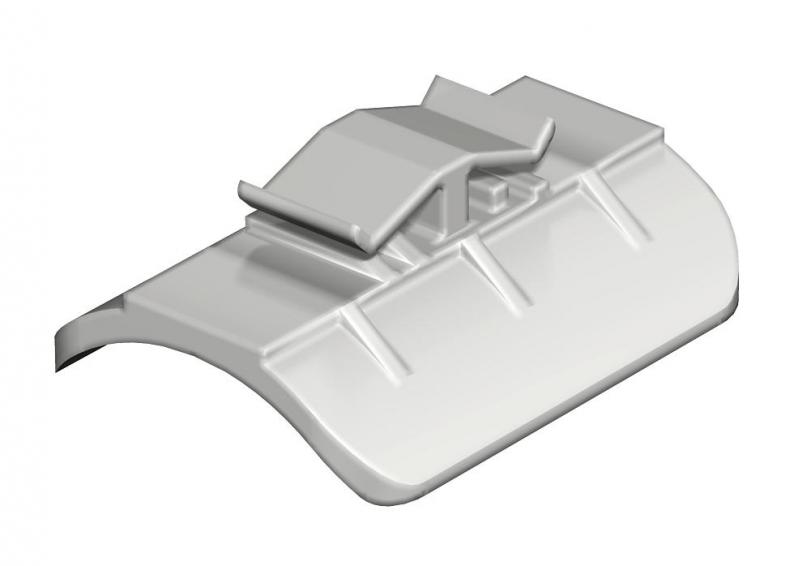

Counter-trough, plastic 16–17 mm slot width
Type 2058 34 LGR | Item no. 1195344 | EAN 4012195081616
Item no. / Type
1195344 / 2058 34 LGR
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 100 piece
100piece
Description
Counter trough 28–34 mm
Technical data

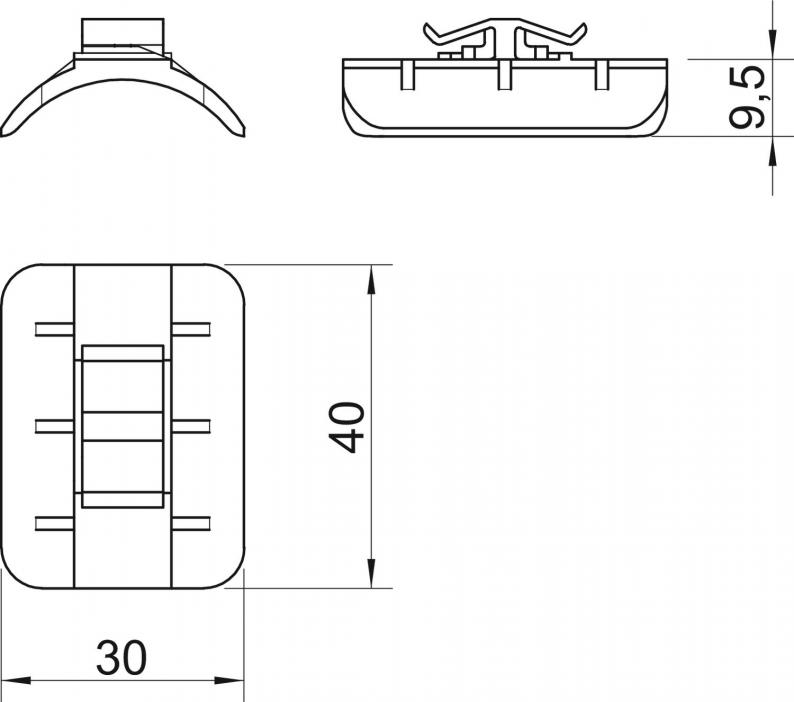

Dimensions
| Dimension L | 40 mm |
|---|---|
| Dimension B | 30 mm |
| Dimension H | 9,5 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Counter-trough/clip version | Counter sleeve |
| Suitable for max. cable diameter | 34 mm |
| Clamping range D, max. | 34 mm |
| Clamping range D, min. | 28 mm |
| Dimension | 28-34mm |
| Material | Polypropylene |
| Colour | Light grey; RAL 7035 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,012 kg CO₂e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Dimension L
Dimension B
Dimension H
Clamping range D, max.
Clamping range D, min.
Item no.
2058 34 LGR
40
30
9,5
34
28
1195344
2058 34 LGR
Item no.
1195344
Dimension L
40
Dimension B
30
Dimension H
9,5
Clamping range D, max.
34
Clamping range D, min.
28
