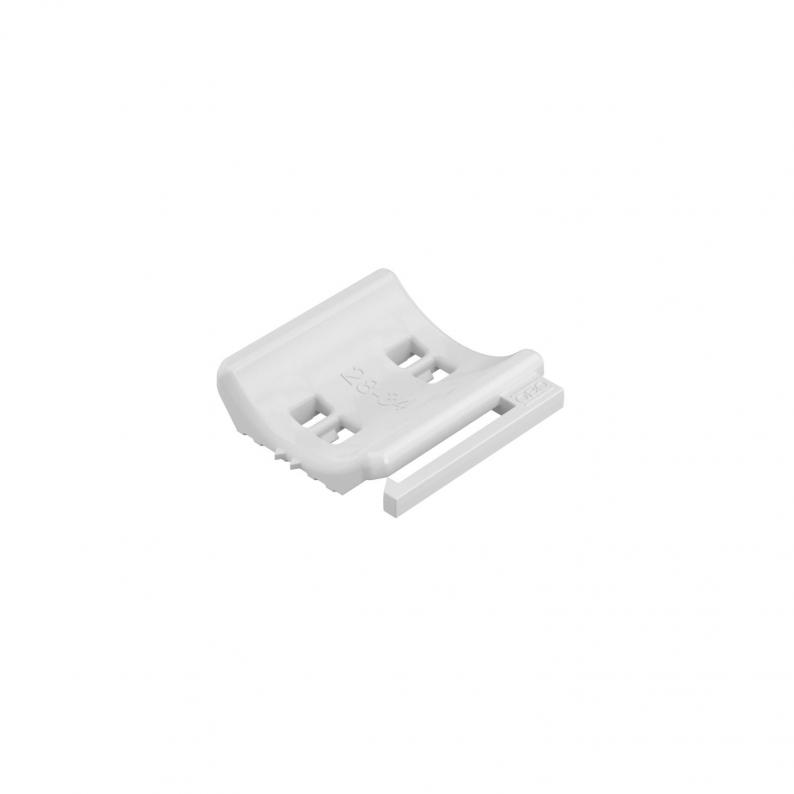

Universal counter-trough, plastic
Type 2058UW 34 LGR | Item no. 1198034 | EAN 4012196636181
Item no. / Type
Dimension L
Dimension B
Dimension H
Clamping range D, max.
Clamping range D, min.
Smallest selling unit: 100 piece
100piece
Description
Regardless of the type of rail, the counter-trough can be used by applying it onto one side of the clamp clip. Due to an intelligent contour on the backside, the counter-trough can be combined to a double trough. Retrofitting possible without the need to dismantle.
Technical data

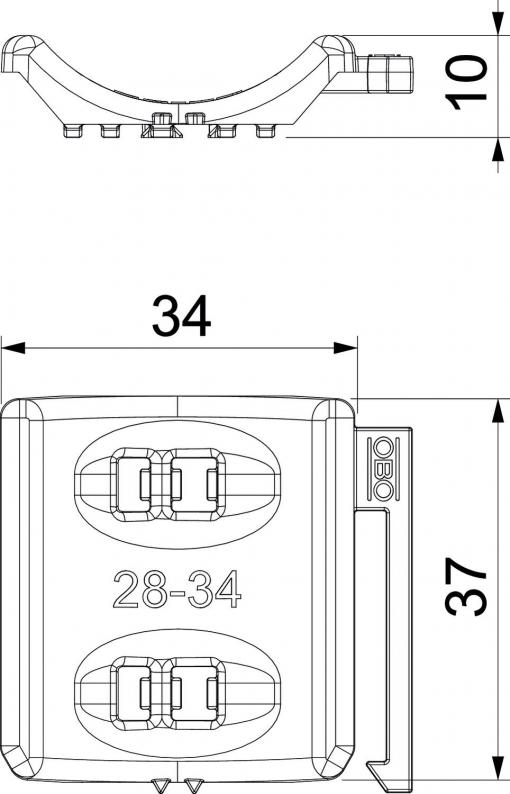

Dimensions
| Dimension L | 37 mm |
|---|---|
| Dimension B | 45,5 mm |
| Dimension H | 9,8 mm |
Technical data
| Counter-trough/clip version | Counter sleeve |
|---|---|
| Suitable for max. cable diameter | 34 mm |
| Clamping range D, max. | 34 mm |
| Clamping range D, min. | 28 mm |
| Dimension | 28-34mm |
| Material | Polypropylene |
| Colour | Light grey; RAL 7035 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,016 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Dimension L
Dimension B
Dimension H
Clamping range D, max.
Clamping range D, min.
Item no.
2058UW 16 LGR
37
21,5
5,8
16
12
1198016
2058UW 22 LGR
37
27,5
6,8
22
16
1198022
2058UW 28 LGR
37
33,5
8,3
28
22
1198028
2058UW 34 LGR
37
45,5
9,8
34
28
1198034
Dimension B
Dimension H
Clamping range D, max.
Clamping range D, min.
2058UW 16 LGR
Item no.
1198016
Dimension L
37
Dimension B
21,5
Dimension H
5,8
Clamping range D, max.
16
Clamping range D, min.
12
2058UW 22 LGR
Item no.
1198022
Dimension L
37
Dimension B
27,5
Dimension H
6,8
Clamping range D, max.
22
Clamping range D, min.
16
2058UW 28 LGR
Item no.
1198028
Dimension L
37
Dimension B
33,5
Dimension H
8,3
Clamping range D, max.
28
Clamping range D, min.
22
2058UW 34 LGR
Item no.
1198034
Dimension L
37
Dimension B
45,5
Dimension H
9,8
Clamping range D, max.
34
Clamping range D, min.
28
