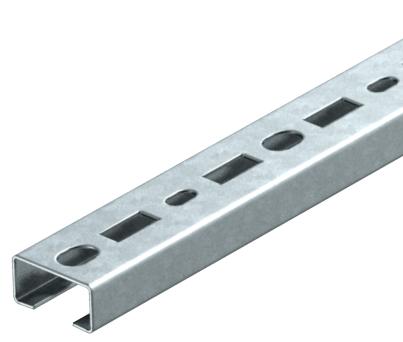

CML3518 profile rail, slot 17 mm, FS, perforated
Type CML3518P0200FS | Item no. 1104268 | EAN 4012195038290
Item no. / Type
Length
Width
Height
Material thickness
Surface
Strip galvanized
Material
Steel
Smallest selling unit: 25 piece
25piece
Description
Light-duty profile rail, perforated, slot width 17 mm.
Technical data
Dimensions
| Length | 200 mm |
|---|---|
| Width | 35 mm |
| Height | 18 mm |
| Dimension L | 200 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Rustproof steel, pickled | no |
| Slot width | 17 mm |
| Material thickness | 1,25 mm |
| Static value A | 0,88 cm² |
| Static value ly | 0,41 cm⁴ |
| Static value lz | 1,81 cm⁴ |
| Static value Wy | 0,41 cm³ |
| Static value Wz | 1,03 cm³ |
| Profile shape | C profile |
| Type of perforation | Perforated back |
| Drill hole spacing, centre | 25 mm |
| With perforation | yes |
| Breakable | no |
| With toothing | no |
| Version for | Single profile |
| Dimension | 200x35x18 |
| Surface | Strip galvanized |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3643 kg CO₂e / 1 Piece |
