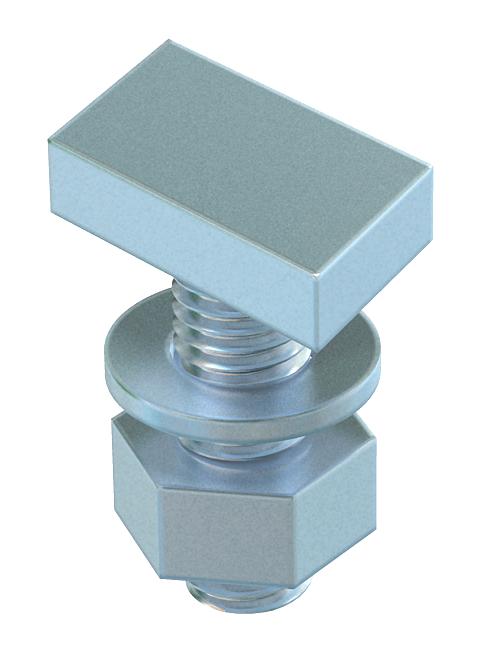

Hammer-head bolt ZL
Type ACMHB M8x30 ZL | Item no. 1148060 | EAN 4012196488872
Item no. / Type
1148060 / ACMHB M8x30 ZL
Thread
M 8 x 30mm
Smallest selling unit: 50 piece
50piece
Description
Hammer-head bolt for use with CM3015, CM3518 and AM3518 profile rails
Technical data

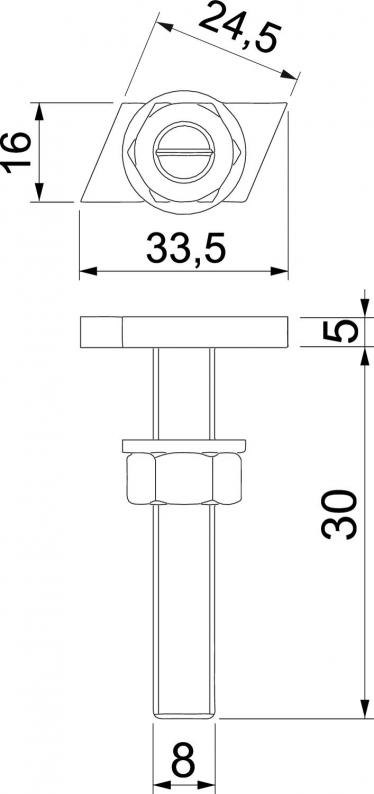

Dimensions
| Length | 33,5 mm |
|---|---|
| Width | 16 mm |
| Height | 5 mm |
| Dimension L | 30 mm |
Technical data
| Thread metric | 8 |
|---|---|
| Thread | M 8 x 30mm |
| Suitable for mounting rail | yes |
| Dimension | M8x30mm |
| Surface | Zinc slat |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0901 kg CO₂e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Length
Width
Height
Thread
Item no.
ACMHB M8x30 ZL
33,5
16
5
M 8 x 30mm
1148060
ACMHB M8x30 ZL
Item no.
1148060
Length
33,5
Width
16
Height
5
Thread
M 8 x 30mm
