Cable tray RKS-Magic® 60 FT

Cable tray RKS-Magic® 60 FT

Type RKSM 610 FT | Item no. 6047612 | EAN 4012195903895

Show all variants
Item no. / Type
Length
Width
Height
Maintain electrical functions
Plate thickness
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

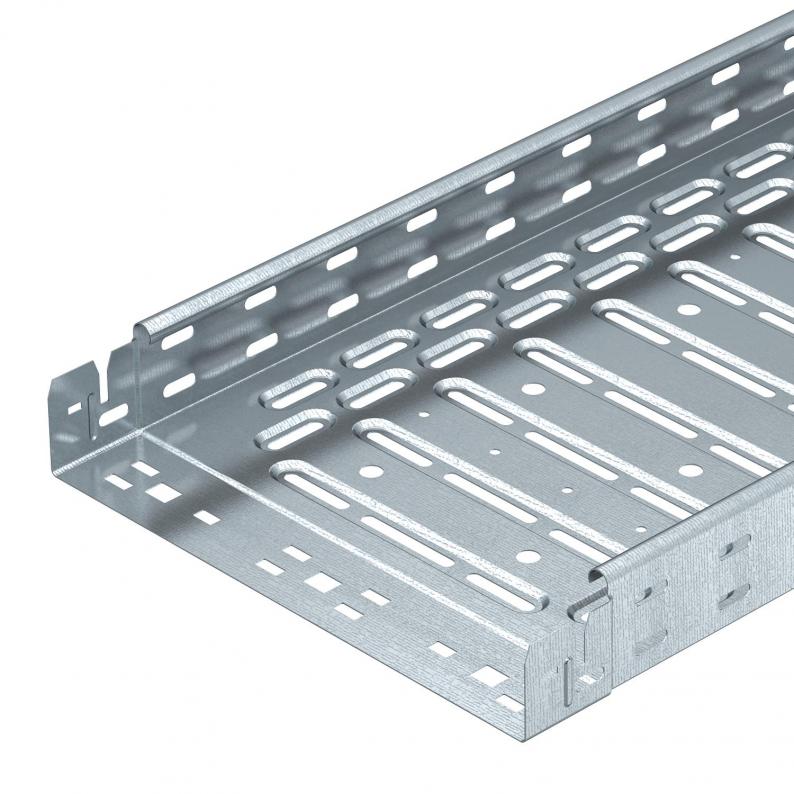

Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.

The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.

The perforation for direct threaded rod suspension has a diameter of 11 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Continuous equipotential bonding is guaranteed without additional components.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Function maintenance class E30
  • Function maintenance class E60
  • Function maintenance class E90
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length3050 mm
Width100 mm
Height60 mm
Dimension y50 mm
Dimension B100 mm

Technical data

Maintain electrical functionsyes
Side perforationyes
Connector versionIntegrated connector
Wide-span versionno
Usable cross-section58 cm²
Rustproof steel, pickledno
Plate thickness1 mm
Mounting perforation in baseyes
NATO hole patternno
Usable cross-section5800 mm²
With coverno
Base perforation1.3
Dimension60x100x3050
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Fire protectionMaintenance of electrical function of cable-specific support structure
Magnetic shield insulation with cover50 dB
Magnetic shield insulation without cover20 dB
Load test type according to IEC 61537Type II
Usable length3000 mm
Type of connector, cable support systemClick fastening
CO2 Footprint (GWP) Cradle-to-Gate4,5534 kg CO2e / 1 Meter

Loads

Support spacing 2.0 m0,6 kN/m
Support spacing 2.5 m0,4 kN/m
Support spacing 1.0 m1,2 kN/m
Support spacing 1.5 m0,9 kN/m
NEMA load class8AA
Load diagram, cable tray, type RKSM 60

Support width in m

Rail bend in mm at permitted kN/m

Permitted cable tray/ladder load in kN/m without man load
