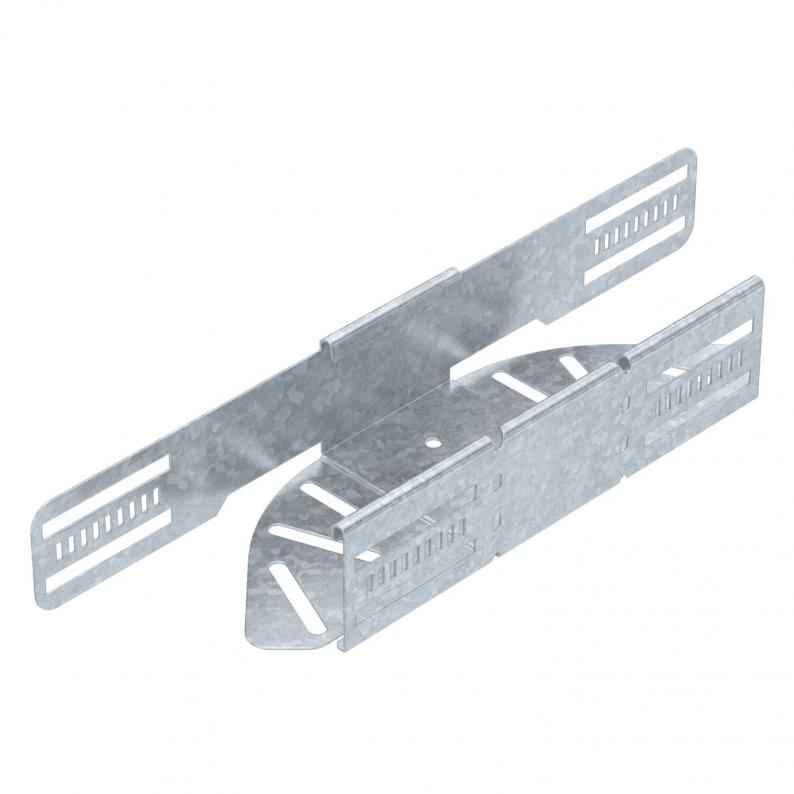

Bend, angle-adjustable, 60 FT

Bend, angle-adjustable, 60 FT

Type RB W 610 FT | Item no. 6037120 | EAN 4012197341596

Show all variants
Item no. / Type
Width
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

Angle-adjustable bend for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 60 mm. Adjustable angle 0–90°. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width100 mm
Height60 mm
Dimension L364 mm
Dimension B100 mm

Technical data

Maintain electrical functionsno
Side perforationyes
Connector versionIntegrated connector
Wide-span versionno
Rustproof steel, pickledno
Plate thickness1 mm
Mounting perforation in baseyes
NATO hole patternno
Material thickness, floor plate1 mm
Bend (angle)Adjustable
Change of directionHorizontal
With coverno
TypeAdjustable bend_complete
Rail thickness1,25 mm
Permitted temperature range, max.120 °C
Permitted temperature range, min.-20 °C
Dimension60x100
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Type of connector, cable support systemscrewed/clamped
Recommended quantity of bolts10 St.
CO2 Footprint (GWP) Cradle-to-Gate1,6469 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (5)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Accessories

Mounting accessories
Type
DOP A2

Smallest selling unit: 10 piece

Type
FRSB 6x12 F

Smallest selling unit: 100 piece

Variants

Width
RB W 610 FT
Item no.
6037120
Width
100
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RB W 615 FT
Item no.
6037122
Width
150
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RB W 620 FT
Item no.
6037124
Width
200
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RB W 630 FT
Item no.
6037126
Width
300
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RB W 640 FT
Item no.
6037128
Width
400
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RB W 650 FT
Item no.
6037130
Width
500
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RB W 660 FT
Item no.
6037132
Width
600
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
