Cable tray RKS-Magic® 35 FS
Type RKSM 310 FS | Item no. 6047417 | EAN 4012195390848
Item no. / Type
Length
Width
Height
Plate thickness
Maintain electrical functions
no
Surface
Strip galvanized
Material
Steel
Colour
zinc
Smallest selling unit: 3 m
3m
Description

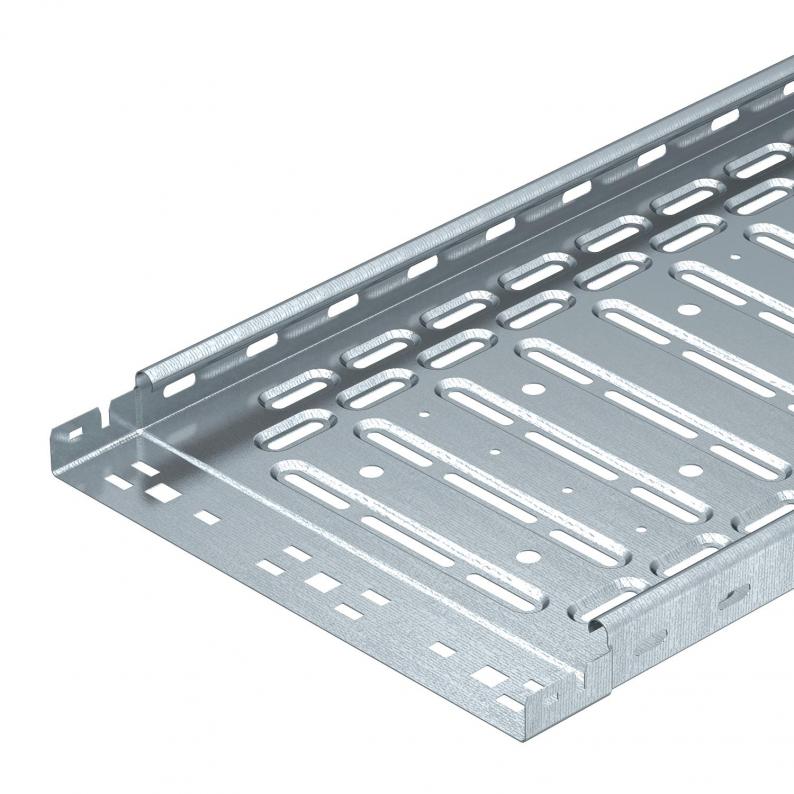

Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.
The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.
The perforation for direct threaded rod suspension has a diameter of 11 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.
The perforation for direct threaded rod suspension has a diameter of 11 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Continuous equipotential bonding is guaranteed without additional components.
Technical data

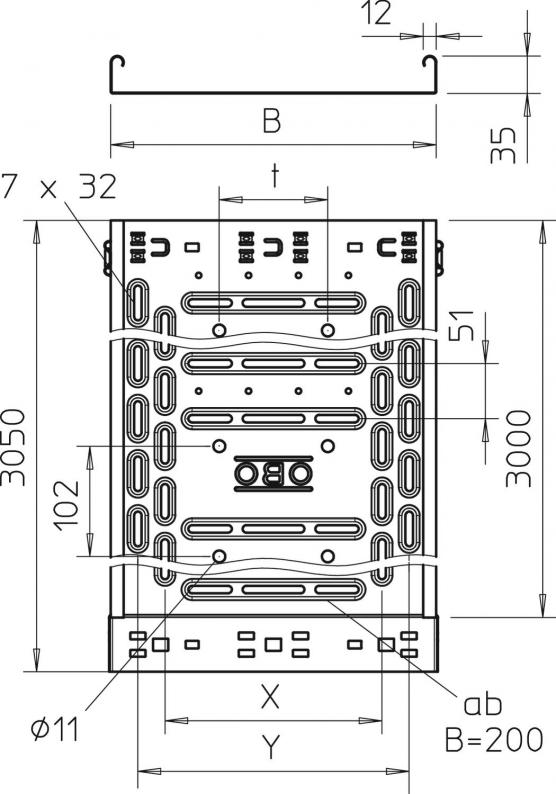

Dimensions
| Length | 3050 mm |
|---|---|
| Width | 100 mm |
| Height | 35 mm |
| Dimension y | 50 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | yes |
| Connector version | Integrated connector |
| Wide-span version | no |
| Usable cross-section | 33 cm² |
| Rustproof steel, pickled | no |
| Plate thickness | 0,75 mm |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Usable cross-section | 3300 mm² |
| With cover | no |
| Base perforation | 1 |
| Dimension | 35x100x3050 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Load test type according to IEC 61537 | Type II |
| Usable length | 3000 mm |
| Type of connector, cable support system | Click fastening |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,5373 kg CO2e / 1 Meter |
Loads
| Support spacing 2.0 m | 0,3 kN/m |
|---|---|
| Support spacing 2.5 m | 0,15 kN/m |
| Support spacing 1.0 m | 1,1 kN/m |
| Support spacing 3.0 m | 0,1 kN/m |
| Support spacing 1.5 m | 0,5 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
