Cable ladder SLG 45, 3 m FS

Cable ladder SLG 45, 3 m FS

Type SLG 430 NS 3 FS | Item no. 6200543 | EAN 4012195063582

Show all variants
Item no. / Type
Length
Width
Rail thickness
Maintain electrical functions
no
Surface
Strip galvanized
Material
Steel

This item is a discontinued product!

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

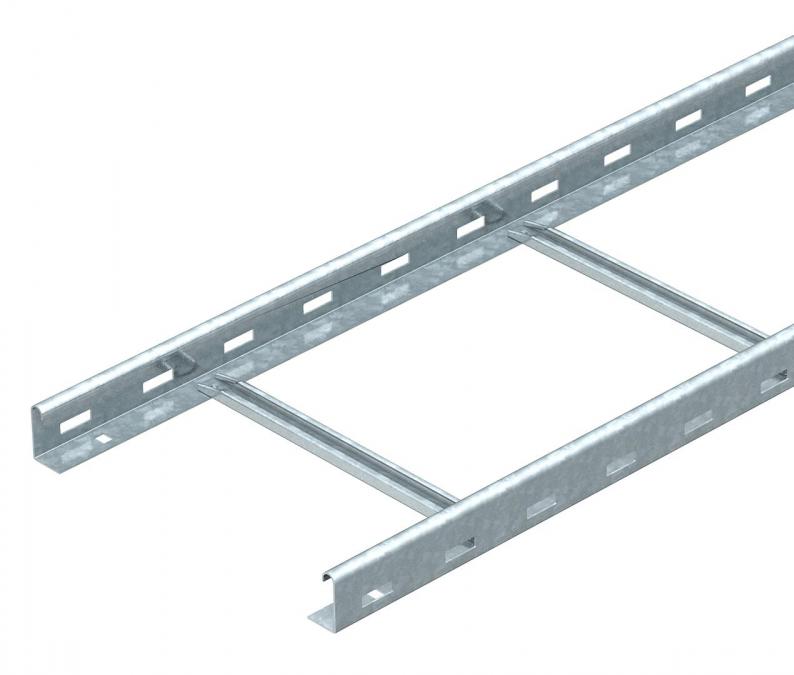

Cable ladder with perforated side rail of side height 45 mm with riveted C profile rungs, open in an upwards direction.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.

The cable ladder is shipped folded up.

You can find the appropriate U clamp of type 2056N in the vertical ladder systems chapter.

  • Magnetic shield insulation
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable ladder, side height 45 mm
  • CO₂ footprint (PCF)

Technical data

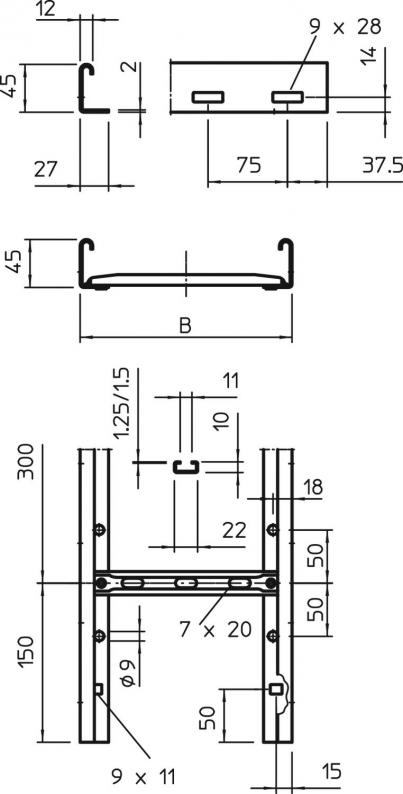

Dimensions

Length3000 mm
Width300 mm
Height45 mm
Dimension B300 mm

Technical data

Maintain electrical functionsno
Side perforationyes
Wide-span versionno
Usable cross-section103 cm²
Rustproof steel, pickledno
Usable cross-section10300 mm²
Rung distance300 mm
Version of the rungsProfile perforated
Side rail versionFlat profile
Fastening of rungBlind riveted
Side wall versionProfile (open)
Dimension45x300x3000
Rail thickness2 mm
Dimension45x300x3000
SurfaceStrip galvanized
MaterialSteel
CO2 Footprint (GWP) Cradle-to-Gate6,906 kg CO₂e / 1 Meter

Loads

Support spacing 2.0 m2 kN/m
Support spacing 3.0 m1 kN/m
Support spacing 4.0 m0,55 kN/m
Support spacing 1.5 m2,75 kN/m
Load diagram, cable ladder, type SLG 45 NS

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width
