Straight connector FS
Type LVG 45 FS | Item no. 6200832 | EAN 4012195065197
Item no. / Type
6200832 / LVG 45 FS
Surface
Strip galvanized
Material
Steel
This item is a discontinued product!
Smallest selling unit: 10 piece
10piece
Description

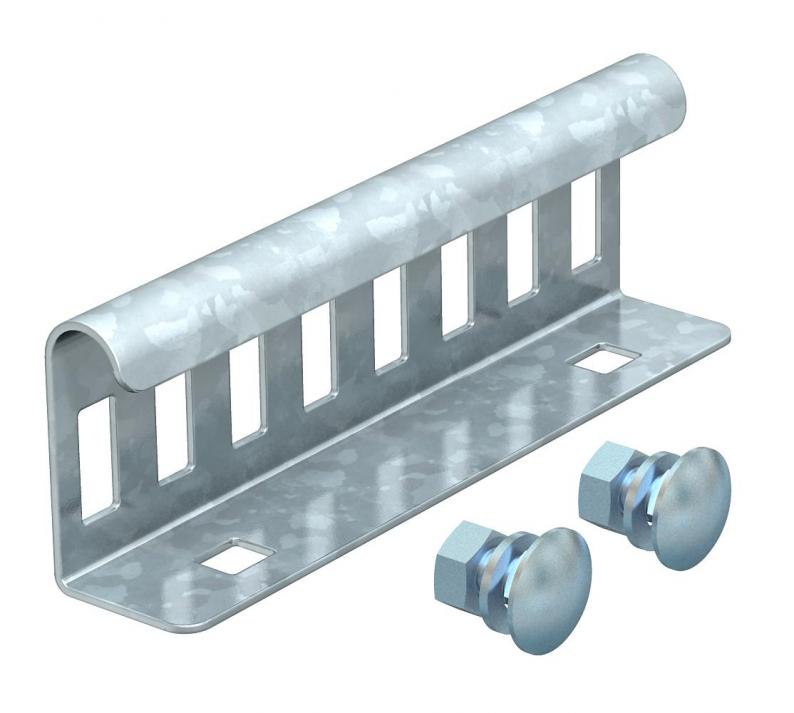

Straight connector as external connector to connect cable ladders and fittings with a side height of 45 mm and continuous side perforation.
The bolt fastening ensures the continuity of the equipotential bonding.
Technical data

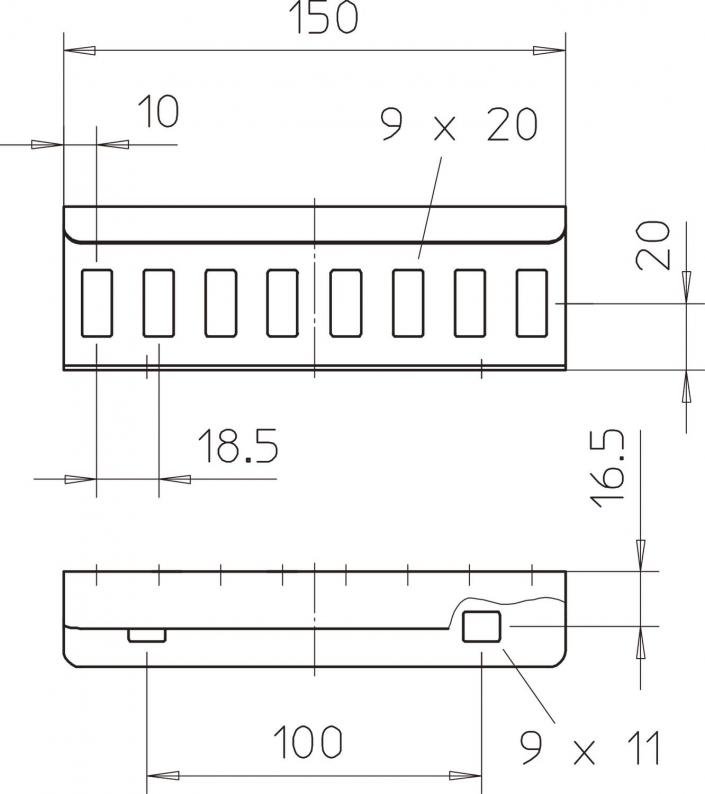

Dimensions
| Length | 150 mm |
|---|---|
| Height | 49 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 1,5 mm |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | no |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Dimension | 49x150 |
| Suitable for cable tray system height | 45 mm |
| Version for | Straight connector |
| Connection type | Screw connector |
| Dimension | 49x150 |
| Surface | Strip galvanized |
| Material | Steel |
