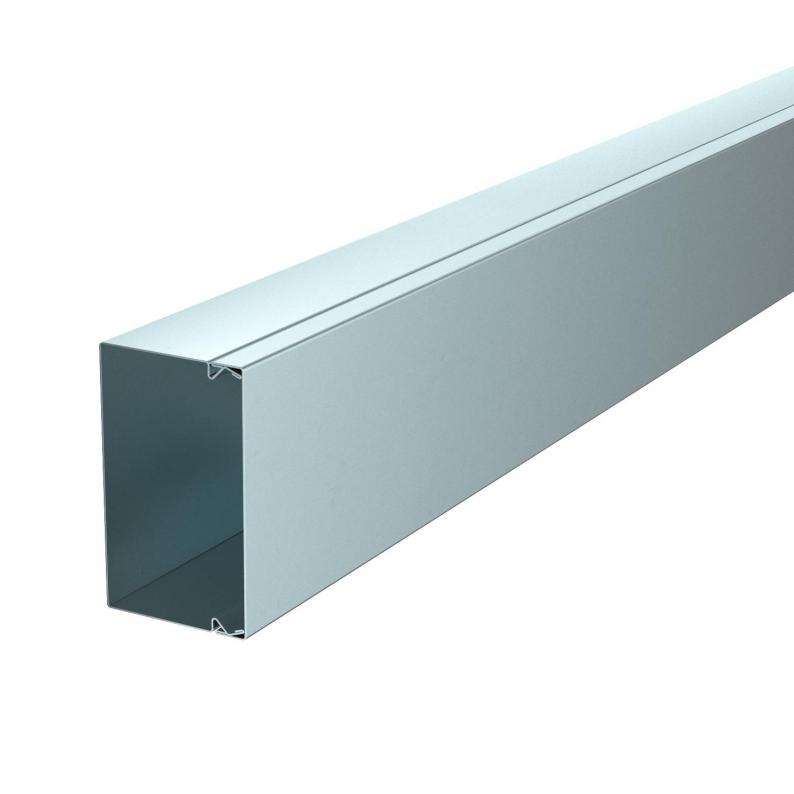

Cable duct, type LKM 60100

Type LKM60100FS | Item no. 6247113 | EAN 4012196312139

Data sheet (PDF)

RoHS Declaration of conformity (PDF)

REACH Declaration of conformity (PDF)

Declaration of conformity (PDF)

Show all variants

Item no. / Type

6247113 / LKM60100FS

Surface

Strip galvanized

Material

Steel

Smallest selling unit: 2 m

Description Technical data Downloads Accessories Variants

Description

Duct cover and base with base perforation. Equipotential bonding is guaranteed between the cover and the base without any additional aids. The LKM cable duct, type LKM 60100, has been tested for the maintenance of electrical function as a routing system according to DIN 4102 Part 12. Please note the cable types tested in the BSS fire protection systems division!
The base contains loop perforation allowing the attachment of the partition.

Technical data

Dimensions

Length	2000 mm
Width	100 mm
Height	64 mm

Technical data

Maintain electrical functions	yes
Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	36
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)	32
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)	32
Usable cross-section	6038 mm²
Halogen-free	yes
Number of fixed partitions	0
Number of insertable partitions	1
Cable retaining clip	no
Protective film	no
Duct connector	no
Protection rating	IP30
Delivery on a roll	no
Protection rating IK code	IK10
Transparent	no
Fastening type	Base perforation
Version, cable trunking cover	Loose
Base perforation	with base perforation
Permitted temperature range, max.	90 °C
Permitted temperature range, min.	-5 °C
Dimension	60x100x2000
Surface	Strip galvanized
Material	Steel
Colour	zinc
Antibacterial treatment	no
CO2 Footprint (GWP) Cradle-to-Gate	0,2336 kg CO2e / 1 Meter
