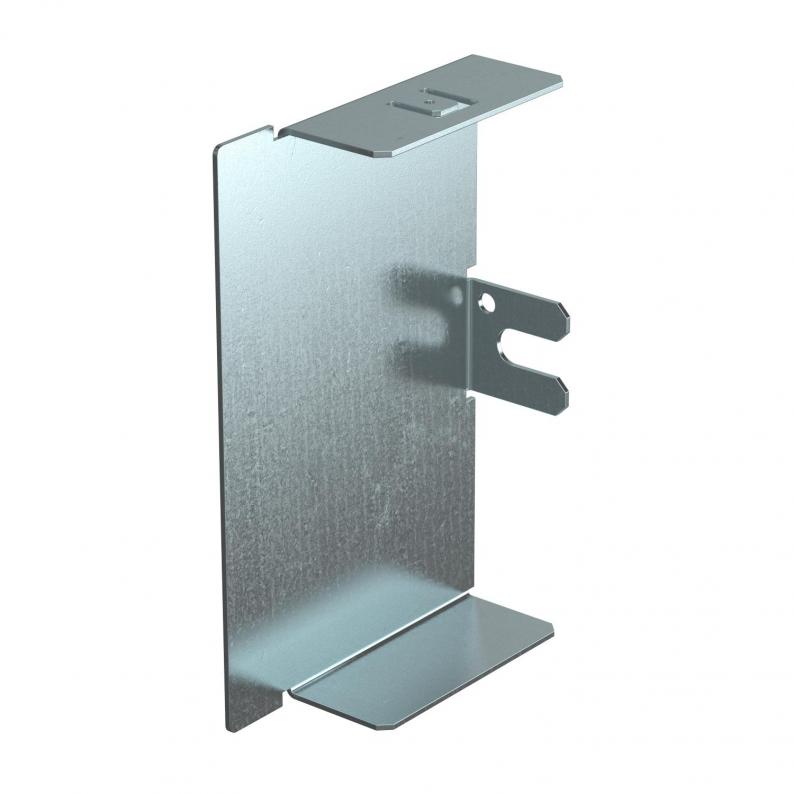

End piece, for cable duct type LKM 60100
Type LKM E60100FS | Item no. 6248306 | EAN 4012196575596
Item no. / Type
6248306 / LKM E60100FS
Colour
zinc
Smallest selling unit: 0 translation missing
0translation missing
Description
End piece for closing the LKM ducts.
Technical data

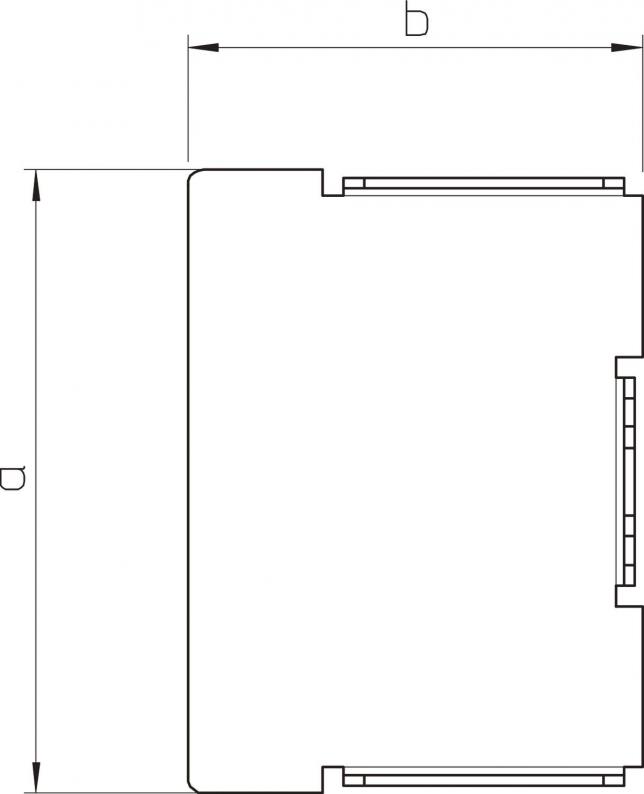

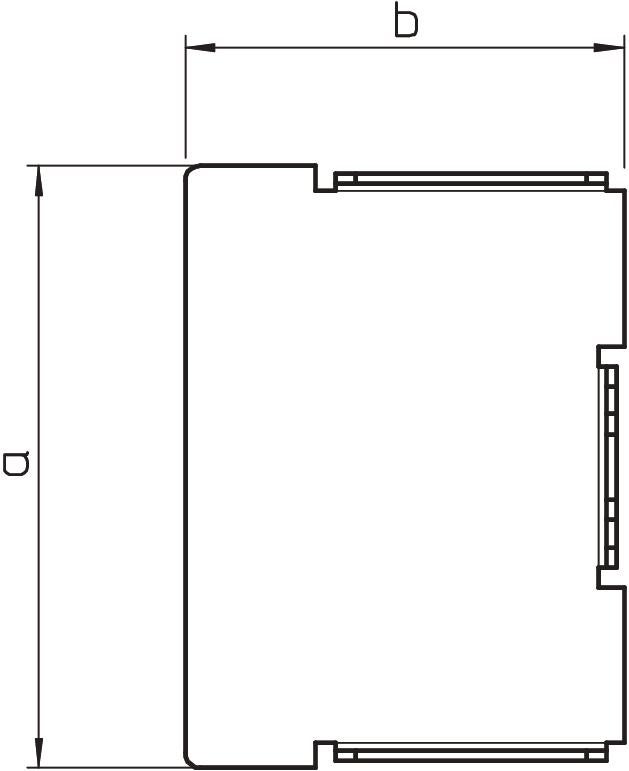

Dimensions
| Length | 21 mm |
|---|---|
| Width | 100 mm |
| Height | 64 mm |
| Dimension b | 64 mm |
| Dimension a | 100 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Halogen-free | yes |
| Protective film | no |
| Protection rating | IP30 |
| Protection rating IK code | IK10 |
| Version for | Left/right |
| Fastening type | Lockable |
| Permitted temperature range, max. | 90 °C |
| Permitted temperature range, min. | -5 °C |
| Dimension | 60x100mm |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2867 kg CO2e / 1 Piece |
