Beam clamp, for threaded rod
Type BCTR 4-8 M6 | Item no. 1483661 | EAN 4012196502486
Item no. / Type

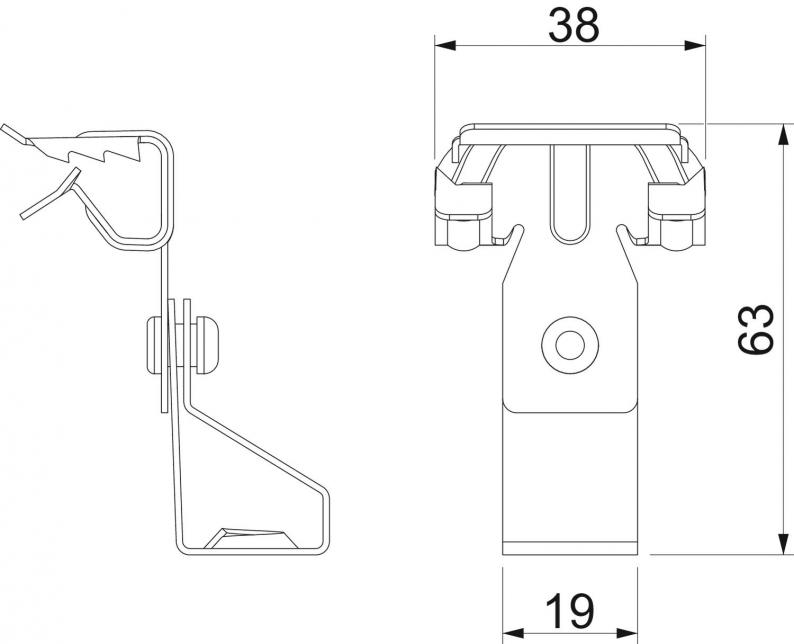

Dimension L
Dimension B
Flange thickness F max.
Flange thickness F min.
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 50 piece
50piece
Description
Beam clamp for knocking in with threaded rod seat as individual fastening solution on the beam.
Technical data
Dimensions
| Dimension L | 63 mm |
|---|---|
| Dimension B | 38 mm |
Technical data
| Thread metric | 6 |
|---|---|
| Thread | M6 |
| Hinged | no |
| Hinge, adjustable | no |
| Breaking load | 0,65 kN |
| Fastening type | Clamp |
| Connection type/component | Thread |
| Flange thickness F max. | 8 mm |
| Flange thickness F min. | 4 mm |
| Dimension | 4-8mm |
| Surface | Zinc slat |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Instructions and Aid (1)
Product images (3)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Dimension L
Dimension B
Flange thickness F max.
Flange thickness F min.
Item no.
BCTR 4-8 M6
63
38
8
4
1483661
BCTR 8-14 M6
65
38
14
8
1483663
BCTR 4-8 M8
63
38
8
4
1483665
BCTR 8-14 M8
65
38
14
8
1483667
BCTR 4-8 M10
63
38
8
4
1483669
BCTR 8-14 M10
65
38
14
8
1483671
Dimension L
Flange thickness F max.
Flange thickness F min.
BCTR 4-8 M6
Item no.
1483661
Dimension L
63
Dimension B
38
Flange thickness F max.
8
Flange thickness F min.
4
BCTR 8-14 M6
Item no.
1483663
Dimension L
65
Dimension B
38
Flange thickness F max.
14
Flange thickness F min.
8
BCTR 4-8 M8
Item no.
1483665
Dimension L
63
Dimension B
38
Flange thickness F max.
8
Flange thickness F min.
4
BCTR 8-14 M8
Item no.
1483667
Dimension L
65
Dimension B
38
Flange thickness F max.
14
Flange thickness F min.
8
BCTR 4-8 M10
Item no.
1483669
Dimension L
63
Dimension B
38
Flange thickness F max.
8
Flange thickness F min.
4
BCTR 8-14 M10
Item no.
1483671
Dimension L
65
Dimension B
38
Flange thickness F max.
14
Flange thickness F min.
8
