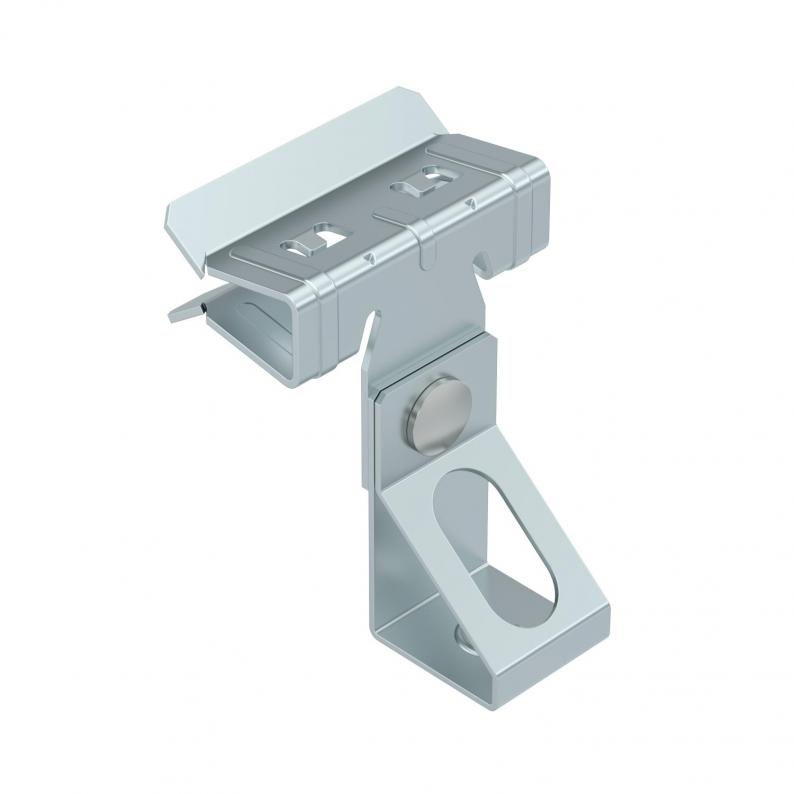

Support clamp, with threaded rod seat

Support clamp, with threaded rod seat

Type SCTR 4-10 M6 | Item no. 1488321 | EAN 4012197392079

Show all variants
Item no. / Type
Length
Width
Height
Dimension L
Flange thickness F max.
Flange thickness F min.

Smallest selling unit: 50 piece

DescriptionTechnical dataDownloadsVariants

Description

Support clamp with threaded rod seat for individual mounting solutions. Fastening through knocking onto steel girders.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity

Technical data

Dimensions

Length54 mm
Width40 mm
Height43 mm
Dimension L54 mm

Technical data

Thread metric6
Hingedno
Hinge, adjustableno
Breaking load0,65 kN
Fastening typeClamp
Connection type/componentThread
Flange thickness F max.10 mm
Flange thickness F min.4 mm
Dimension4-10mm
SurfaceZinc slat
MaterialSteel
Colourzinc

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)

Variants

Length
Height
Dimension L
Flange thickness F max.
Flange thickness F min.
SCTR 4-10 M6
Item no.
1488321
Length
54
Width
40
Height
43
Dimension L
54
Flange thickness F max.
10
Flange thickness F min.
4
SCTR 10-15 M6
Item no.
1488323
Length
60
Width
40
Height
44
Dimension L
60
Flange thickness F max.
15
Flange thickness F min.
10
SCTR 4-10 M8
Item no.
1488325
Length
54
Width
40
Height
44
Dimension L
54
Flange thickness F max.
10
Flange thickness F min.
4
SCTR 10-15 M8
Item no.
1488327
Length
60
Width
40
Height
45
Dimension L
60
Flange thickness F max.
15
Flange thickness F min.
10
SCTR 4-10 M10
Item no.
1488329
Length
54
Width
40
Height
44
Dimension L
54
Flange thickness F max.
10
Flange thickness F min.
4
SCTR 10-15 M10
Item no.
1488331
Length
60
Width
40
Height
45
Dimension L
60
Flange thickness F max.
15
Flange thickness F min.
10
