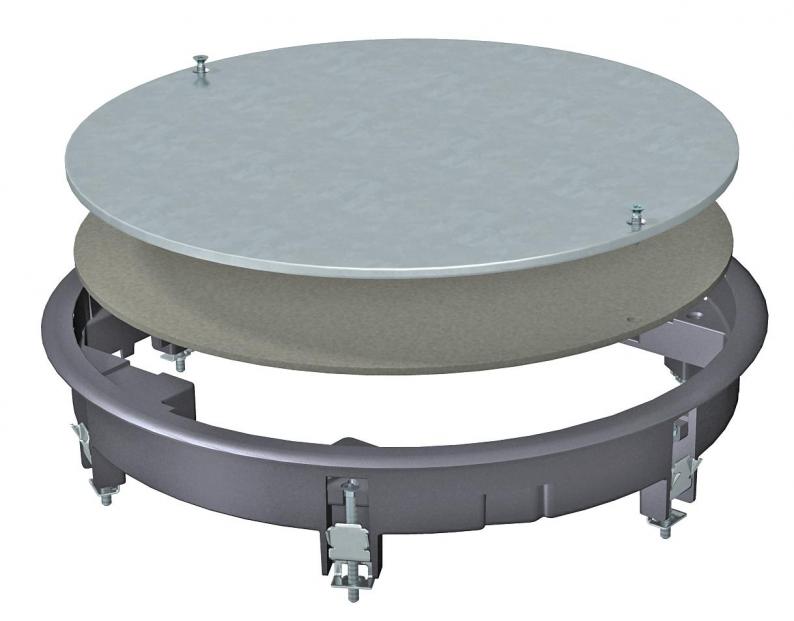

ZESRA7 inspection cover

ZESRA7 inspection cover

Type ZESRA7 10U
|
Item no. 7406824
|
EAN 4012195109730
Show all variants
Item no. / Type
7406824 / ZESRA7 10U
Nominal size for device installation units
R7

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

Draw box insert for blank closing of a round mounting opening of nominal size R7 in trunking systems and in raised and cavity floors. With universal fastening bracket.

Carpet protection frame made of die-cast aluminium.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length294 mm
Width294 mm
Height54 mm

Materials and Packaging

Packaging made completely from recycled cardboard.yes

Technical data

Floor height, min.64 mm
Floor covering thickness10 mm
Suitable for screed-covered underfloor ductsyes
Number of installable devices0
Installation diameter274
Suitable for underfloor ductsyes
Suitable for cavity floor installationyes
Suitable for raised floor installationyes
Floor careDry
Frame versionCarpet protection frame
Suitable for wet careno
Installation depth64 mm
External diameter294 mm
Nominal size for device installation unitsR7
Vertical load, small areato 3,000 N
Vertical load, large areato 10,000 N
Version forRound
Clamping range D, min.15 mm
Clamping range D, max.37 mm
DimensionØ274x54,3
MaterialCast aluminium
Floor covering thickness max.15 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate14,8174 kg CO2e / 1 Piece
