ZESR7 inspection cover
Type ZESR7 10U 7011
|Item no. 7406788
|EAN 4012195109600
Item no. / Type
Floor covering thickness
Colour
Floor covering thickness max.
Nominal size for device installation units
R7
Smallest selling unit: 1 piece
1piece
piece
Description

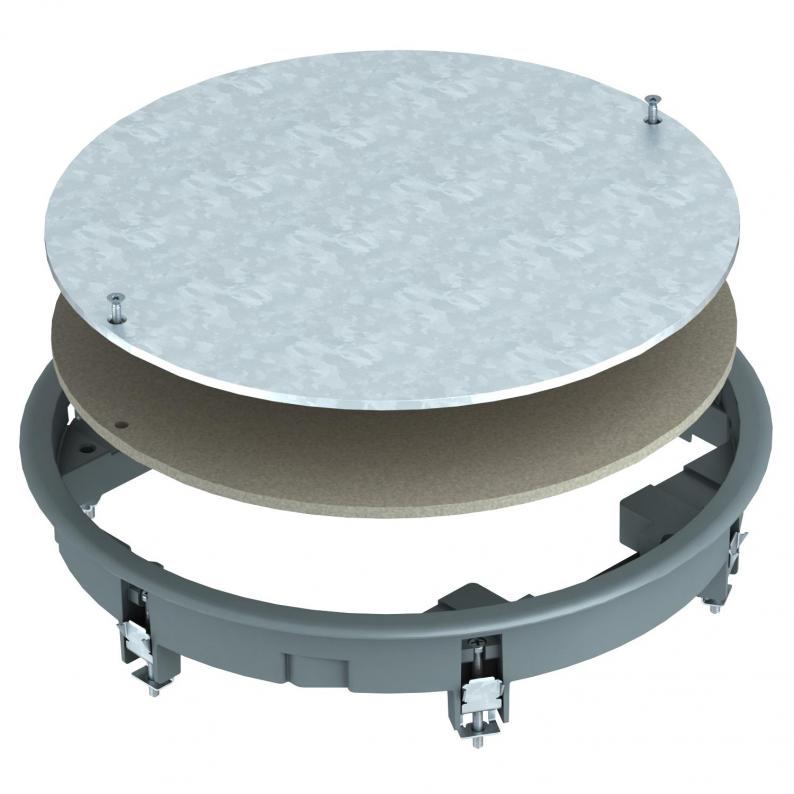

Junction box insert for blank closing of a round mounting opening of nominal size R7 in trunking systems and in raised and cavity floors for indoor use. With universal fixing bracket.
Polyamide carpet protection frame.
Polyamide carpet protection frame.
Technical data
Dimensions
| Length | 294 mm |
|---|---|
| Width | 294 mm |
| Height | 54 mm |
Materials and Packaging
| Packaging made completely from recycled cardboard. | yes |
|---|
Technical data
| Floor height, min. | 64 mm |
|---|---|
| Floor covering thickness | 10 mm |
| Suitable for screed-covered underfloor ducts | yes |
| Number of installable devices | 0 |
| Installation diameter | 274 |
| Suitable for underfloor ducts | yes |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Dry |
| Frame version | Carpet protection frame |
| Suitable for wet care | no |
| Installation depth | 64 mm |
| External diameter | 294 mm |
| Nominal size for device installation units | R7 |
| Vertical load, small area | to 3,000 N |
| Vertical load, large area | to 5,000 N |
| Version for | Round |
| Clamping range D, min. | 14 mm |
| Clamping range D, max. | 36 mm |
| Dimension | Ø294x33 |
| Material | Polyamide |
| Colour | Iron grey; RAL 7011 |
| Floor covering thickness max. | 15 mm |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 9,26 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Certificates (1)
Product images (2)
3D data downloads (2)
Tender specifications (1)
Variants
Type
Floor covering thickness
Nominal size for device installation units
Colour
Floor covering thickness max.
Item no.
ZESR7 10U 7011
10
R7
Iron grey; RAL 7011
15
7406788
ZESR7 10U 9011
10
R7
Graphite black; RAL 9011
15
7406792
Colour
ZESR7 10U 7011
Item no.
7406788
Floor covering thickness
10
Nominal size for device installation units
R7
Colour
Iron grey; RAL 7011
Floor covering thickness max.
15
ZESR7 10U 9011
Item no.
7406792
Floor covering thickness
10
Nominal size for device installation units
R7
Colour
Graphite black; RAL 9011
Floor covering thickness max.
15
