Wiring trunking, type LKVH N 75075

Wiring trunking, type LKVH N 75075

Type LKVH N 75075
|
Item no. 6178559
|
EAN 4012195803799
Show all variants
Item no. / Type
6178559 / LKVH N 75075
Fastening type
Base perforation
Colour
Light grey; RAL 7035

Smallest selling unit: 16 m

m

Description

Halogen-free wiring duct according to DIN EN 50085-2-3, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a DIN duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tapering in the side slots prevents the cables from falling out. Tested to DIN EN 50085-2-3. Special lengths on request.
  • Underwriters Laboratories Inc., USA + CSA, Canada
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

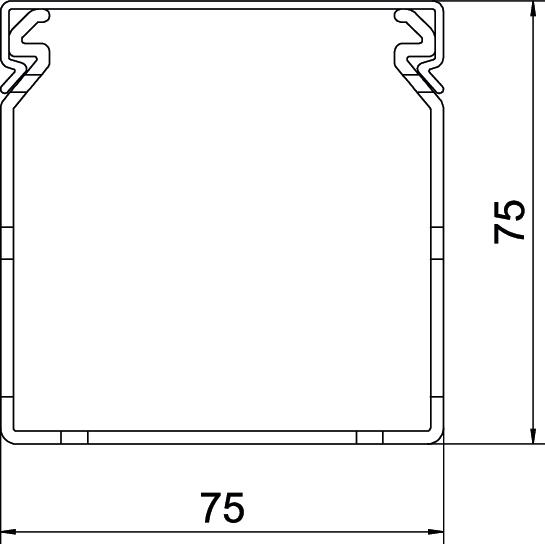

Dimensions

Length2000 mm
Width75 mm
Height75 mm

Technical data

Usable cross-section47,95 cm²
Diameter0 mm
Halogen-freeyes
Self-extinguishingyes
Side wall versionSlotted
Creepage current-resistantyes
Flexibleno
With coveryes
Slot spacing12,5 mm
Slot width5 mm
Fastening typeBase perforation
Permitted temperature range, min.-25 °C
Permitted temperature range, max.90 °C
Dimension75x75x2000
MaterialPolycarbonate/Acrylnitrile-butadiene-styrene
ColourLight grey; RAL 7035

Environmental Data

4,6423 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate4,6423 kg CO2e / 1 Meter

Accessories

Mounting accessories

Item no. 6178520

Spreading rivet, KSN 1
Type
KSN1

Smallest selling unit: 100 piece

piece

Item no. 6178525

Body-bound rivet, KSN 22
Type
KSN22

Smallest selling unit: 100 piece

piece

Item no. 6178527

Plastic rivet tool KNW1
Type
KNW1

Smallest selling unit: 1 piece

piece
