Wall and support bracket MWA 12 FS

Wall and support bracket MWA 12 FS

Type MWA 12 21S FS
|
Item no. 6424732
|
EAN 4012196636976
Show all variants
Item no. / Type
Width
F in kN
Colour
zinc

Smallest selling unit: 1 piece

piece

Description

Light-duty wall and support bracket.

Including truss-head bolt M10 x 25 for fastening to

U supports.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

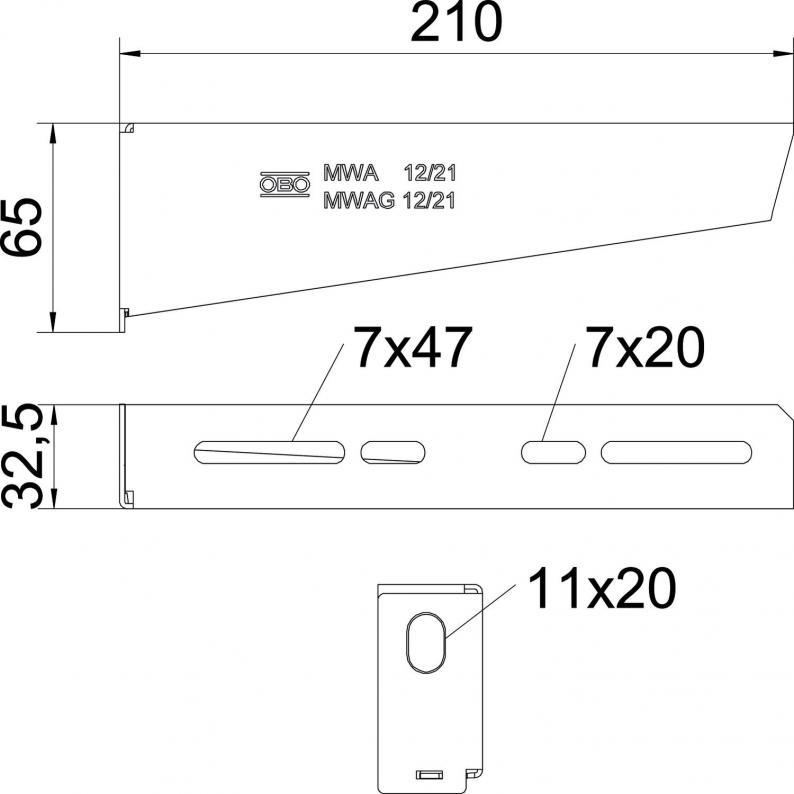

Dimensions

Length32,5 mm
Width210 mm
Height65 mm
Dimension A32,5 mm
Dimension B210 mm
Dimension H65 mm
Dimension W210 mm

Technical data

Maintain electrical functionsyes
Rustproof steel, pickledno
Angle range, min.90 mm
Angle range, max.90 mm
Hole diameter11 mm
Version forWall and support bracket
F in kN1,2 kN
DimensionB210mm
SurfaceStrip galvanized
MaterialSteel
Colourzinc
Load diagram, bracket, type MWA 12

Bending of the bracket tip at permitted bracket load

Permitted bracket load in kN without man load

Load curve with bracket lengths in mm

Environmental Data

0,7386 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
CO2 Footprint (GWP) Cradle-to-Gate0,7386 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (5)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

Width
MWA 12 11S FS
Item no.
6424716
Width
110
F in kN
1,2
Colour
zinc
MWA 12 21S FS
Item no.
6424732
Width
210
F in kN
1,2
Colour
zinc
MWA 12 31S FS
Item no.
6424740
Width
310
F in kN
1,2
Colour
zinc
MWA 12 41S FS
Item no.
6424759
Width
410
F in kN
1,2
Colour
zinc
