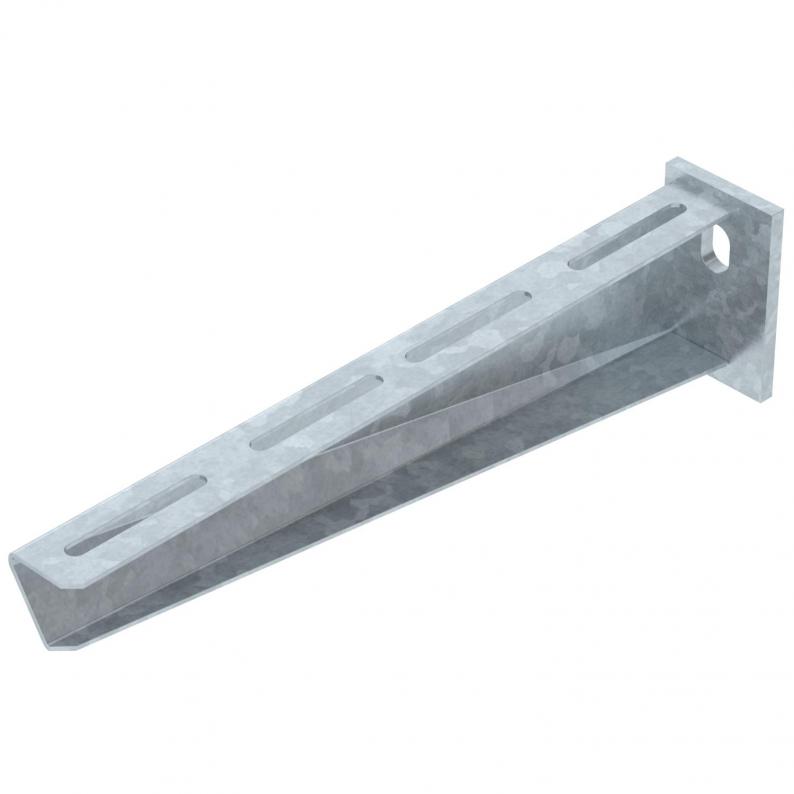

Wall and support bracket AW 30 FT
Type AW 30 31 FT
|Item no. 6419747
|EAN 4012196206773
Item no. / Type
Width
F in kN
Colour
zinc
Smallest selling unit: 1 piece
1piece
piece
Description
Medium-duty wall and support bracket with welded head plate.
Fastening of the bracket to the U support of width 400 mm or greater using a hexagonal bolt through both sides of the support. Please insert suitable spacers.
Technical data

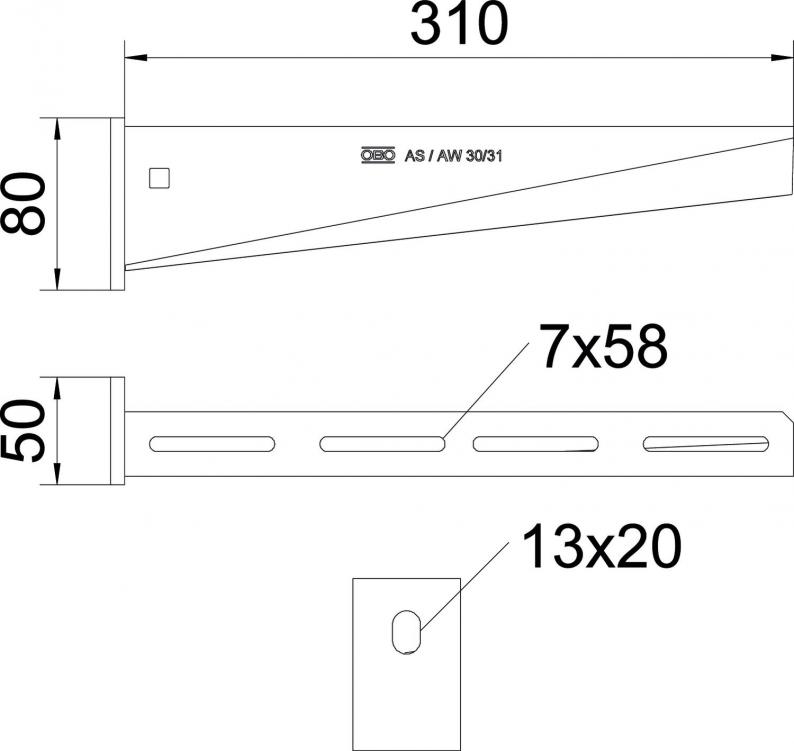

Dimensions
| Length | 50 mm |
|---|---|
| Width | 310 mm |
| Height | 80 mm |
| Dimension A | 50 mm |
| Dimension B | 310 mm |
| Dimension H | 80 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Rustproof steel, pickled | no |
| Angle range, min. | 90 mm |
| Angle range, max. | 90 mm |
| Hole diameter | 13 mm |
| EPD article | yes |
| Version for | Wall and support bracket |
| F in kN | 3 kN |
| Dimension | B310mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,4164 kg CO2e / 1 Piece |
Bending of the bracket tip at permitted bracket load
Permitted bracket load in kN without man load
Load curve with bracket lengths in mm
