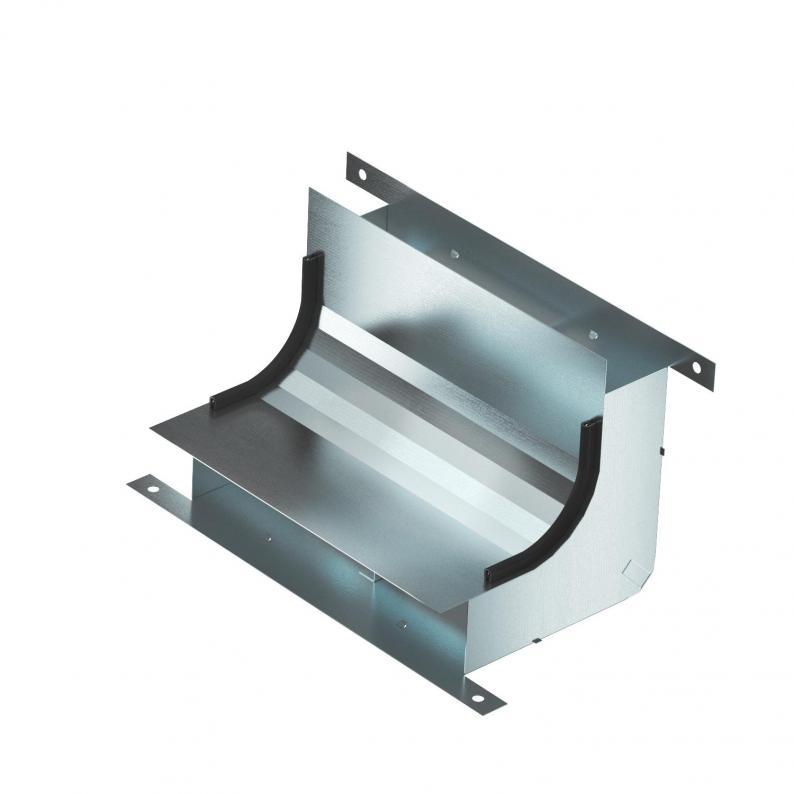

Vertical bend, two-compartment, height 58 mm
Type KV2 25058-2
|Item no. 7400643
|EAN 4012197349592
Item no. / Type
7400643 / KV2 25058-2
Smallest selling unit: 1 piece
1piece
piece
Description
Vertical bend, two-compartment, for vertical direction changes of screed-covered underfloor ducts (wall connections, supplies). Only compatible with the UZD250-4/350-4
Technical data
Dimensions
| Length | 178 mm |
|---|---|
| Width | 250 mm |
| Height | 58 mm |
| Dimension b | 140 mm |
| Dimension a | 110 mm |
| Dimension h | 58 mm |
Technical data
| Number of compartments | 2 St. |
|---|---|
| Number of fixed partitions | 1 |
| Cross-section, draw a | 5800 mm² |
| Cross-section, draw b | 7500 mm² |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, min. | 250 mm |
| Duct height, min. | 58 mm |
| Dimension | 330x177,7x177,7 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
3,4833 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 3,4833 kg CO2e / 1 Piece |
|---|
