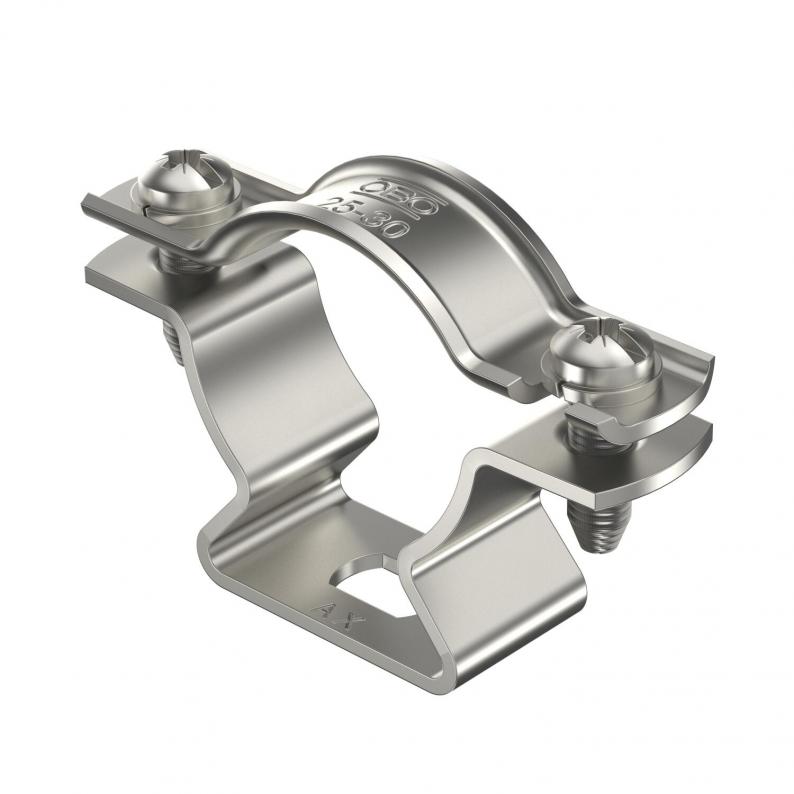

VA cable bracket for isCon® conductor for mounting on roof/wall structures
Type isCon H 26 VA | Item no. 5408064 | EAN 4012195872696
Item no. / Type
5408064 / isCon H 26 VA
Smallest selling unit: 20 piece
20piece
Description
• For isCon® conductor for mounting on roof/wall structures
• With sprung discs to protect the screws against loosening
• With sprung discs to protect the screws against loosening
Technical data

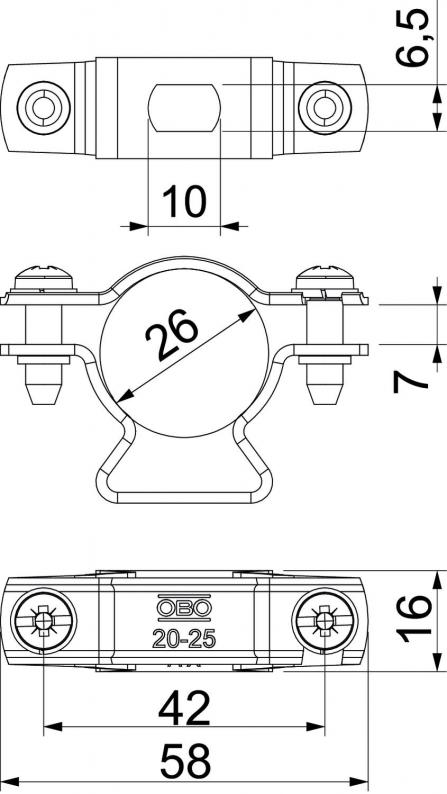

Dimensions
| Length | 59 mm |
|---|---|
| Dimension L | 7 mm |
| Dimension A | 58 mm |
| Dimension B | 42 mm |
| Dimension H | 37 mm |
| Dimension d min. | 26 mm |
| Dimension t | 16 mm |
Technical data
| Dimension | Ø26mm |
|---|---|
| Material | Stainless steel 1.4301 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2533 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Certificates (1)
Instructions and Aid (1)
Product images (3)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Dimension d min.
Item no.
isCon H 26 VA
26
5408064
isCon H 26 VA
Item no.
5408064
Dimension d min.
26
