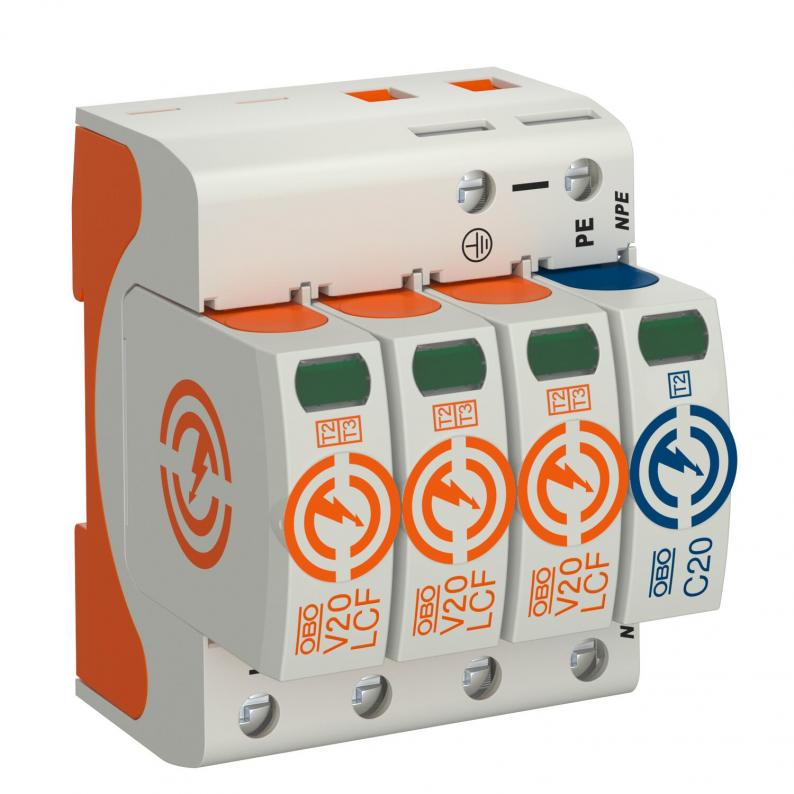

V20 surge arrester, leakage current-free, 3-pole + NPE
Type V20-LCF-3+1-280 | Item no. 5095536 | EAN 4012196818860



Item no. / Type
Maximum continuous voltage AC
Pole version
Protection rating
IP20
Smallest selling unit: 1 piece
1piece
Description
Surge arrester, type 2
• For surge voltage protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)
• Discharge capacity to 30 kA (8/20) per pole through a high-performance series connection of varistor and spark gap
• Modular connectable arrester with cut-off unit and visual status display
• Locking mechanism with vibration protection and voltage keying
• Plastic to UL 94 V-0
• The remote signalling variants (FS) have a potential-free changeover contact for remote signalling
Application: Equipotential bonding in main and sub-distributions.
• For surge voltage protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)
• Discharge capacity to 30 kA (8/20) per pole through a high-performance series connection of varistor and spark gap
• Modular connectable arrester with cut-off unit and visual status display
• Locking mechanism with vibration protection and voltage keying
• Plastic to UL 94 V-0
• The remote signalling variants (FS) have a potential-free changeover contact for remote signalling
Application: Equipotential bonding in main and sub-distributions.
Technical data
Technical data

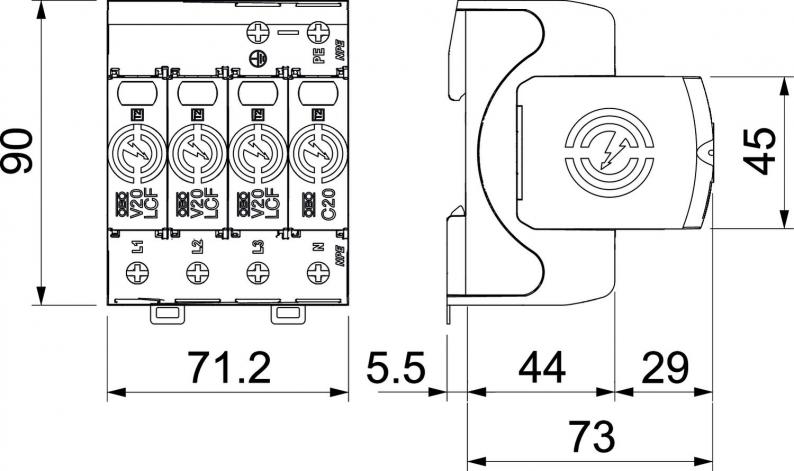

Network form | Other |
---|---|
Blow-out | no |
Signalling on device | Visual |
Protection rating | IP20 |
Maximum continuous voltage (L-N) | 280 V |
Nominal discharge current (8/20 µs) [L-N] | 20 kA |
Nominal discharge current (8/20 µs) [N-PE] | 40 kA |
Housing material surge protection components | PA UL 94 V-0 |
Maximum discharge current (8/20 μs) [L-N] | 30 kA |
Maximum discharge current (8/20 μs) [N-PE] | 60 kA |
Remote signalling | no |
Test class, type 2 | yes |
Nominal voltage AC (50/60 Hz) | 230 V |
Integrated back-up fuse | no |
Protection level [L-N] | ≤1,5 |
Maximum continuous voltage AC | 280 V |
Nominal discharge current (8/20 µs) | 20 kA |
Pole version | 3+N/PE |
Installation type | DIN rail 35 mm |
Max. mains-side overcurrent protection | 160 A gL/gG |
Residual voltage [L-N] @ 5 kA | 1 kV |
Switching power AC | 230 V; 0,5 A |
Switching power DC | 230 V; 0,1 A / 75 V; 0,5 A |
Short-circuit resistance for max. mains-side overcurrent protection | 50 kA eff |
Residual voltage [L-N] @ 1 kA | 0,8 kV |
TOV voltage [L-N] ‒ withstand mode ‒ 5 s | 335 V |
TOV voltage [L-N] ‒ fail safe mode ‒ 120 min. | 440 V |
TOV voltage [N-PE] ‒ withstand mode ‒ 200 ms | 1200 V |
SPD to UL 1449 | Type 4 |
Minimum distance | 1,5 mm |
Approvals | VDE, KEMA, UL, ÖVE |
Conductor cross-section, flexible (fine-wire), max. | 2 AWG |
Short-circuit resistant | yes |
DC network form | no |
IT network form | no |
TN network form | yes |
TN-C network form | yes |
TN-C-S network form | yes |
TN-S network form | yes |
TT network form | no |
Other network form | no |
Operating temperature, max. | 80 °C |
Operating temperature, min. | -40 °C |
Torque | 4 Nm |
SPD to IEC 61643-1 | Class II |
SPD to EN 61643-11 | Type 2 |
Maximum discharge current (8/20 μs) | 30 kA |
Maximum back-up fuse | 160 A |
Permitted temperature range, max. | 80 °C |
Permitted temperature range, min. | -40 °C |
Dimension | 280V |
CO2 Footprint (GWP) Cradle-to-Gate | 2,1109 kg CO2e / 1 Piece |
Connectivity options
Conductor cross-section, flexible (fine-wire), max. | 35 mm² |
---|---|
Conductor cross-section, flexible (fine-wire), min. | 1,5 mm² |
Connection cross-section, FM terminals, max. | 1,5 mm² |
Connection cross-section, FM terminals, min. | 0,5 mm² |
Connection cross-section, FM terminals, max. | 16 AWG |
Connection cross-section, FM terminals, min. | 21 AWG |
Arrester surge current (8/20 µs) [total] | 60 kA |
Conductor cross-section, rigid (single-wire/multiwire), min. | 1,5 mm² |
Conductor cross-section, rigid (single-wire/multiwire), max. | 2 AWG |
Conductor cross-section, rigid (single-wire/multiwire), min. | 16 AWG |
