UZD250-3 for screed height 115−170 mm
Type UZD 115170 250-3
|Item no. 7410043
|EAN 4012195431640
Item no. / Type
7410043 / UZD 115170 250-3
Cover version
Universal
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description

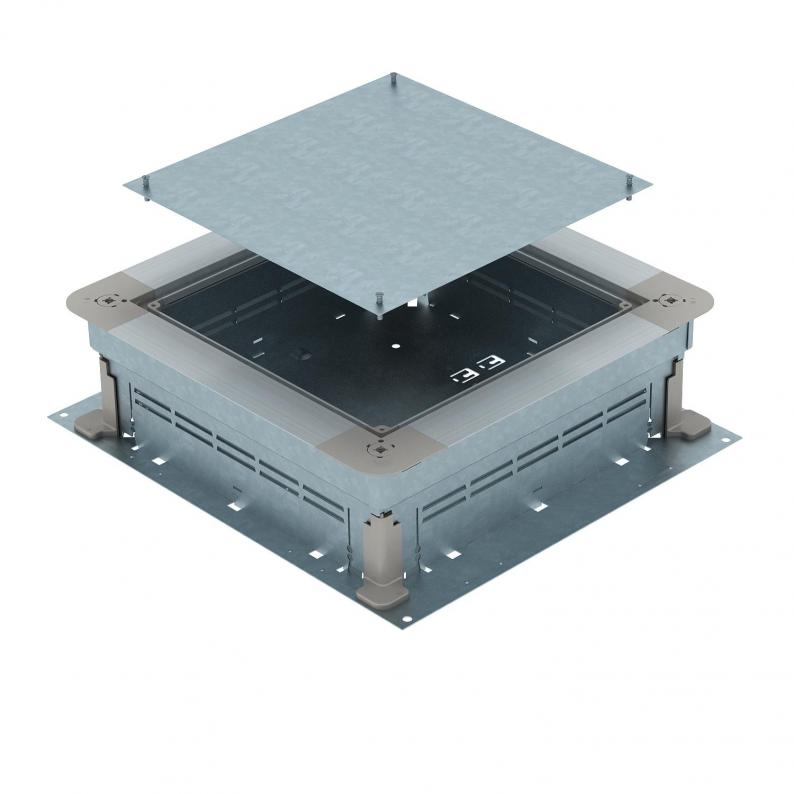

Underfloor junction and branch box for screed-covered underfloor installation ducts with sheet steel side walls. To mount installation units in the mounting lid (to be ordered separately). Height can be infinitely adjusted to the nominal screed height (rapid adjustment possible) and the screed can be worked flush to the screed scraping edge. With noise decoupling option after screed laying and can be used with system accessories, also for heavy-duty application.
Side walls prepared for duct width 250 mm.
Technical data
Technical data
| Screed height, min. | 115 mm |
|---|---|
| Screed height, max. | 170 mm |
| Cover version | Universal |
| Height-adjustment range, min. | 115 mm |
| Height-adjustment range, max. | 170 mm |
| Minimum screed height | 115 |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, min. | 190 mm |
| Trunking width, max. | 250 mm |
| Installation opening for on-floor tank | no |
| Seal installation option | yes |
| Decouplable | yes |
| Floor plate | yes |
| Suitable for underfloor ducts | no |
| Lowerable to be flush-floor | no |
| For pipe connection | no |
| Installation space, min. | 10,62 dm³ |
| Installation space, max. | 16,16 dm³ |
| Nominal size | 250 mm |
| Duct height, min. | 28 mm |
| Trunking height, max. | 48 mm |
| Dimension | 410x367x115 |
| Surface | Strip galvanized |
| Material | Steel |

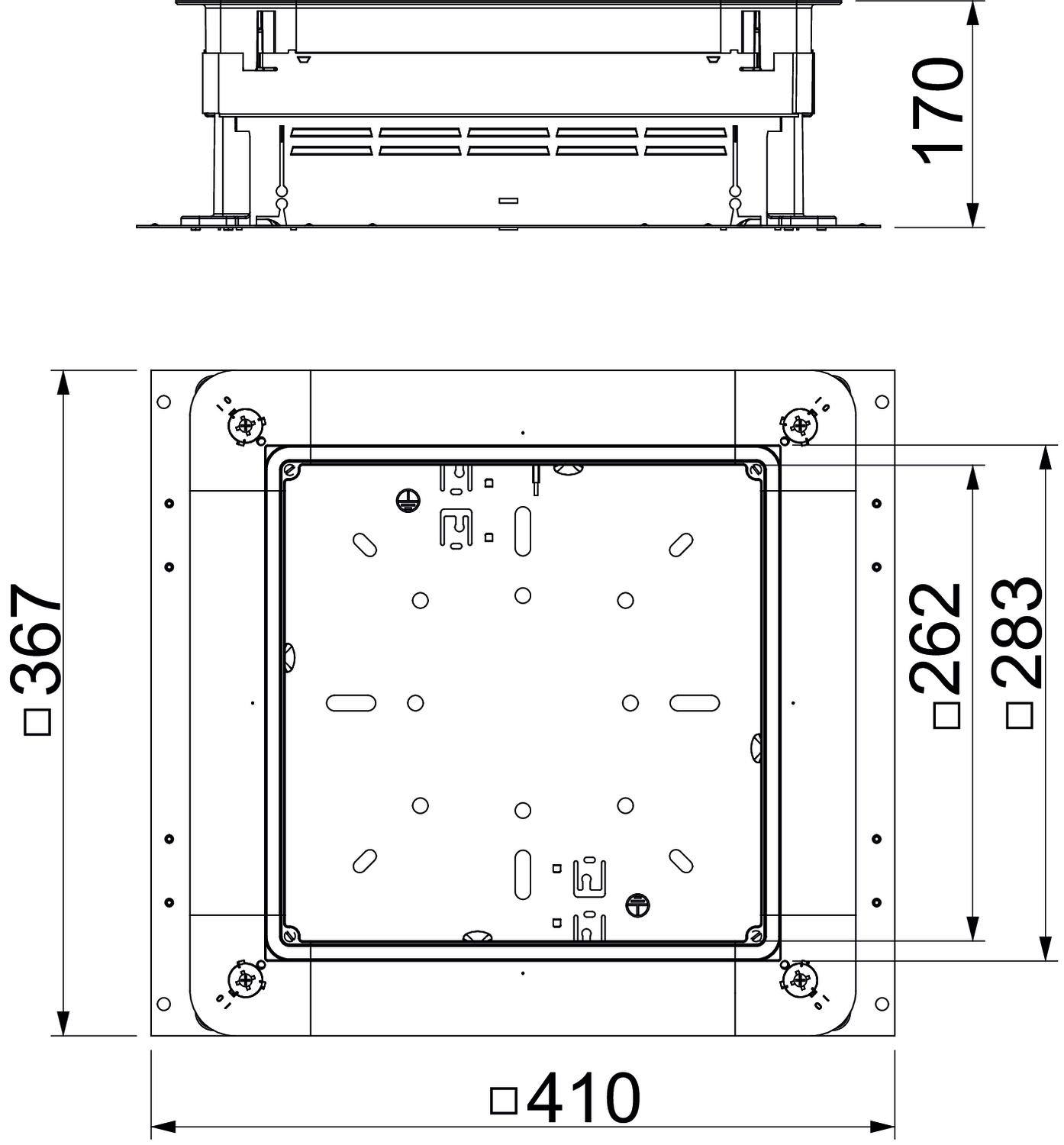

Dimensions
| Dimension A | 367 mm |
|---|---|
| Dimension B | 410 mm |
| Dimension b | 283 mm |
| Dimension a | 262 mm |
Environmental Data
8,0803 kg CO₂e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 8,0803 kg CO₂e / 1 Piece |
|---|
Accessories
Mounting accessories
System accessories
Article
Type
Item no.
Amount
Item no. 6288704
Protective conductor connection bracketType
8AWR
Smallest selling unit: 10 piece
10piece
piece
