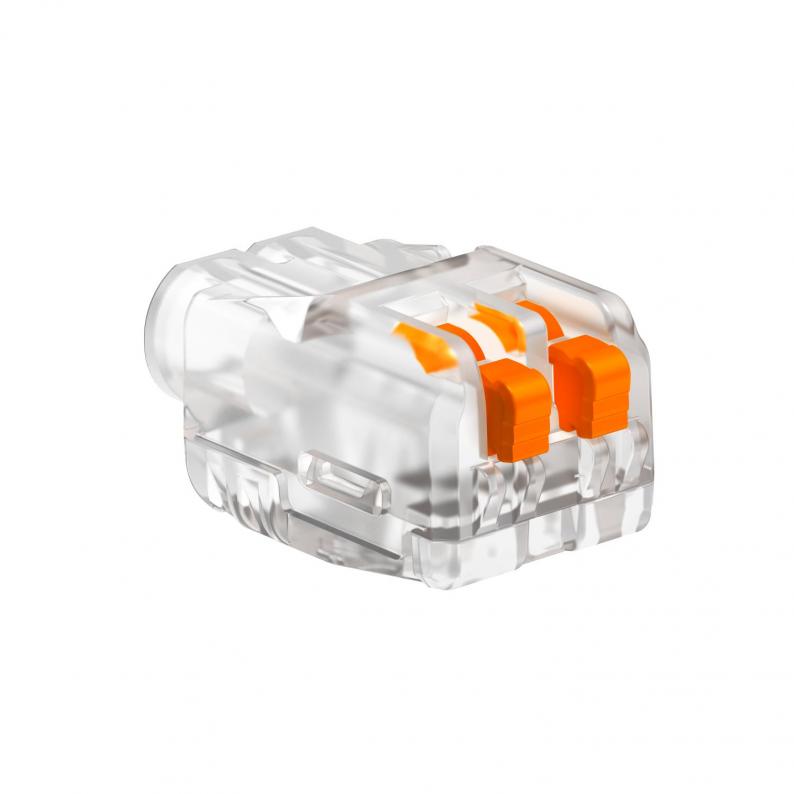

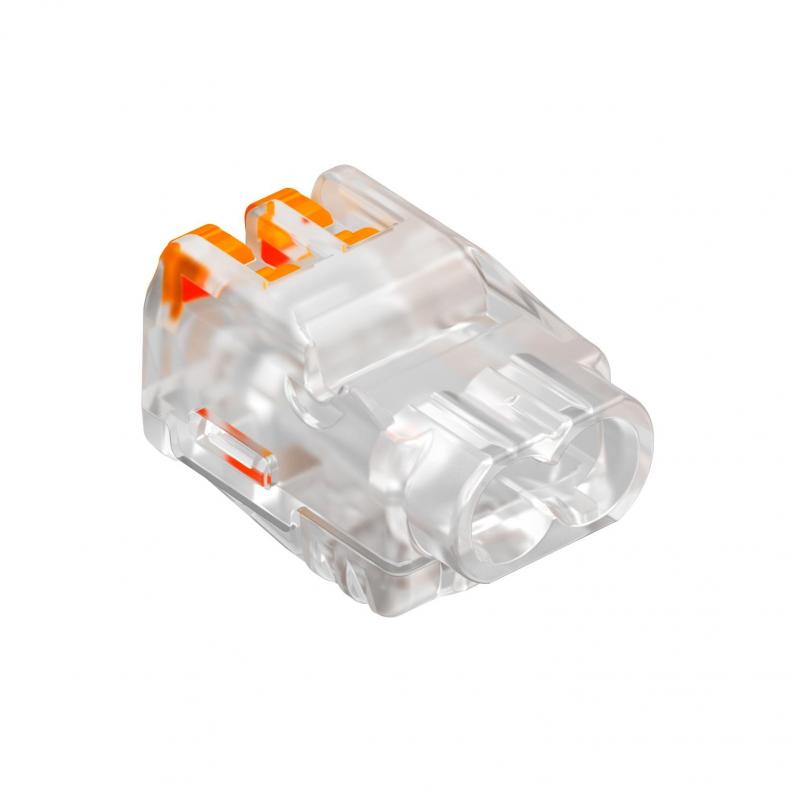

Universal plug-in terminal, 2-pole
Type 61 225 FL | Item no. 2054450 | EAN 4012196334629
Item no. / Type
2054450 / 61 225 FL
No. of terminals
2
Colour
Transparent
Smallest selling unit: 100 piece
100piece
Description
Tested according to EN 60998.
Screwless terminal to connect electrical conductors. The type of conductor can either be flexible, multi-wire or rigid.
If rigid conductors are used, an opening of the release lever is not necessary. The conductor can be plugged into the terminal directly.
To extract the conductors, simply open the release lever. The strand can then be easily pulled-out.
Nominal cross-section:
2 x 0.2 - 2.5 mm² multi-wire cables / single-wire conductors
Rated voltage 450 V.
Rated current 24 A.
Stripping length: 9 mm (+1 mm).
Inspection opening: Phase tester and testing pin (max. Ø 2 mm), very easily accessible on the top side of the terminal
Max. approved ambient temperature according to EN 60998: -5 to +85 °C.
Screwless terminal to connect electrical conductors. The type of conductor can either be flexible, multi-wire or rigid.
If rigid conductors are used, an opening of the release lever is not necessary. The conductor can be plugged into the terminal directly.
To extract the conductors, simply open the release lever. The strand can then be easily pulled-out.
Nominal cross-section:
2 x 0.2 - 2.5 mm² multi-wire cables / single-wire conductors
Rated voltage 450 V.
Rated current 24 A.
Stripping length: 9 mm (+1 mm).
Inspection opening: Phase tester and testing pin (max. Ø 2 mm), very easily accessible on the top side of the terminal
Max. approved ambient temperature according to EN 60998: -5 to +85 °C.
Technical data UL (USA)
Rated voltage 300 V
Clamping range AWG 24-12
Ambient temp. max. 105 °C
Technical data
Dimensions
| Length | 11,9 mm |
|---|---|
| Width | 21 mm |
| Height | 11,7 mm |
Technical data
| Pole number | 1 |
|---|---|
| Nominal current | 24 A |
| Nominal voltage | 450 V |
| Insulation material | Thermoplast |
| Suitable for solid conductors | yes |
| Suitable for flexible conductors | yes |
| Suitable for multi-wire conductors | yes |
| With actuating levers | yes |
| Connectable conductor cross-section, single-wire, max. | 2,5 mm² |
| Connectable conductor cross-section, single-wire, min. | 0,2 mm² |
| Connectable conductor cross-section, multi-wire, max. | 2,5 mm² |
| Connectable conductor cross-section, multi-wire, min. | 0,2 mm² |
| Nominal cross-section, max. | 2,5 mm² |
| Nominal cross-section, min. | 0,2 mm² |
| Cross-section | 2 x 0.2 - 2.5 mm² multi-wire cables / single-wire conductors mm² |
| No. of terminals | 2 |
| Permitted temperature range, max. | 85 °C |
| Permitted temperature range, min. | -5 °C |
| Flame-resistant | Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 850°C |
| Dimension | 0,2-2,5mm² |
| Material | Polycarbonate |
| Colour | Transparent |
