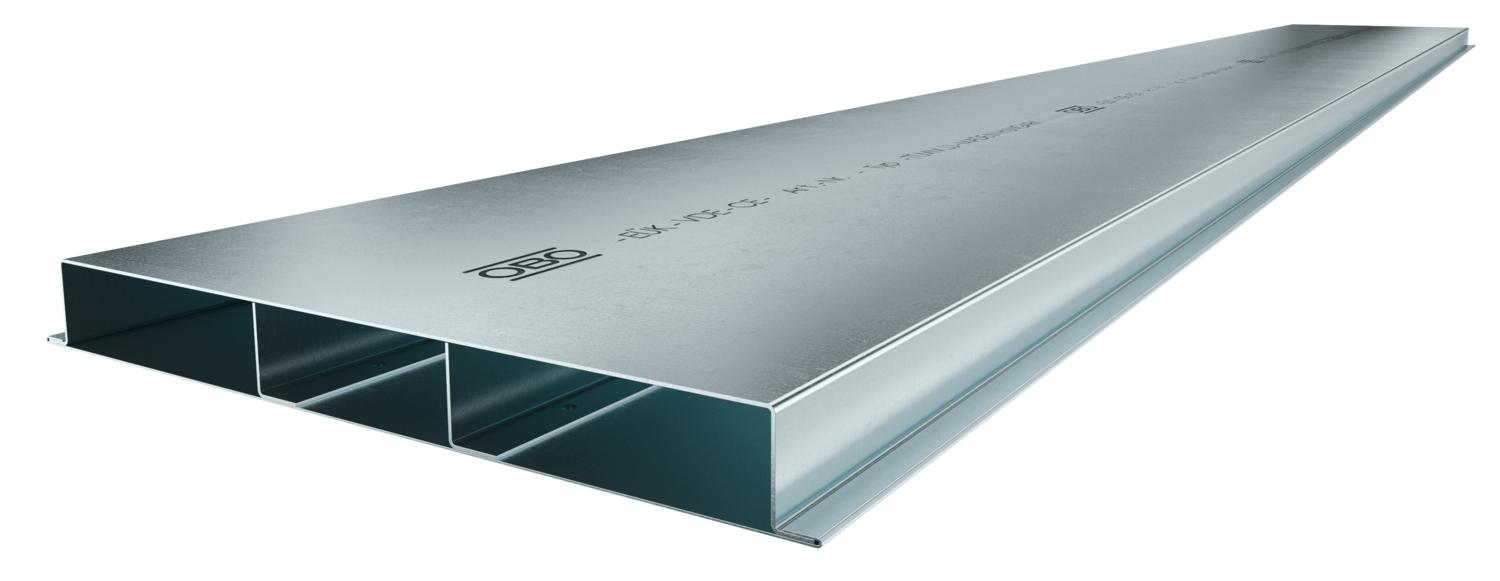

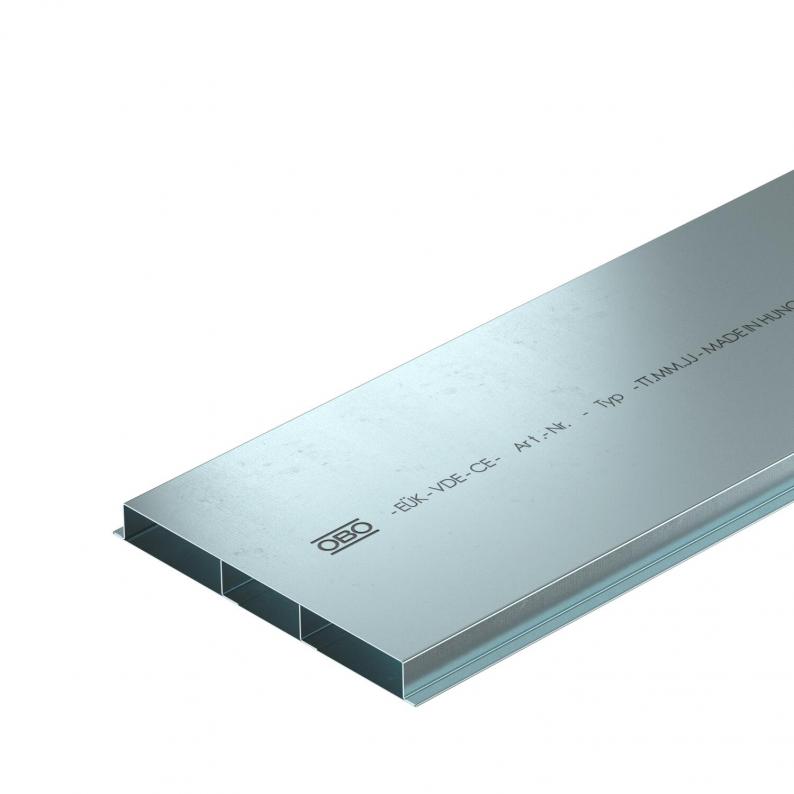

Underfloor installation duct, 3-compartment, duct height 28 mm
Type S3 25028
|Item no. 7400324
|EAN 4012195089339
Item no. / Type
Length
Width
Number of compartments
This item is a discontinued product!
Smallest selling unit: 2 m
2m
m
Description
Underfloor installation duct for laying cables under the floor.
Technical data

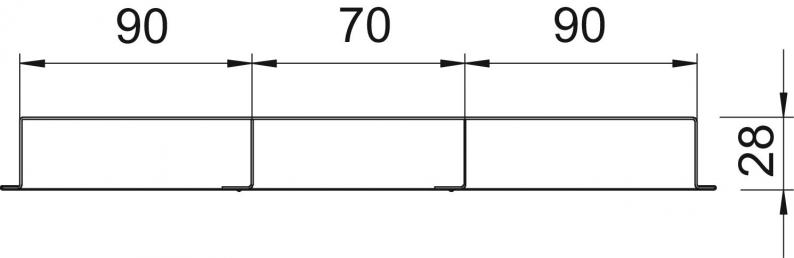

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 250 mm |
| Height | 28 mm |
| Dimension b | 70 mm |
| Dimension a | 90 mm |
| Dimension h | 28 mm |
Technical data
| Usable cross-section | 6370 mm² |
|---|---|
| Number of compartments | 3 St. |
| Number of fixed partitions | 2 |
| Cross-section, draw a | 2288 mm² |
| Cross-section, draw b | 1794 mm² |
| Decouplable | no |
| Floor plate | yes |
| Application area | Screed-covered |
| Removable cover | no |
| Duct height, min. | 28 mm |
| Dimension | 2000x250x28 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
10,0031 kg CO₂e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 10,0031 kg CO₂e / 1 Meter |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
KV3 25028
7400644
Smallest selling unit: 1 piece
1piece
piece
Item no. 7400644
Vertical bend, three-compartment, height 28 mmType
KV3 25028
Smallest selling unit: 1 piece
1piece
piece
Item no. 7400966
Connection shackle, height 28 mmType
VL 25028E
Smallest selling unit: 1 piece
1piece
piece
Downloads
0 selected
Data sheet (1)
Declarations (4)
Certificates (1)
Instructions and Aid (1)
Product images (3)
3D data downloads (2)
Tender specifications (1)
Variants
Type
Length
Width
Number of compartments
Item no.
S3 25028
2000
250
3
7400324
S3 35028
2000
350
3
7400336
Width
S3 25028
Item no.
7400324
Length
2000
Width
250
Number of compartments
3
S3 35028
Item no.
7400336
Length
2000
Width
350
Number of compartments
3
